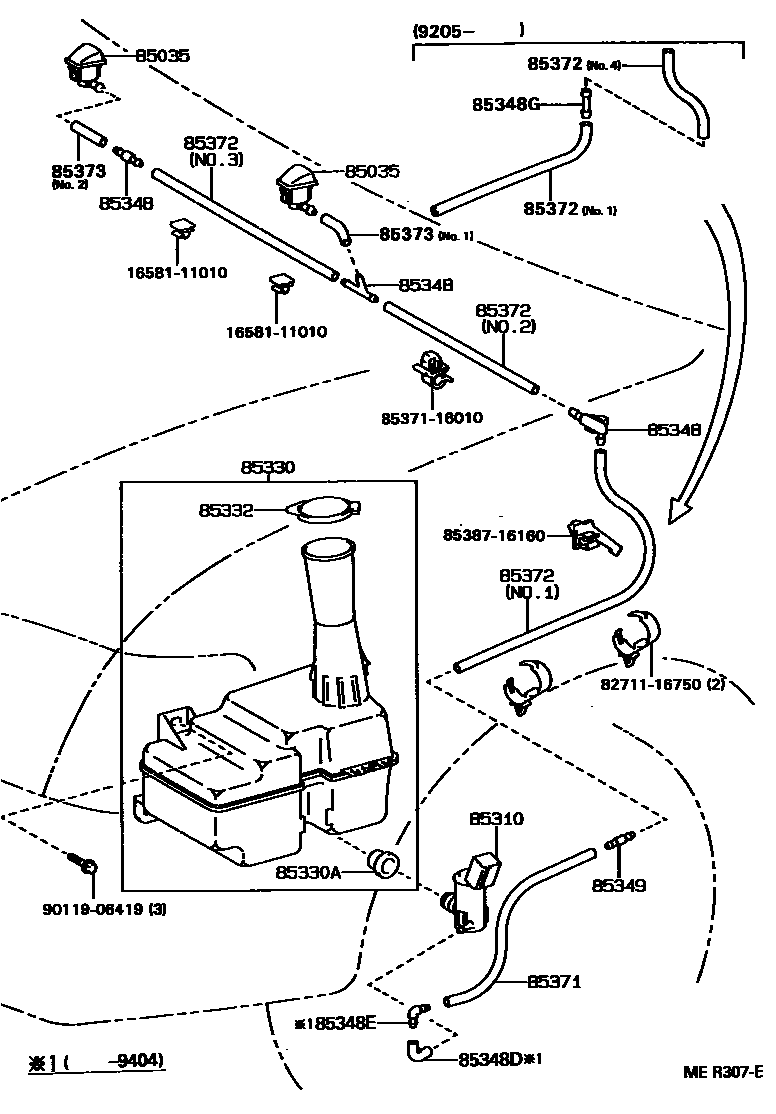

WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-16040iEL44199101-199508

sub85381-30020

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-20170iEL44199101-199205

main85310-20210iEL44199101-199508

sub85330-10280

main85330-12280iEL44..ALPHA199205-199508

85330JAR ASSY, WINDSHIELD WASHER

main85315-16070iEL44199101-199508

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089iEL44199101-199508

85332CAP, WINDSHIELD WASHER JAR

main85316-10190iEL44199101-199309

sub85316-16070

main85316-16070iEL44199309-199508

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85348-14390iEL44199101-199508

3 WAY

main85375-10260iEL44199101-199508

2 WAY

main85375-16160iEL44199101-199508

L JOINT

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85355-14481iEL44199101-199404

85348EJOINT, WINDSHIELD WASHER ELBOW, NO.2

main85355-20200iEL44199101-199404

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85376-50040iEL44199205-199508

85349JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122iEL44199101-199508

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33080iEL44199404-199508

main90099-33299iEL44199101-199404

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33080iEL44199205-199508

main90446-06013iEL44199101-199508

main90446-07001iEL44199205-199508

main90446-07012iEL44199101-199205

sub90099-33368

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080iEL44199101-199508

main90099-33299iEL44199101-199508

1658111010CLAMP, HOSE(FOR WATER HOSE)

main16581-11010

8271116750WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16750

8537116010HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-16010

8538716160CLAMP NO.1 (FOR WINDSEIELD WASHER)

main85387-16160

9011906419

main90119-06419

18 parts on this diagram · 1 diagram in section
