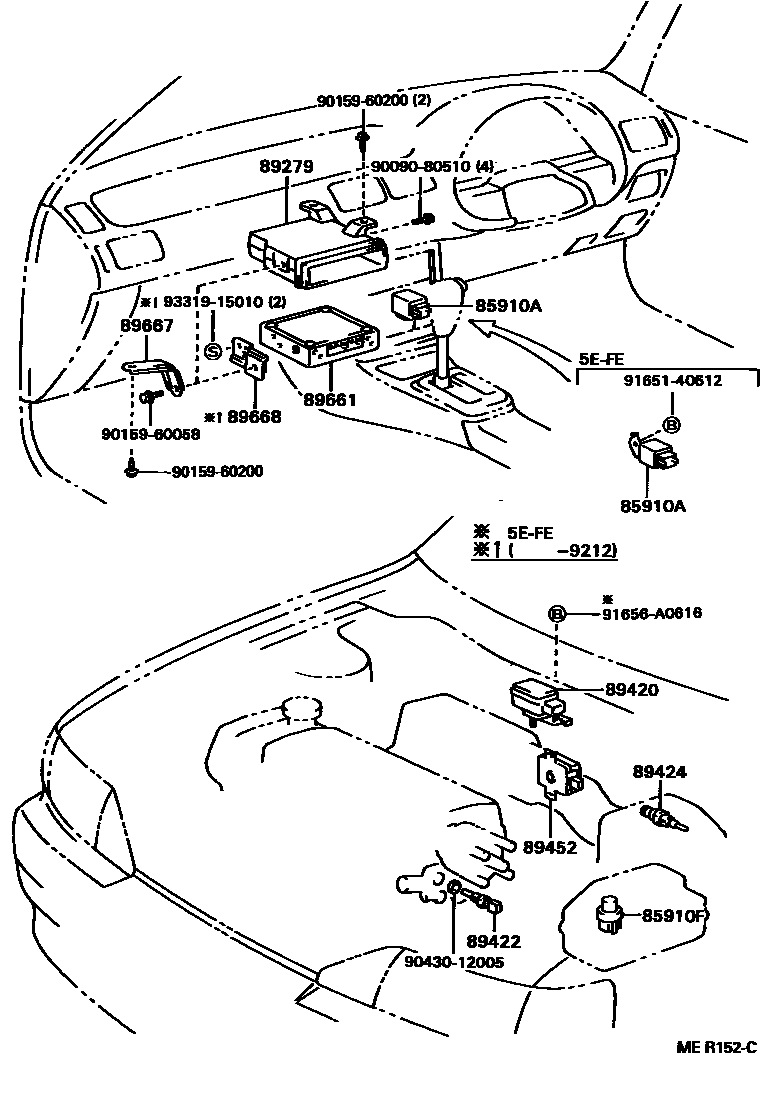

ELECTRONIC FUEL INJECTION SYSTEM

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main85910-12010iEL44..BETA199101-199409

main85910-16030iEL44..ALPHA199101-199409

85910FRELAY, COMPUTER (FOR EFI)

main90987-02004iEL44199101-199212

main90987-02009iEL44199212-199508

89279COVER, ENGINE CONTROL COMPUTER

main89279-16070iEL44199101-199212

main89279-16090iEL44199212-199508

89420SENSOR ASSY, VACUUM

main89420-16020iEL44..BETA199101-199508

main89420-16030iEL44..ALPHA199101-199508

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-20010iEL44199101-199508

89424SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)

main89424-12010iEL44199101-199508

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-12060iEL44..ALPHA;EL44..MTM..BETA199208-199508

main89452-14020iEL44..ALPHA;EL44..MTM..BETA199101-199208

main89452-22090iEL44..ATM..BETA199101-199508

89661COMPUTER, ENGINE CONTROL

main89661-16130iEL44..ATM..BETA199101-199212

main89661-16160iEL44..MTM..BETA199101-199212

main89661-16170iEL44..ALPHA199101-199212

main89661-16220iEL44..ALPHA199212-199508

main89661-16230iEL44..MTM..BETA199212-199508

main89661-16240iEL44..ATM..BETA199212-199508

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-16020iEL44199101-199212

main89667-16040iEL44199212-199508

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-16020iEL44199101-199212

9009080510

main90090-80510

9015960058

main90159-60058

9015960200

main90159-60200

9043012005

main90430-12005

9165140612

main91651-40612

91656A0616

main91656-A0616

9331915010

main93319-15010

17 parts on this diagram · 1 diagram in section
