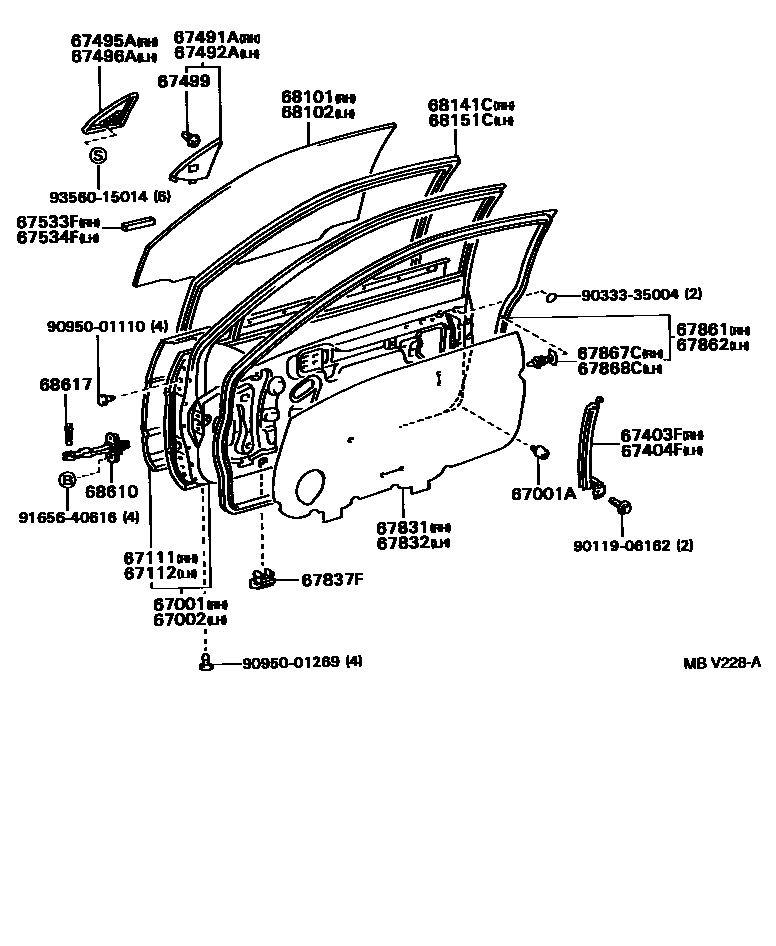

FRONT DOOR PANEL & GLASS

0001 1 0002 1

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-16450iEL44199209-199508

main67001-16570iEL44199101-199205

main67001-16571iEL44199205-199208

main67001-16572iEL44199208-199209

67001ACUSHION, FRONT DOOR PANEL

main90541-09031×2iEL44199101-199508

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-16400iEL44199209-199508

main67002-16510iEL44199101-199205

main67002-16511iEL44199205-199208

main67002-16512iEL44199208-199209

67111PANEL, FRONT DOOR, OUTER RH

main67111-16270iEL44199101-199508

67112PANEL, FRONT DOOR, OUTER LH

main67112-16230iEL44199101-199508

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-16080iEL44199101-199110

main67403-16081iEL44199110-199508

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-16080iEL44199101-199110

main67404-16081iEL44199110-199508

67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH

main67491-16180iEL44199101-199508

main67491-16200iEL44199212-199508

67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH

main67492-16180iEL44199101-199508

main67492-16200iEL44199101-199212

67495ACOVER, FRONT DOOR FRONT LOWER FRAME, UPPER RH

main67495-16110iEL44199101-199409

67496ACOVER, FRONT DOOR FRONT LOWER FRAME, UPPER LH

main67496-16110iEL44199101-199409

67499RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH

main67499-16010×2iEL44199101-199212

main67499-32010×2iEL44199101-199508

67533FPAD, FRONT DOOR LOWER FRAME GARNISH, RH

main67533-16050iEL44199101-199508

67534FPAD, FRONT DOOR LOWER FRAME GARNISH, LH

main67533-16050iEL44199101-199508

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-16320iEL44..ALPHA199101-199508

main67831-16370iEL44..ALPHA199212-199508

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-16190iEL44..ALPHA199101-199508

main67832-16250iEL44..ALPHA199101-199212

67837FSEAL, DOOR DUST PROOF

main67837-16030×4iEL44199101-199508

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-16280iEL44199101-199508

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-16280iEL44199101-199508

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67867-12150×20iEL44199411-199508

main67868-12050×20iEL44199101-199411

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67867-12150×20iEL44199411-199508

main67868-12050×20iEL44199101-199411

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68110-16080iEL44..BETA199212-199409

main68110-16100iEL44..ALPHA199101-199409

main68110-16101iEL44199409-199508

main68110-16111iEL44..ALPHA199101-199212

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68120-16080iEL44..BETA199212-199409

main68120-16100iEL44..ALPHA199101-199409

main68120-16101iEL44199409-199508

main68120-16111iEL44..BETA199101-199409

68141CRUN, FRONT DOOR GLASS, RH

main68141-16200iEL44199101-199508

68151CRUN, FRONT DOOR GLASS, LH

main68151-16030iEL44199101-199508

68610CHECK ASSY, FRONT DOOR

main68610-16060×2iEL44199101-199208

main68610-16080×2iEL44199208-199508

68617PIN, FRONT DOOR CHECK

main68617-12030×2iEL44199101-199410

main68617-20011×2iEL44199410-199508

9011906162

main90119-06162

9033335004

main90333-35004

9095001110

main90950-01110

9095001269

main90950-01269

9165640616

main91656-40616

9356015014

main93560-15014

33 parts on this diagram · 2 diagrams in section
