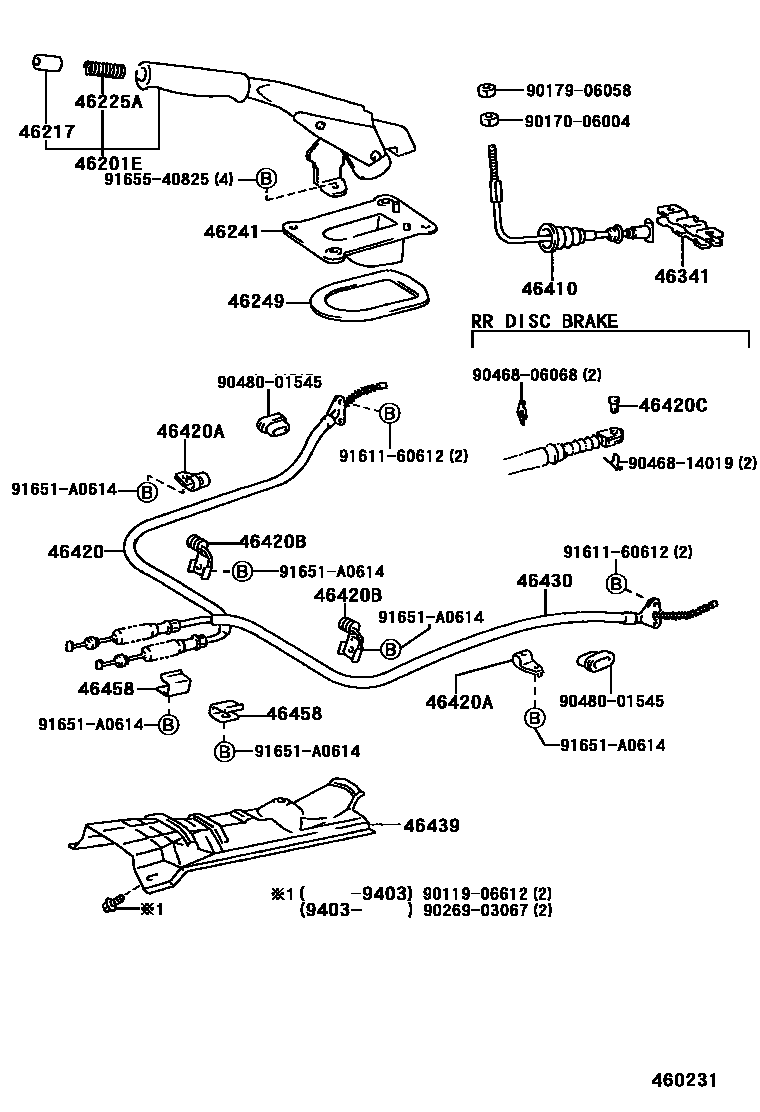

PARKING BRAKE & CABLE

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-16060-01iEL44199101-199409

BLACK,TRIM2#

main46201-16070-C0iEL44199409-199508

BLACK,TRIM2#

46217KNOB, PARKING BRAKE RELEASE ROD

main46217-12020-11iEL44199101-199212

BLACK,TRIM2#

main46217-12020-C0iEL44199212-199508

GRAY,TRIM2#

46225ASPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD)

main90501-10069iEL44199101-199508

46241BOOT, PARKING BRAKE LEVER

main46241-10030iEL44199101-199409

main46241-16040iEL44199409-199508

46249SHIELD, PARKING BRAKE HOLE

main46249-32010iEL44199101-199508

46341EQUALIZER, PARKING BRAKE

main46341-12020iEL44199208-199508

main46341-16020iEL44199101-199208

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-10080iEL44199101-199212

main46410-10100iEL44199212-199409

main46410-42010iEL44199409-199508

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-16120iEL44199101-199208

main46420-16150iEL44..BETA199101-199208

main46420-16160iEL44199208-199508

main46420-16180iEL44..BETA199208-199212

46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)

main90461-10641×2iEL44199101-199508

46420BCLAMP, NO.2(FOR PARKING BRAKE CABLE)

main90949-01585×2iEL44199101-199508

46420CPIN, W/HOLE(FOR PARKING BRAKE CABLE)

main90240-08040×2iEL44..BETA199101-199508

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-16120iEL44199101-199208

main46430-16150iEL44..BETA199101-199208

main46430-16160iEL44199208-199508

main46430-16180iEL44..BETA199212-199409

46439INSULATOR, PARKING BRAKE CABLE HEAT

main46439-16020iEL44199101-199403

main46439-16021iEL44199403-199508

46458RETAINER, CABLE

main46458-50010×2iEL44199101-199508

9011906612

main90119-06612

9017006004

main90170-06004

9017906058

main90179-06058

9026903067

main90269-03067

9046806068

main90468-06068

9046814019

main90468-14019

9048001545

main90480-01545

9161160612

main91611-60612

91651A0614

main91651-A0614

9165540825

main91655-40825

24 parts on this diagram · 1 diagram in section
