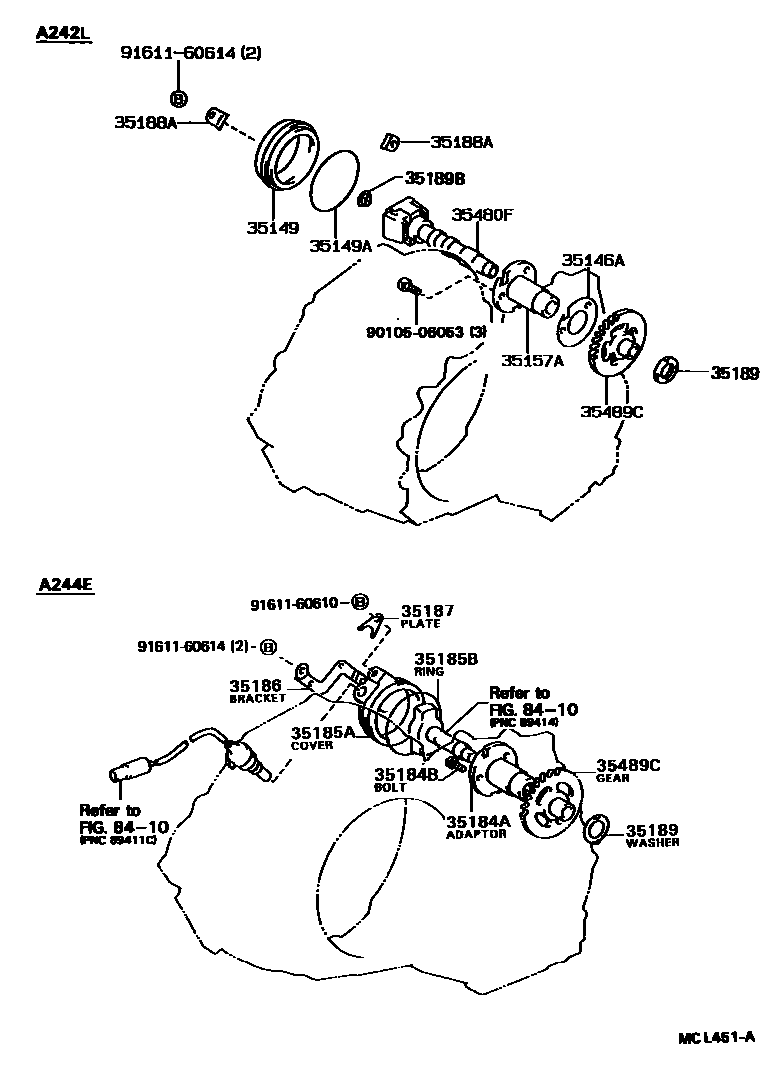

REAR OIL PUMP & GOVERNOR (ATM)

35146AGASKET, GOVERNOR BODY

main35146-20010iEL44..ATM..ALPHA199101-199508

35149COVER, GOVERNOR

main35149-20010iEL44..ATM..ALPHA199101-199508

35149ARING, O (FOR GOVERNOR COVER)

main90301-68001iEL44..ATM..ALPHA199101-199508

35157AADAPTER, GOVERNOR BODY

main35157-20031iEL44..ATM..ALPHA199101-199508

35184AADAPTER, SENSOR ROTOR

main35184-12010iEL44..ATM..BETA199101-199508

35184BBOLT(FOR SENSOR ROTOR ADAPTER)

main90105-06053×3iEL44..ATM..BETA199101-199508

35185ACOVER, SPEED SENSOR

main35185-12010iEL44..ATM..BETA199101-199508

35185BRING, O (FOR SPEED SENSOR COVER)

main90301-68001iEL44..ATM..BETA199101-199508

35186BRACKET, SPEED SENSOR COVER

main35186-12010iEL44..ATM..BETA199101-199508

35187PLATE, SPEED SENSOR LOCK

main35187-12010iEL44..ATM..BETA199101-199508

35188ABRACKET, GOVERNOR COVER

main35188-20010×2iEL44..ATM..ALPHA199101-199508

35189WASHER, GOVERNOR THRUST, NO.1

main35189-32011iEL44..ATM..ALPHA199101-199508

35189BWASHER, GOVERNOR THRUST, NO.2

main35189-12010iEL44..ATM199101-199508

35480FBODY ASSY, GOVERNOR

main35480-12030iEL44..ATM..ALPHA199101-199508

35489CGEAR, GOVERNOR DRIVEN

main35489-12010iEL44..ATM199101-199508

8410OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

→ Go to FIG 84-10

9010506053

main90105-06053

9161160610

main91611-60610

9161160614

main91611-60614

19 parts on this diagram · 1 diagram in section
