TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

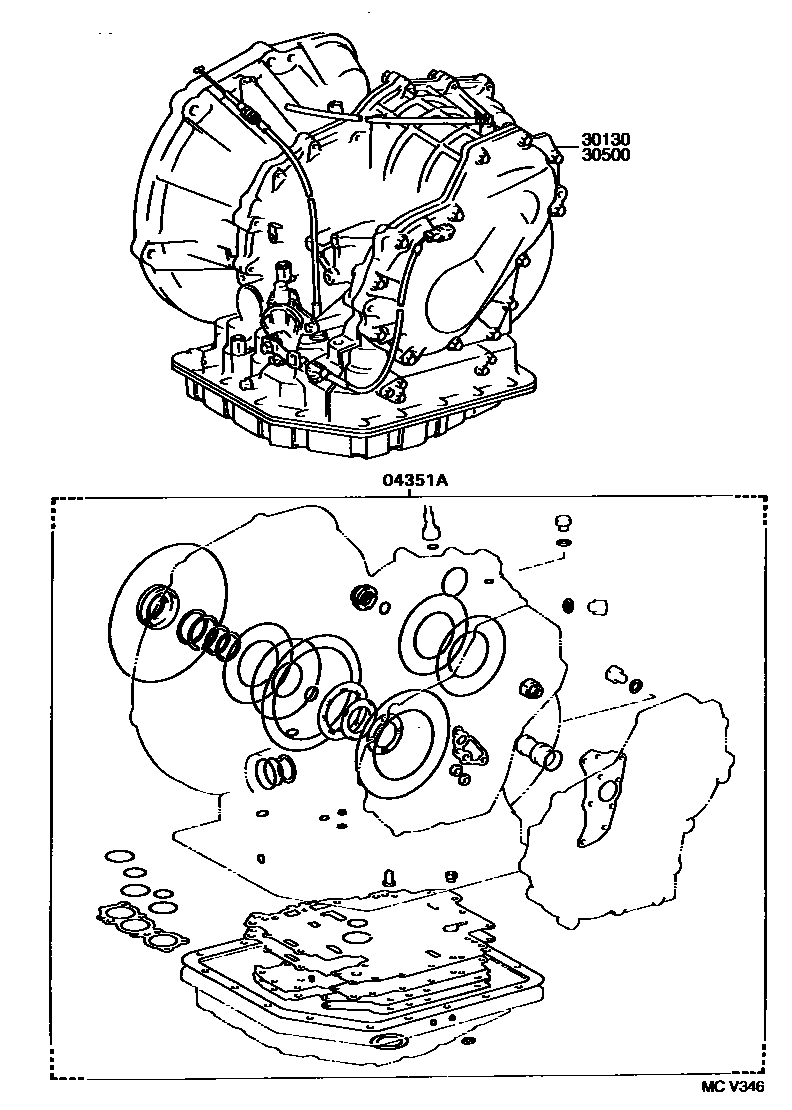

Parts diagram

04351AGASKET KIT, TRANSAXLE OVERHAUL(ATM)

main04351-10040i199101-199508

main04351-16060i199101-199409

main04351-16090i199409-199508

30130TRANSAXLE ASSY, REBUILT

main30130-16330i199101-199506

main30130-16331i199506-199508

main30130-16360i199101-199506

main30130-16361i199506-199508

30500TRANSAXLE ASSY, AUTOMATIC

main30500-16330i199101-199409

main30500-16360i199101-199409

main30500-16520i199409-199508

main30500-16530i199409-199508

3 parts on this diagram · 1 diagram in section
