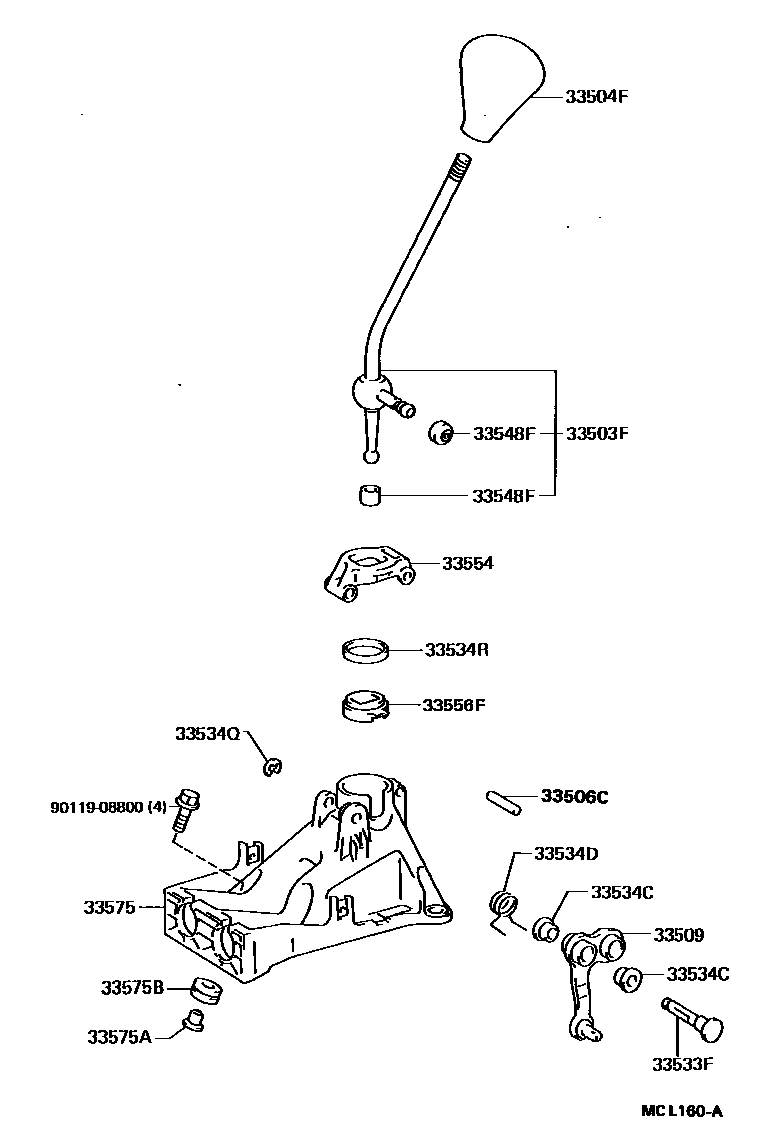

SHIFT LEVER & RETAINER
33503FLEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)
TSUDA
MANNO
33504FKNOB SUB-ASSY, SHIFT LEVER
33506CPIN, SHIFT LEVER RETAINER RING
L=62.5
33509CRANK SUB-ASSY, SELECTING BELL, NO.1
MANNO
33533FSHAFT, BELLCRANK (FOR FLOOR SHIFT)
L=70.5
L=78.5
33534CBUSH (FOR SELECTING BELLCRANK NO.1)
H=10
H=7
33534DSPRING, TORSION (FOR SELECTING BELLCRANK NO.1)
MANNO
TSUDA
33534QRING, E (FOR SELECTING BELLCRANK NO.1)
OD=16
33534RCUSHION (FOR SELECTING BELLCRANK NO.1)
OD=8.0
OD=40.0
33548FBUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)
TSUDA
MANNO,NO.2
MANNO,NO.1
33554CAP, SHIFT LEVER
sub33554-10041
33556FSEAT, TRANSMISSION SHIFT LEVER BALL
TSUDA
MANNO
33575RETAINER, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)
33575ABUSH, NO.1 (FOR CONTROL SHIFT LEVER RETAINER)
OD=26
33575BBUSH, NO.2 (FOR CONTROL SHIFT LEVER RETAINER)
MANNO
TSUDA
9011908800
main90119-08800
16 parts on this diagram · 6 diagrams in section
