Toyota 144110 — STARTER

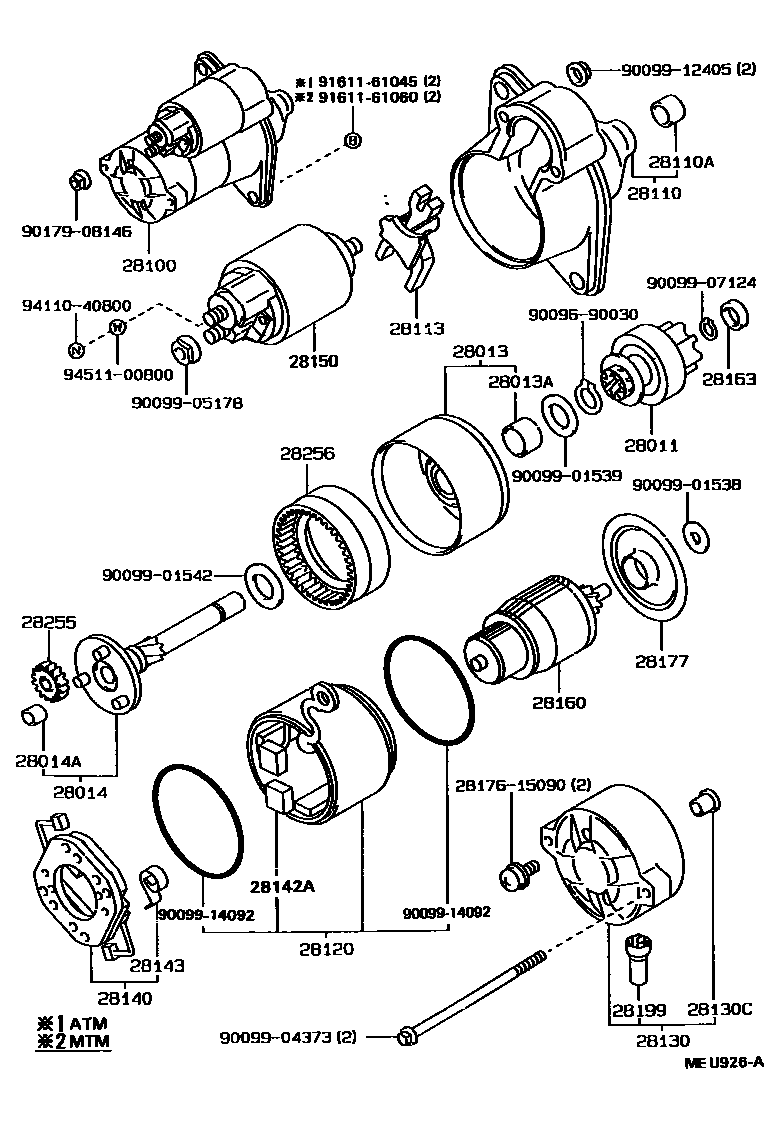

Parts diagram

28011CLUTCH SUB-ASSY, STARTER

28013BEARING, STARTER CENTER & SHOCK ABSORBER, NO.1

28013ABEARING, STARTER CENTER & SHOCK ABSORBER, NO.2

28014SHAFT SUB-ASSY, PLANET CARRIER

28014ABUSH OR BEARING, PLANET CARRIER SHAFT

28100STARTER ASSY

28110HOUSING ASSY, STARTER DRIVE

28110ABEARING(FOR STARTER HOUSING)

28113LEVER, STARTER PINION DRIVE

28120YOKE ASSY, STARTER

28130FRAME ASSY, STARTER COMMUTATOR END

28130CBEARING, STARTER FLANGE

28140HOLDER ASSY, STARTER BRUSH

28142ASTARTER KIT

28143SPRING, STARTER BRUSH

28150SWITCH ASSY, MAGNET STARTER

28160ARMATURE ASSY, STARTER

28163NUT OR COLLAR, PINION STOP, STARTER

28177PLATE(FOR STARTER ARMATURE)

28199COVER, STARTER

28255GEAR, PLANET

28256GEAR, STARTER INTERNAL

2817615090SCREW, STARTER

9009690030

9009901538

9009901539

9009901542

9009904373

9009905178

9009907124

9009912405

9009914092

9017908146

9161161045

9161161060

9411040800

9451100800

37 parts on this diagram · 2 diagrams in section

STARTER for Toyota 144110

This section contains 55 genuine Toyota parts for the STARTER system of the Toyota 144110. Key components include: CLUTCH SUB-ASSY, STARTER, BEARING, STARTER CENTER & SHOCK ABSORBER, NO.1, BEARING, STARTER CENTER & SHOCK ABSORBER, NO.2, SHAFT SUB-ASSY, PLANET CARRIER, BUSH OR BEARING, PLANET CARRIER SHAFT.
