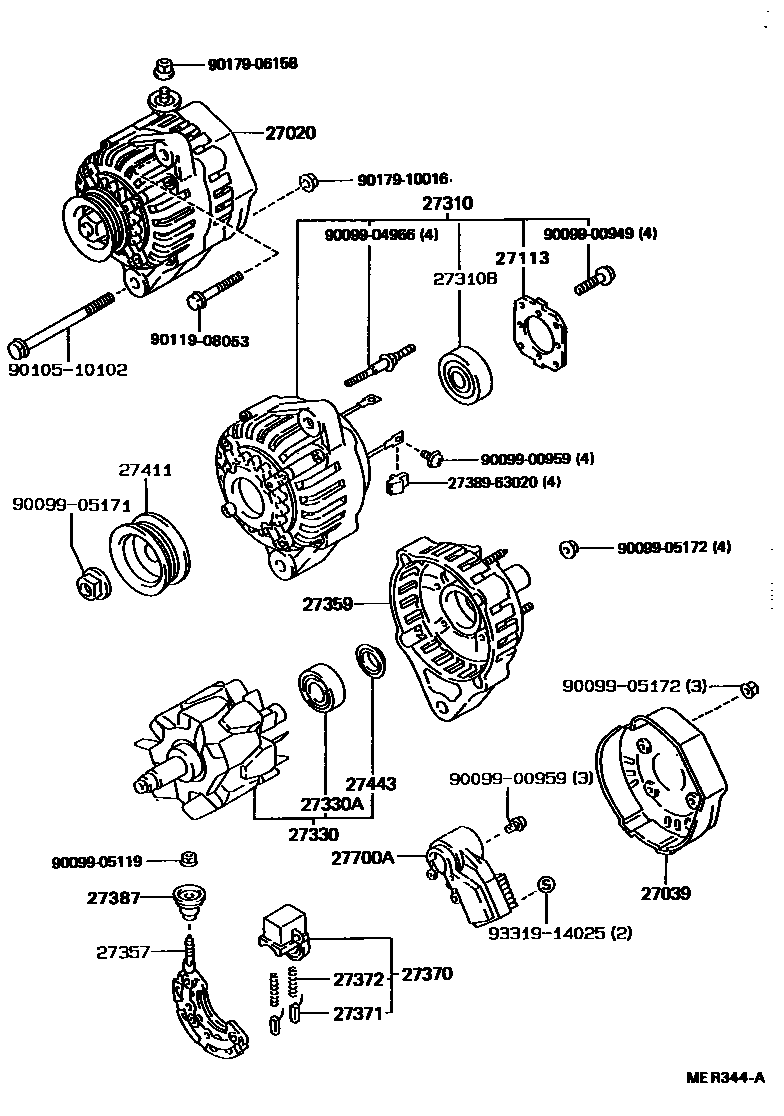

ALTERNATOR

0001 112V 70A 0002 112V 70A

27020ALTERNATOR ASSY

main27060-11120i5EF#..EL44..MTM199101-199212

sub27060-11200

main27060-11200i5EF#..EL44..ATM199101-199212

main27060-11270i5EF#..EL44..MTM199212-199508

main27060-11280i5EF#..EL44..ATM199212-199305

sub27060-11281

main27060-11281i5EF#..EL44..ATM199305-199508

27039COVER, ALTERNATOR REAR END

main27039-42010i5EF#..EL44..ATM199101-199212

sub27039-16310

main27039-55080i5EF#..EL44..ATM199212-199508

sub27039-70470

main27039-72010i5EF#..EL44..MTM199101-199212

sub27039-15170

main27039-73020i5EF#..EL44..MTM199212-199508

sub27039-16380

27113PLATE, BEARING RETAINER, ALTERNATOR

main27312-42010i5EF#..EL44..ATM199101-199508

main27312-70200i5EF#..EL44..MTM199101-199508

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-16102i5EF#..EL44..MTM199101-199105

sub27310-16103

main27310-16103i5EF#..EL44..MTM199105-199508

main27310-16270i5EF#..EL44..ATM199101-199508

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10178i5EF#..EL44..MTM199101-199508

main90099-10192i5EF#..EL44..ATM199101-199508

27330ROTOR ASSY, ALTERNATOR

main27330-72101i5EF#..EL44..MTM199101-199508

main27330-76030i5EF#..EL44..ATM199101-199508

sub27330-16390

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10140i5EF#..EL44199101-199508

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-55080i5EF#..EL44..ATM199212-199508

main27357-63020i5EF#..EL44..MTM199101-199508

main27357-74050i5EF#..EL44..ATM199101-199212

sub27357-74160

27359FRAME, ALTERNATOR RECTIFIER END

main27359-16180i5EF#..EL44..MTM199101-199508

sub27359-16181

sub27384-16380

main27359-16270i5EF#..EL44..ATM199101-199508

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-16011i5EF#..EL44..MTM199101-199105

sub27370-54450

main27370-54450i5EF#..EL44..MTM199105-199508

sub27370-58320

main27370-75060i5EF#..EL44..ATM199101-199508

27371BRUSH, ALTERNATOR

main27371-63020i5EF#..EL44..MTM199101-199105

sub27371-70300

main27371-70300i5EF#..EL44..MTM199105-199508

27372SPRING, ALTERNATOR BRUSH

main27372-63020i5EF#..EL44..MTM199101-199508

sub27372-87501

27387INSULATOR, TERMINAL

main27387-42020i5EF#..EL44..ATM199101-199508

main27387-70170i5EF#..EL44..MTM199101-199508

27411PULLEY, ALTERNATOR

main27411-11060i5EF#..EL44..ATM199101-199508

main27411-65010i5EF#..EL44..MTM199101-199508

27443COVER, ALTERNATOR BEARING

main27443-63020i5EF#..EL44199101-199508

27700AREGULATOR ASSY, GENERATOR

main27700-11030i5EF#..EL44199101-199212

sub27700-72090

main27700-11070i5EF#..EL44199212-199508

main27700-74030i5EF#..EL44..ATM199305-199508

2738963020INSULATOR, TERMINAL

main27389-63020

9009900949

main90099-00949

9009900959

main90099-00959

9009904966

main90099-04966

9009905119

main90099-05119

9009905171

main90099-05171

9009905172

main90099-05172

9010510102

main90105-10102

9011908053

main90119-08053

9017906158

main90179-06158

9017910016

main90179-10016

9331914025

main93319-14025

28 parts on this diagram · 2 diagrams in section
