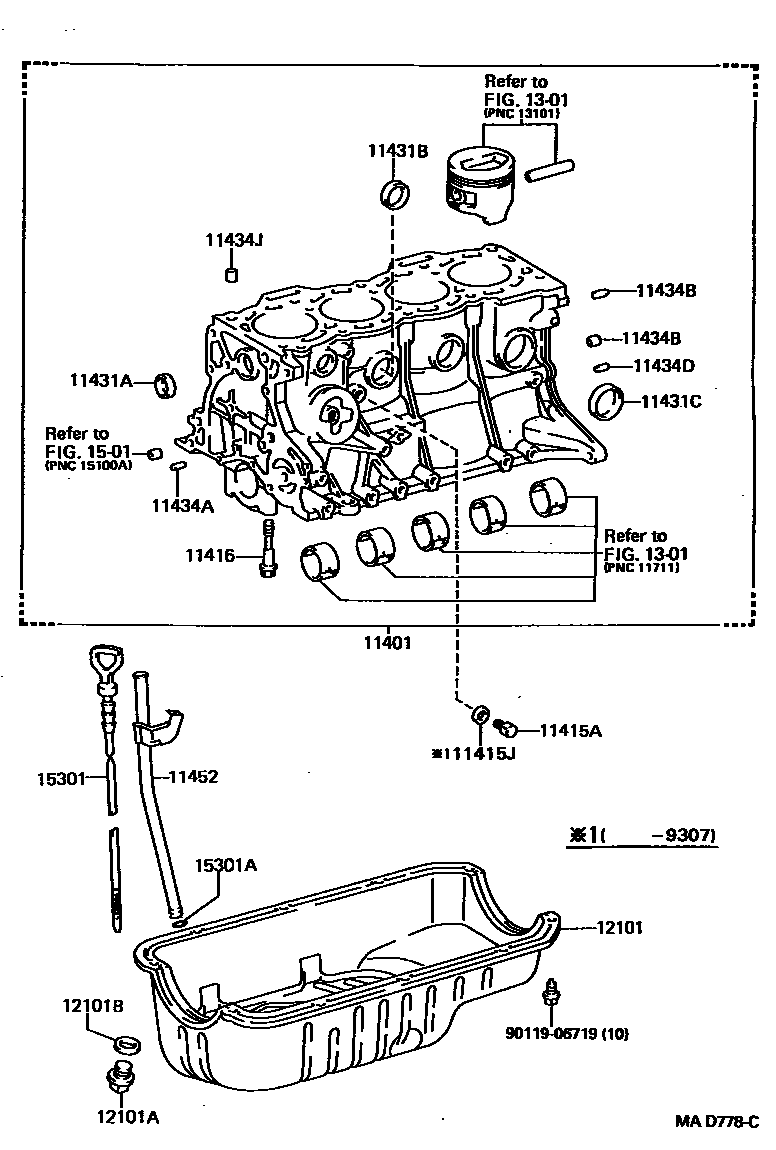

CYLINDER BLOCK

11401BLOCK SUB-ASSY, CYLINDER

main11401-19595i5EFHE..EL44199101-199212

sub11401-19596

main11401-19596i5EFHE..EL44199212-199307

sub11401-19597

sub90345-52001

main11401-19597i5EFHE..EL44199307-199407

sub11401-19598

sub12101-11012

sub15100-11071

main11401-19598i5EFHE..EL44199407-199508

sub11401-19599

main11401-19655i5EFE..EL44199101-199212

sub11401-19656

main11401-19656i5EFE..EL44199212-199307

sub11401-19657

sub90345-52001

main11401-19657i5EFE..EL44199307-199407

sub11401-19658

sub12101-11012

sub12101-11031

sub12101-11071

sub15100-11071

main11401-19658i5EFE..EL44199407-199508

sub11401-19659

11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)

main90341-12012i5EF#..EL44199101-199102

main90341-12026i5EF#..EL44199102-199307

sub90341-12012

main90345-52001i5EF#..EL44199307-199508

11415JGASKET(FOR DRAIN COCK)

main90430-13002i5EF#..EL44199101-199307

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90105-10007i5EF#..EL44199101-199508

11431APLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)

main96411-42500i5EF#..EL44199101-199508

11431BPLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)

main96411-43000i5EF#..EL44199101-199508

11431CPLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)

main96411-43500i5EF#..EL44199101-199508

11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)

main90250-06068i5EF#..EL44199101-199508

11434BPIN, STRAIGHT(FOR CLUTCH HOUSING SET)

main90250-10017i5EF#..EL44199101-199508

main90253-15003i5EF#..EL44199101-199508

11434DPIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)

main90250-06068i5EF#..EL44199101-199508

11434JPIN, RING (FOR CYLINDER HEAD SET)

main90253-12001i5EF#..EL44199101-199508

11452GUIDE, OIL LEVEL GAGE

main11452-11040i5EF#..EL44199101-199508

12101PAN SUB-ASSY, OIL

main12101-11010i5EFHE..EL44199101-199211

sub12101-11011

main12101-11011i5EFHE..EL44199211-199407

sub12101-11012

main12101-11012i5EFHE..EL44199407-199409

main12101-11030i5EFE..EL44199101-199407

sub12101-11031

main12101-11031i5EFE..EL44199407-199409

main12101-11060i5EF#..EL44199409-199508

12101APLUG(FOR OIL PAN DRAIN)

main90341-12012i5EF#..EL44199101-199102

main90341-12026i5EF#..EL44199102-199508

sub90341-12012

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-12027i5EF#..EL44199101-199302

sub90430-12031

main90430-12031i5EF#..EL44199302-199508

1301

1501

15301GAGE SUB-ASSY, OIL LEVEL

main15301-11040i5EF#..EL44199101-199409

main15301-11050i5EF#..EL44199409-199508

15301ARING, O(FOR OIL LEVEL GAGE)

main96711-19010i5EF#..EL44199101-199506

main96721-19010i5EF#..EL44199506-199508

9011906719

main90119-06719

20 parts on this diagram · 1 diagram in section
