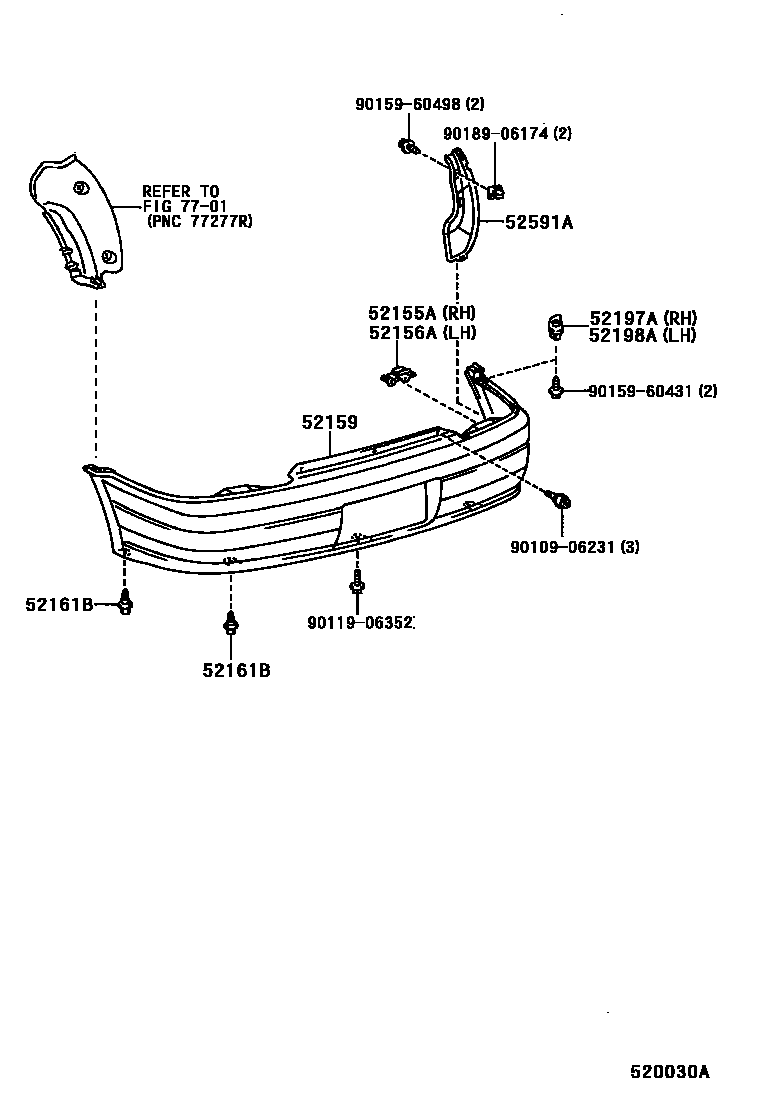

REAR BUMPER & BUMPER STAY
52155ASUPPORT, REAR BUMPER SIDE, RH
52156ASUPPORT, REAR BUMPER SIDE, LH
52159COVER, REAR BUMPER
SUPER WHITE 2,040
BLUISH SILVER ME.,1A0
BLACK ME,205
SUPER RED 2,3E5
MAGENTA MC.,3L3
DK.GREEN M.M.,6N7
GREEN M.M.,6P6
DK.BLUE M.M.,8K0
LIGHT MARINE BLUE MM,8K1
DK.BLUE M.M.,8L3
SUPER WHITE 2,040
BLUISH SILVER ME.,1A0
BLACK ME,205
SUPER RED II,3E5
PL.YELLOW OP,574
GREEN M.M.,6P6
DK.BLUE M.M.,8L3
52161BPIECE, REAR BUMPER
52197ABRACKET, REAR BUMPER SEAL, RH
52198ABRACKET, REAR BUMPER SEAL, LH
52591ASEAL, REAR BUMPER
7701FUEL TANK & TUBE
9010906231
main90109-06231
9011906352
main90119-06352
9015960431
main90159-60431
9015960498
main90159-60498
9018906174
main90189-06174
13 parts on this diagram · 2 diagrams in section
