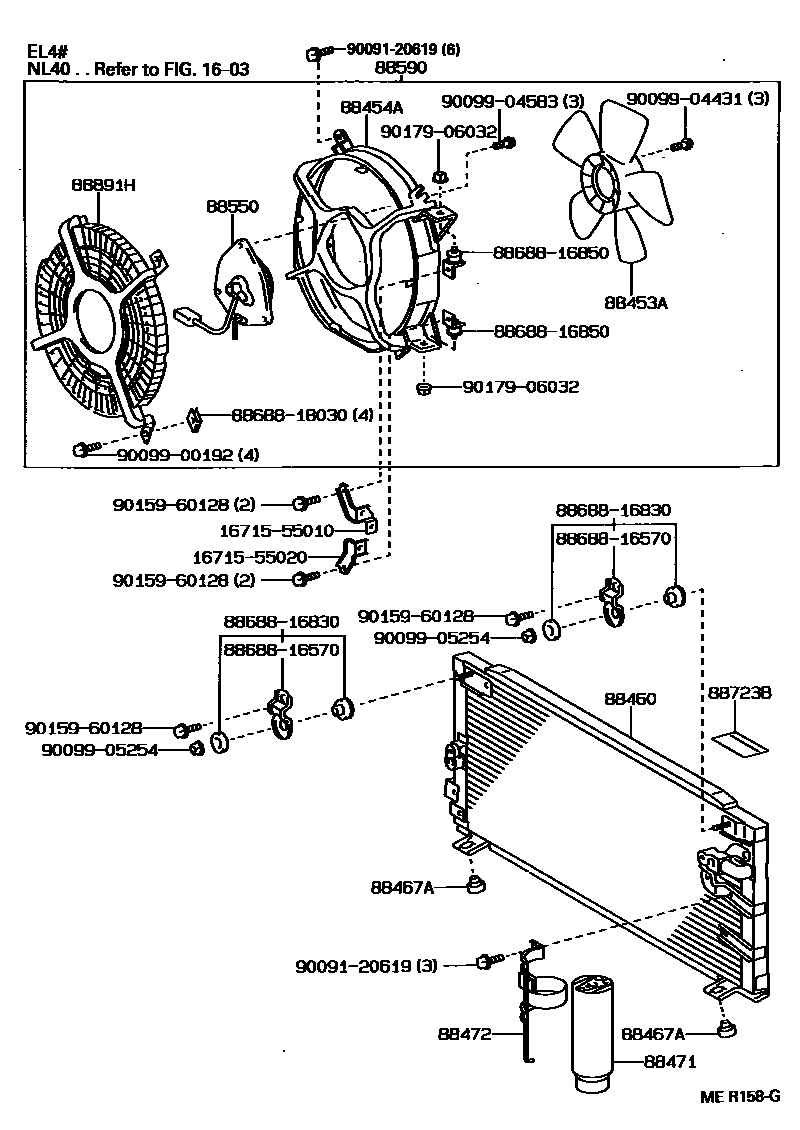

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1 0004 1DEALER OPTION 0005 1MAKER OPTION 0006 1 0007 1

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

88453AFAN, COOLING

main16361-55040iEL41..3FC199009-199409

main88453-10020iEL4#..4F,4FC,5F199009-199409

88454ASHROUD, FAN

main16711-55110iEL41..3FC199009-199409

main88454-16110iEL4#..4F,4FC,5F199009-199409

88460CONDENSER ASSY, COOLER

main88460-16240iEL4#199009-199208

main88460-16250iNL40..4FC; NL40..5F199009-199208

main88460-16300iEL4#199208-199308

main88460-16301iEL4#199308-199409

main88460-16320iNL40..4FC; NL40..5F199208-199308

main88460-16321iNL40..4FC; NL40..5F199308-199409

88467ACUSHION, COOLER CONDENSER, NO.2

main88467-10020×2iEL4#;NL40..4FC; NL40..5F199009-199208

main88467-16090×2iEL43,45..SR,ZS199208-199409

88471TANK, RECEIVER AIR CONDITIONER

main88471-16040iNL40..5F199009-199208

main88471-34010iEL4#;NL40..4FC; NL40..5F199308-199409

88472BRACKET, RECEIVER TANK, NO.1

main88472-16110iEL4#;NL40..4FC; NL40..5F199009-199208

main88472-16120iEL43,45..SR,ZS199208-199409

88550MOTOR ASSY, BLOWER (FOR CONDENSER)

main16363-55020iEL41..3FC199009-199409

main88550-10050iEL4#..4F,4FC,5F199009-199409

88590BLOWER ASSY, W/SHROUD

main16370-55030iEL41..3FC199009-199409

main88590-16040iEL4#..4F,4FC,5F199009-199409

88723BLABEL, COOLER SERVICE CAUTION

main88723-16030iEL4#;NL40..4FC; NL40..5F199308-199409

main88723-20010iNL40..5F199208-199308

main88723-20030iEL41..3FC199405-199409

SCROLL COMPRESSOR

88891HCOVER, COOLER, NO.1

main88891-16040iEL4#199009-199409

1671555010BRACKET, FAN SHROUD

main16715-55010

1671555020BRACKET, FAN SHROUD

main16715-55020

8868816570BRACKET, COOLER DIAPHRAGM

main88688-16570

8868816830BRACKET, COOLER DIAPHRAGM

main88688-16830

8868816850BRACKET, COOLER DIAPHRAGM

main88688-16850

8868818030BRACKET, COOLER DIAPHRAGM

main88688-18030

9009120619

main90091-20619

9009900192

main90099-00192

9009904431

main90099-04431

9009904583

main90099-04583

9009905254

main90099-05254

9015960128

main90159-60128

9017906032

main90179-06032

24 parts on this diagram · 7 diagrams in section
