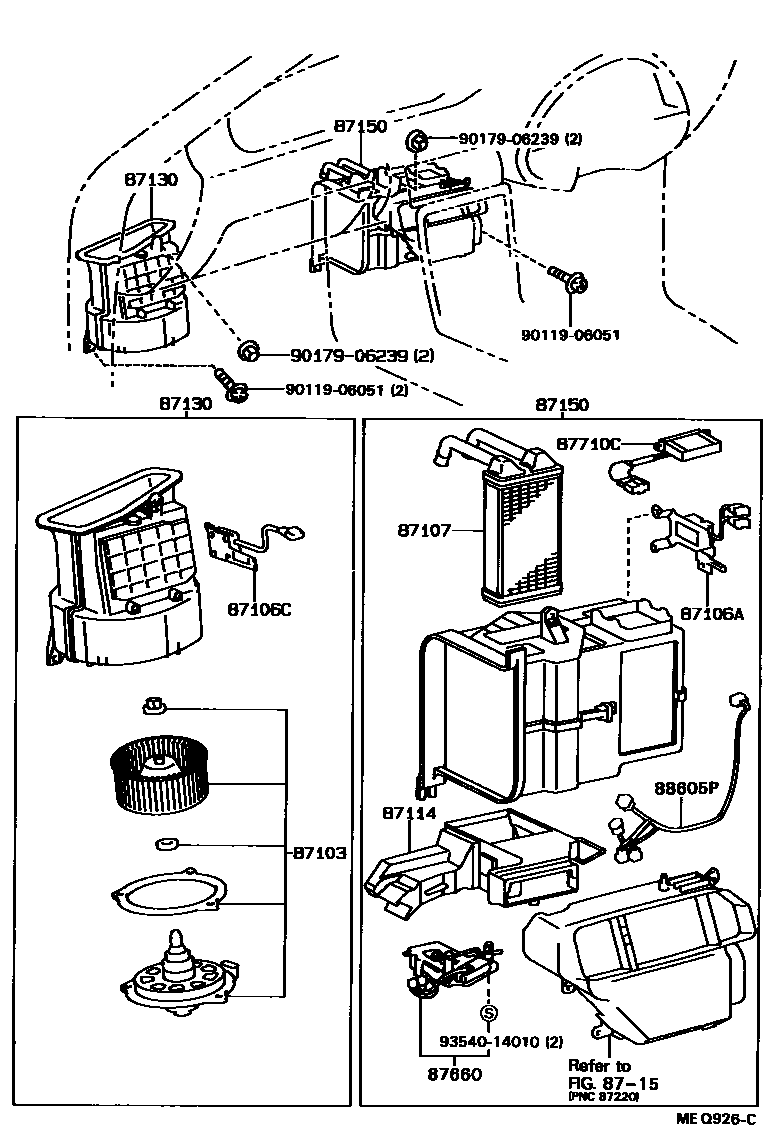

HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

0001 1 0002 1

87103MOTOR SUB-ASSY, HEATER BLOWER, W/FAN

main87103-17010iEL4#,NL40199009-199409

87106ASERVO SUB-ASSY, DAMPER

main87106-16010iEL43..EFIS199009-199208

main87106-16030iEL43,45..SR; EL43..EFIS199208-199409

87106CSERVO SUB-ASSY, DAMPER(FOR BLOWER)

main87106-16020iEL43..EFIS199009-199208

87107UNIT SUB-ASSY, HEATER RADIATOR

main87107-16190iEL4#199009-199409

main87107-16200iEL4#199009-199409

main87107-16210iNL40199009-199409

main87107-16220iNL40199009-199409

87114COVER, HEATER

main87114-16050iEL4#,NL40199009-199409

main87114-16060iEL4#,NL40199009-199409

87130BLOWER ASSY, HEATER, FRONT

main87130-16140iEL43..EFIS199009-199409

main87130-16150iEL4#,NL40..DSL,EFI199009-199409

8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

→ Go to FIG 87-15

87150RADIATOR ASSY, HEATER

main87150-16270iEL4#..EFI199009-199409

main87150-16280iEL4#..EFI199009-199409

main87150-16290iEL43..EFIS199009-199208

main87150-16300iEL43..EFIS199009-199208

main87150-16310iNL40199009-199409

main87150-16320iNL40..4FC199009-199409

main87150-16330iNL40..5F199009-199409

main87150-16370iEL43,45..SR; EL43..EFIS199208-199409

main87150-16380iEL43,45..SR; EL43..EFIS199208-199409

87660SERVO ASSY, AIR CONDITIONER

main88660-16030iNL40..4FC;EL4#..LIM,SR,WIN,ZS; NL40..5F199009-199208

main88660-16040iEL43,45..SR; NL40..4FC;EL4#..LIM,WIN,ZS; NL40..5F199208-199409

87710CHEATER ASSY, QUICK

main87710-10020iNL40..5F199009-199409

88605PHARNESS SUB-ASSY, AIR CONDITIONER WIRING

main88605-1G650iEL43,45..SR; EL43..EFIS199208-199409

9011906051

main90119-06051

9017906239

main90179-06239

9354014010

main93540-14010

14 parts on this diagram · 2 diagrams in section
