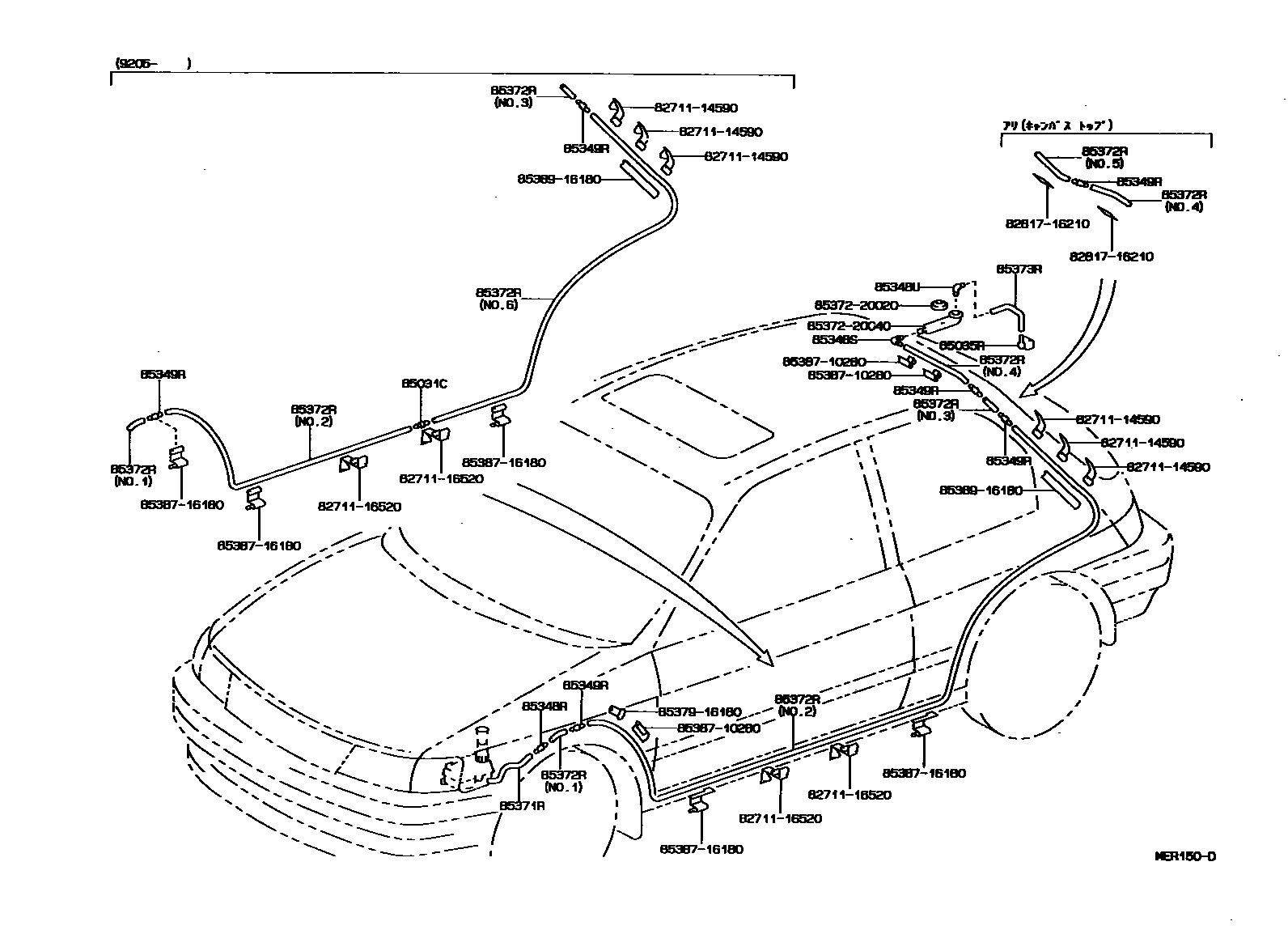

REAR WASHER

0001 1 0002 1

85031CVALVE SUB-ASSY, WASHER

main85031-90A00iEL4#,NL40199205-199409

85035RNOZZLE SUB-ASSY, REAR WASHER

main85391-16010iEL4#,NL40199009-199409

85348RJOINT, REAR WASHER HOSE, NO.1

main85349-89122iEL4#,NL40199009-199409

85348SJOINT, REAR WASHER ELBOW, NO.1

main85355-20200iEL4#,NL40199009-199409

85348UJOINT, REAR WASHER HOSE, NO.3

main85355-20200iEL4#,NL40199009-199409

85349RJOINT, REAR WASHER HOSE, NO.5

main85349-89122iEL43..EFIS199009-199409

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main90446-07001iEL4#,NL40199009-199409

85372RHOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)

main90099-33080iEL4#,NL40199009-199208

main90099-33080iEL4#,NL40199208-199409

main90099-33511iEL4#,NL40199009-199205

main90099-59053iEL4#,NL40..DSL,EFI199208-199409

main90099-59058iEL4#,NL40199205-199409

main90099-59080iEL4#,NL40199205-199208

main90446-07001iEL45;EL41,43..LIM,SR,ZS199009-199409

main90446-07001iEL4#,NL40199208-199409

main90446-07001iEL4#,NL40199009-199409

main90446-07001iEL4#,NL40199009-199409

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90099-33185iEL4#,NL40199009-199409

8271114590WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-14590

8271116520WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16520

8281716210PROTECTOR, WIRING HARNESS, NO.1

main82817-16210

8537220020HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main85372-20020

8537220040HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main85372-20040

8537916180JOINT

main85379-16180

8538710280CLAMP NO.1 (FOR WINDSEIELD WASHER)

main85387-10280

8538716180CLAMP NO.1 (FOR WINDSEIELD WASHER)

main85387-16180

8538916180PACKING, WINDSHIELD WASHER HOSE, NO.1

main85389-16180

18 parts on this diagram · 2 diagrams in section
