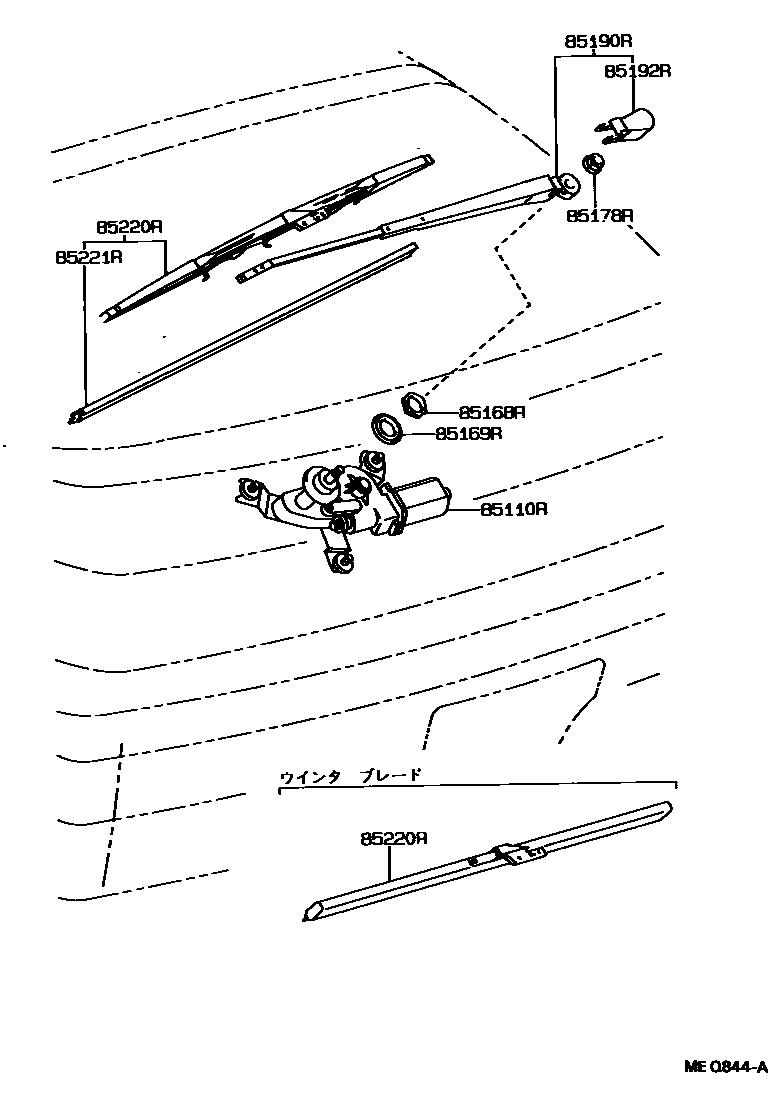

REAR WIPER

85110RMOTOR ASSY, REAR WIPER

main85130-16390iEL4#,NL40199009-199409

85168RNUT, REAR WIPER LINK PIVOT, NO.1

main90099-05157iEL4#,NL40199009-199409

85169RWASHER, REAR WIPER LINK PIVOT, NO.1

main85134-16390iEL4#,NL40199009-199409

85178RNUT (FOR REAR WIPER ARM SETTING)

main90176-06024iEL41,NL40..TX,WIN199009-199409

main90176-06024iEL43..EFIS199009-199409

main90179-06158iEL43..EFIS199009-199409

main90179-06158iEL41,NL40..TX,WIN199009-199409

85190RARM ASSY, REAR WIPER

main85241-16010iEL43..EFIS199009-199111

sub85241-16011

main85241-16011iEL45;EL41,43..LIM,SR199111-199409

main85241-16011iEL43..EFIS199111-199409

main85241-16020iEL43..EFIS199009-199111

sub85241-16021

main85241-16021iEL45;EL41,43..LIM,SR199111-199409

main85241-16021iEL43..EFIS199111-199409

85192RCOVER, REAR WIPER ARM

main85192-13060iEL4#,NL40199009-199409

85220RBLADE ASSY, REAR WIPER

main85220-16441iEL4#,NL40199009-199111

main85242-16010iEL41,45,NL40..TX,WIN199009-199111

sub85242-16011

main85242-16011iEL45;EL41,43..LIM,SR,ZS199111-199211

sub85242-16012

main85242-16012iEL41,NL40..TX,WIN199211-199409

sub85242-16030

main85291-16040iEL4#..LIM,SR,ZS199009-199409

85221RBLADE, REAR WIPER

main85221-16080iEL4#,NL40199009-199111

main85243-16020iEL4#,NL40199111-199211

sub85243-32010

main85243-32010iEL4#,NL40199211-199409

sub85214-22360

8 parts on this diagram · 1 diagram in section
