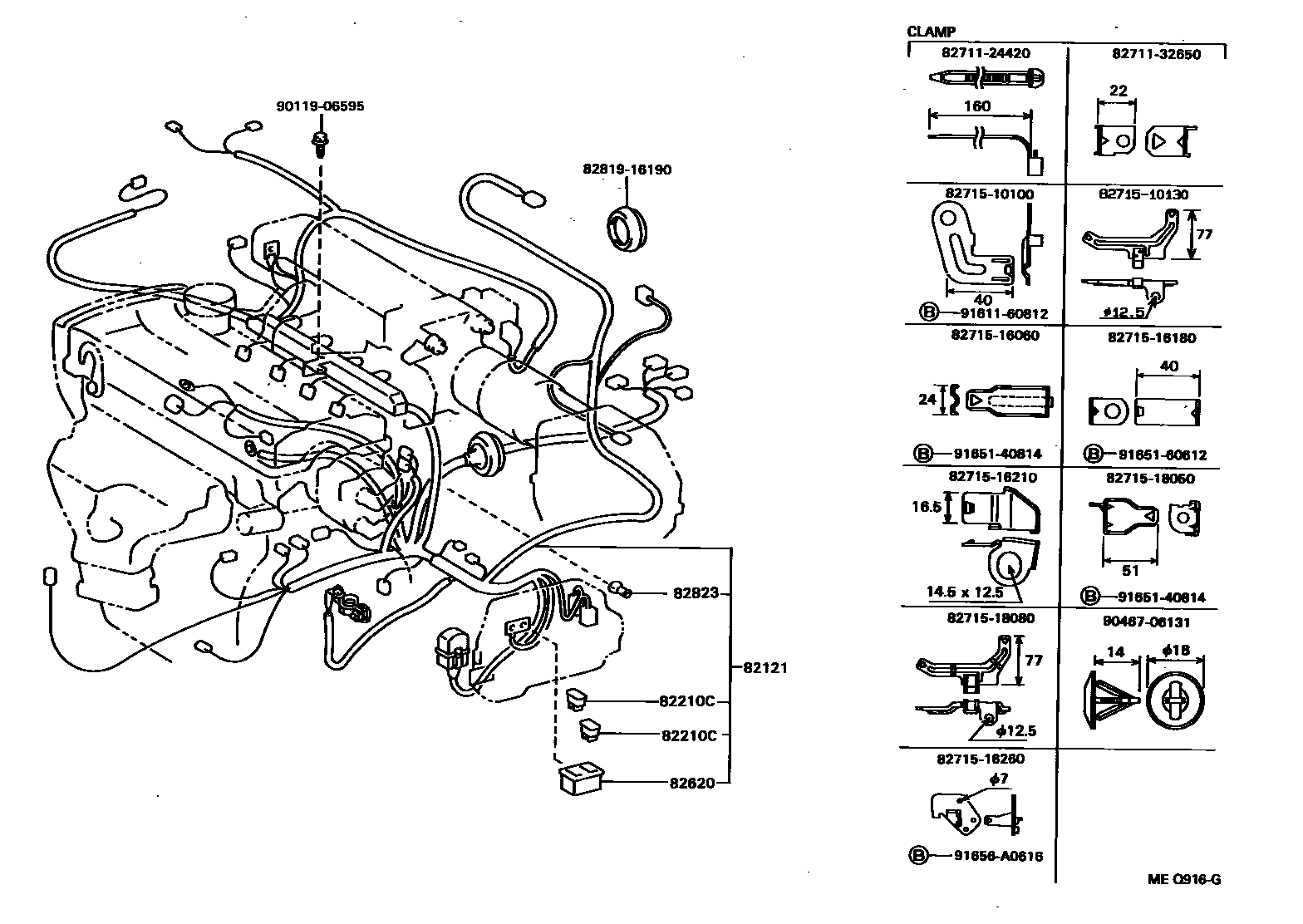

WIRING & CLAMP

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

82121WIRE, ENGINE

main82121-16500iEL41..4F199208-199409

main82121-16510iEL43,45..4FC..EFI199009-199012

sub82121-16511

main82121-16511iEL43,45..4FC..EFI199012-199106

main82121-16512iEL43,45..4FC..EFI199106-199208

main82121-16520iEL43..5F..EFIS199009-199012

sub82121-16521

main82121-16521iEL43..5F..EFIS199012-199106

main82121-16522iEL43..5F..EFIS199106-199208

main82121-16530iEL43..4FC..EFIS199009-199106

main82121-16531iEL43..4FC..EFIS199106-199208

main82121-16610iEL41..4F199009-199106

main82121-16611iEL41..4F199106-199111

main82121-16612iEL41..4F199111-199208

main82121-16620iEL41..3FC199009-199106

main82121-16621iEL41..3FC199106-199111

main82121-16622iEL41..3FC199111-199208

main82121-16670iNL40..5F199009-199208

main82121-16680iEL41..3FC199208-199409

main82121-16690iEL43,45..5F..EFI199208-199409

main82121-16700iEL43,45..4FC..EFI199208-199409

main82121-16710iEL43..5F..EFIS199208-199409

main82121-16720iEL43..4FC..EFIS199208-199409

main82121-16730iNL40..4FC199208-199409

main82121-16740iNL40..5F199208-199409

main82121-16790iNL40..4FC199009-199208

main82121-16800iEL43,45..5F..EFI199009-199106

main82121-16801iEL43,45..5F..EFI199106-199208

82210CFUSIBLE LINK

main90982-08188iNL40..5F199009-199409

main90982-08190iNL40..4FC199009-199409

main90982-08203iNL40;EL4#..ATM199009-199409

main90982-08227iNL40199009-199208

main90982-08228iEL4#199009-199409

main90982-08246iNL40;EL4#..MTM199009-199409

82620BLOCK ASSY, FUSIBLE LINK

main82620-30030iEL4#,NL40199009-199409

82823CAP, TERMINAL, NO.1

main82823-20070iEL43..4FC..EFIS199208-199409

main82823-22060iEL4#,NL40199009-199409

8271124420WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-24420

8271132650WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-32650

8271510100BRACKET,WIRING HARNESS CLAMP

main82715-10100

8271510130BRACKET,WIRING HARNESS CLAMP

main82715-10130

8271516060BRACKET,WIRING HARNESS CLAMP

main82715-16060

8271516180BRACKET,WIRING HARNESS CLAMP

main82715-16180

8271516210BRACKET,WIRING HARNESS CLAMP

main82715-16210

8271516260BRACKET,WIRING HARNESS CLAMP

main82715-16260

8271518050BRACKET,WIRING HARNESS CLAMP

main82715-18050

8271518080BRACKET,WIRING HARNESS CLAMP

main82715-18080

8281916190GROMMET, WIRING HARNESS

main82819-16190

9011906595

main90119-06595

9046706131

main90467-06131

9161160812

main91611-60812

9165140814

main91651-40814

9165160612

main91651-60612

91656A0616

main91656-A0616

21 parts on this diagram · 7 diagrams in section
