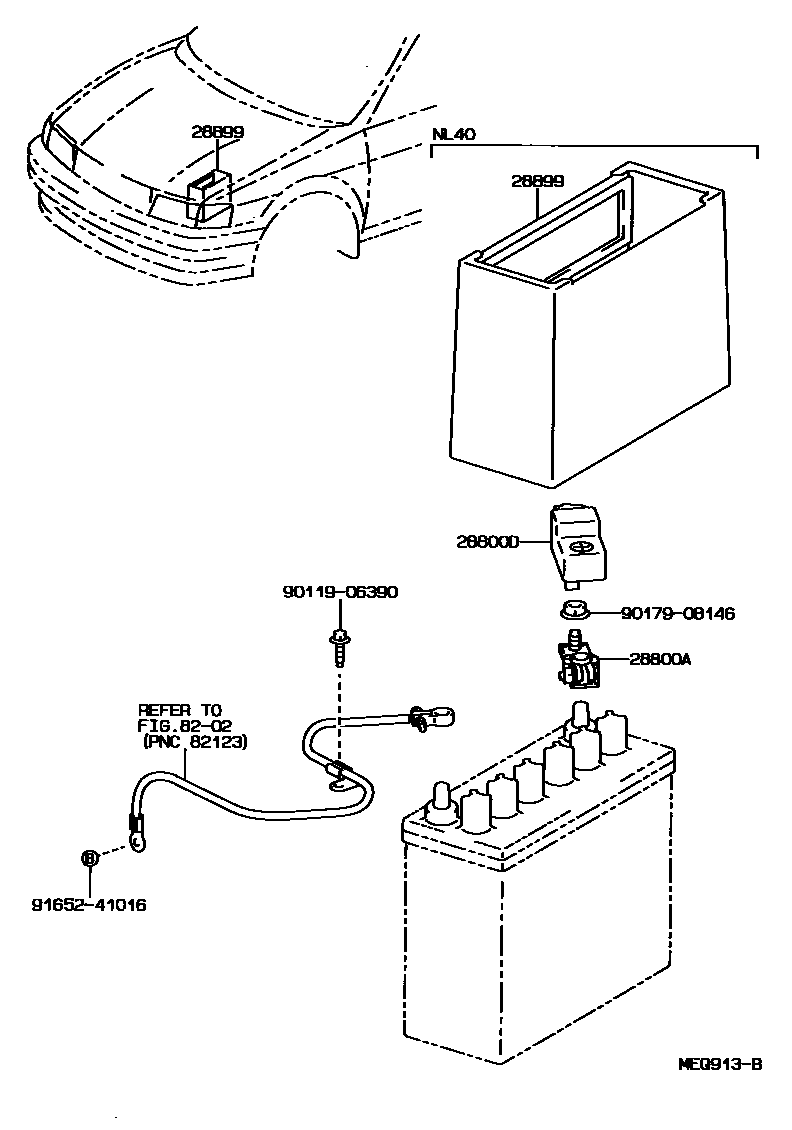

BATTERY & BATTERY CABLE

28800ATERMINAL, BATTERY POSITIVE

main90982-05034i4EFE,5EF#..EL4#199009-199409

main90982-05035i1NT..NL40199009-199010

main90982-05040i1NT..NL40199010-199409

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-16050i4EFE,5EF#..EL4#199208-199409

main82821-16060i1NT..NL40199208-199409

28899INSULATOR, BATTERY

main28899-55010i1NT..NL40..5F199009-199208

main28899-55020i1NT..NL40..4FC199208-199409

main28899-55050i1NT..NL40199009-199409

8202WIRING & CLAMP

→ Go to FIG 82-02

9011906390

main90119-06390

9017908146

main90179-08146

9165241016

main91652-41016

7 parts on this diagram · 1 diagram in section
