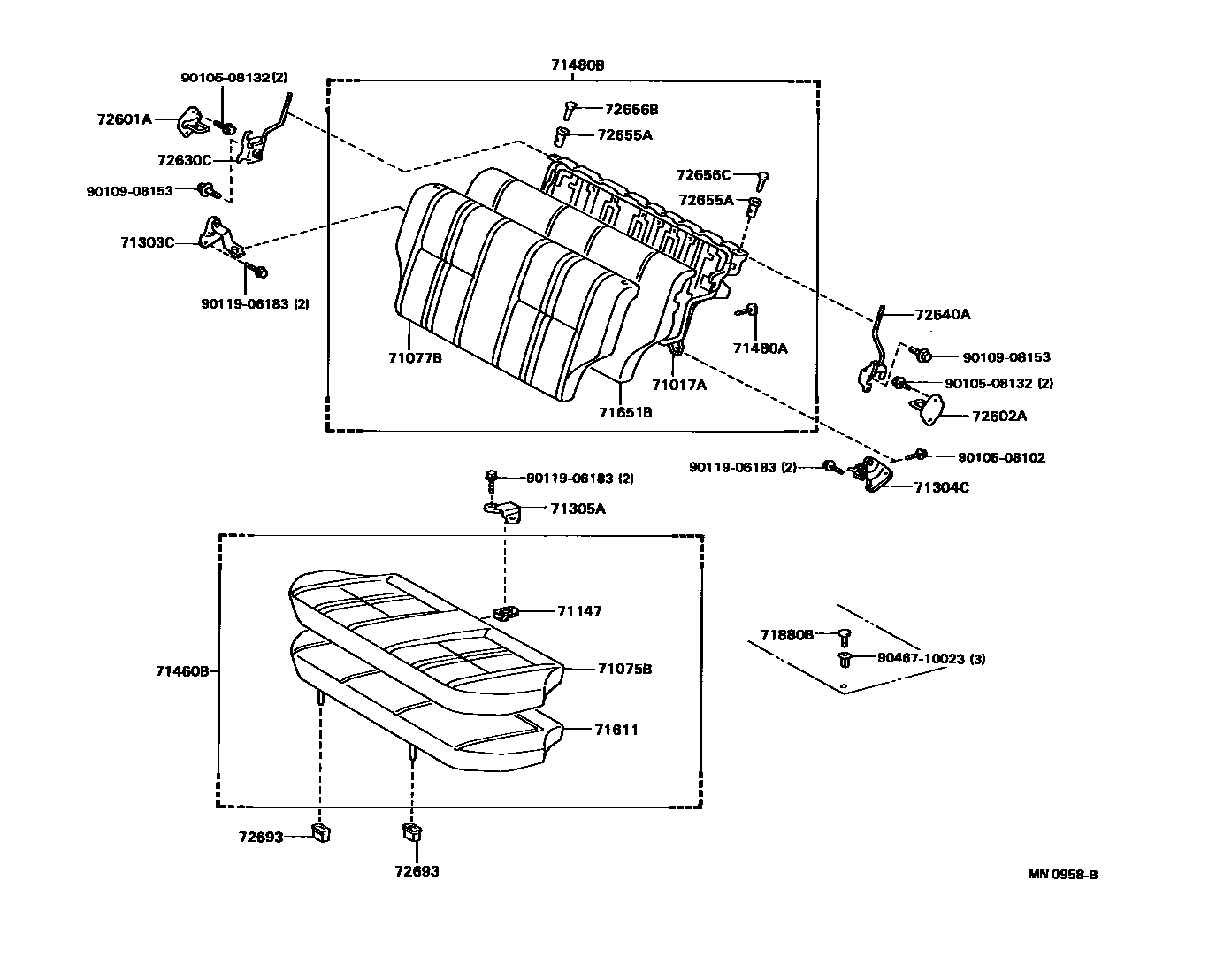

REAR SEAT & SEAT TRACK

0001 1 0002 1

71017FRAME SUB-ASSY, REAR SEATBACK, RH

main71017-16150iEL43,45..SR,ZS199009-199409

71017AFRAME SUB-ASSY, REAR SEATBACK

main71017-16140iEL41,45,NL40..LIM,TX,WIN199009-199409

71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)

main71065-16480-03iEL41..TX199009-199208

GRAY,TRIM2#

main71065-16480-04iEL41..TX199009-199208

GRAYISH BLUE,TRIM8#

main71065-16490-03iEL41,NL40..WIN199009-199208

GRAY,TRIM2#

main71065-16490-04iEL41,NL40..WIN199009-199208

GRAYISH BLUE,TRIM8#

main71065-16490-07iEL41,NL40..WIN199009-199208

SPRUCE,TRIM6#

main71065-16491-C0iEL41,NL40..WIN199208-199308

GRAY,TRIM2#

main71065-16491-G0iEL41,NL40..WIN199208-199308

SPRUCE,TRIM6#

main71065-16491-J0iEL41,NL40..WIN199208-199308

EISEN BLUE,TRIM8#

main71065-16492-C0iEL41,NL40..WIN199308-199409

GRAY,TRIM2#

main71065-16492-G0iEL41,NL40..WIN199308-199409

SPRUCE,TRIM6#

main71065-16492-J0iEL41,NL40..WIN199308-199409

EISEN BLUE,EISEN BLUE,TRIM8#

main71065-16500-03iEL41..LIM199009-199208

GRAY,TRIM2#

main71065-16500-04iEL41..LIM199009-199208

GRAYISH BLUE,TRIM8#

main71065-16500-07iEL41..LIM199009-199208

SPRUCE,TRIM6#

main71065-16500-C0iEL41..LIM199208-199308

GRAY,TRIM2#

main71065-16500-G0iEL41..LIM199208-199308

SPRUCE,TRIM6#

main71065-16500-J0iEL41..LIM199208-199308

EISEN BLUE,TRIM8#

main71065-16501-C0iEL41..LIM199308-199409

GRAY,TRIM2#

main71065-16501-G0iEL41..LIM199308-199409

SPRUCE,TRIM6#

main71065-16501-J0iEL41..LIM199308-199409

EISEN BLUE,TRIM8#

main71065-16520-03iEL43..EFI199009-199208

GRAY,TRIM2#

main71065-16520-04iEL43..EFI199009-199208

GRAYISH BLUE,TRIM8#

main71065-16520-07iEL43..EFI199009-199208

SPRUCE,TRIM6#

main71065-16610-03iEL43..EFIS199009-199208

GRAY,TRIM2#

main71065-16610-04iEL43..EFIS199009-199208

GRAYISH BLUE,TRIM8#

main71065-16610-07iEL43..EFIS199009-199208

SPRUCE,TRIM6#

main71065-16620-03iEL45..WIN199009-199208

GRAY,TRIM2#

main71065-16620-04iEL45..WIN199009-199208

GRAYISH BLUE,TRIM8#

main71065-16620-07iEL45..WIN199009-199208

SPRUCE,TRIM6#

main71065-16621-C0iEL45..WIN199208-199308

GRAY,TRIM2#

main71065-16621-G0iEL45..WIN199208-199308

SPRUCE,TRIM6#

main71065-16621-J0iEL45..WIN199208-199308

EISEN BLUE,TRIM8#

main71065-16622-C0iEL45..WIN199308-199409

GRAY,TRIM2#

main71065-16622-G0iEL45..WIN199308-199409

SPRUCE,TRIM6#

main71065-16622-J0iEL45..WIN199308-199409

EISEN BLUE,TRIM8#

main71065-16630-03iEL45..SR199009-199208

GRAY,TRIM2#

main71065-16630-04iEL45..SR199009-199208

GRAYISH BLUE,TRIM8#

main71065-16630-07iEL45..SR199009-199208

SPRUCE,TRIM6#

main71065-16680-C0iEL41..TX199208-199409

GRAY,TRIM2#

main71065-16680-J0iEL41..TX199208-199409

EISEN BLUE,TRIM8#

main71065-16690-C0iEL43..EFI199208-199308

GRAY,TRIM2#

main71065-16690-G0iEL43..EFI199208-199308

SPRUCE,TRIM6#

main71065-16690-J0iEL43..EFI199208-199308

EISEN BLUE,TRIM8#

main71065-16691-C0iEL43..EFI199308-199409

GRAY,TRIM2#

main71065-16691-G0iEL43..EFI199308-199409

SPRUCE,TRIM6#

main71065-16691-J0iEL43..EFI199308-199409

EISEN BLUE,TRIM8#

main71065-16700-C0iEL43..EFIS199208-199308

GRAY,TRIM2#

main71065-16700-G0iEL43..EFIS199208-199308

SPRUCE,TRIM6#

main71065-16700-J0iEL43..EFIS199208-199308

EISEN BLUE,TRIM8#

main71065-16701-C0iEL43..EFIS199308-199409

GRAY,TRIM2#

main71065-16701-G0iEL43..EFIS199308-199409

SPRUCE,TRIM6#

main71065-16701-J0iEL43..EFIS199308-199409

EISEN BLUE,TRIM8#

main71065-16710-C0iEL45..SR199208-199308

GRAY,TRIM2#

main71065-16710-G0iEL45..SR199208-199308

SPRUCE,TRIM6#

main71065-16710-J0iEL45..SR199208-199308

EISEN BLUE,TRIM8#

main71065-16711-C0iEL45..SR199308-199409

GRAY,TRIM2#

main71065-16711-G0iEL45..SR199308-199409

SPRUCE,TRIM6#

main71065-16711-J0iEL45..SR199308-199409

EISEN BLUE,TRIM8#

71077BCOVER, REAR SEATBACK (FOR BENCH TYPE)

main71077-1G270-C0iEL41..TX199208-199308

GRAY,TRIM2#

main71077-1G270-J0iEL41..TX199208-199308

EISEN BLUE,TRIM8#

main71077-1G271-C0iEL41..TX199308-199409

GRAY,TRIM2#

main71077-1G271-J0iEL41..TX199308-199409

EISEN BLUE,TRIM8#

main71077-1G320-03iEL41..TX199009-199208

GRAY,TRIM2#

main71077-1G320-04iEL41..TX199009-199208

GRAYISH BLUE,TRIM8#

main71077-1G330-03iEL41,45,NL40..WIN199009-199208

GRAY,TRIM2#

main71077-1G330-04iEL41,45,NL40..WIN199009-199208

GRAYISH BLUE,TRIM8#

main71077-1G330-07iEL41,45,NL40..WIN199009-199208

SPRUCE,TRIM6#

main71077-1G420-03iEL41..LIM199009-199208

GRAY,TRIM2#

main71077-1G420-04iEL41..LIM199009-199208

GRAYISH BLUE,TRIM8#

main71077-1G420-07iEL41..LIM199009-199208

SPRUCE,TRIM6#

main71077-1G660-C0iEL41,45,NL40..WIN199208-199308

GRAY,TRIM2#

main71077-1G660-G0iEL41,45,NL40..WIN199208-199308

SPRUCE,TRIM6#

main71077-1G660-J0iEL41,45,NL40..WIN199208-199308

EISEN BLUE,TRIM8#

main71077-1G661-C0iEL41,45,NL40..WIN199308-199409

GRAY,TRIM2#

main71077-1G661-G0iEL41,45,NL40..WIN199308-199409

SPRUCE,TRIM6#

main71077-1G661-J0iEL41,45,NL40..WIN199308-199409

EISEN BLUE,TRIM8#

main71077-1G670-C0iEL41..LIM199208-199308

GRAY,TRIM2#

main71077-1G670-G0iEL41..LIM199208-199308

SPRUCE,TRIM6#

main71077-1G670-J0iEL41..LIM199208-199308

EISEN BLUE,TRIM8#

main71077-1G671-C0iEL41..LIM199308-199409

GRAY,TRIM2#

main71077-1G671-G0iEL41..LIM199308-199409

SPRUCE,TRIM6#

main71077-1G671-J0iEL41..LIM199308-199409

EISEN BLUE,TRIM8#

71147SILENCER, SEAT SPRING

main71147-16020iEL4#,NL40199009-199409

71303CHINGE SUB-ASSY, REAR SEATBACK, RH

main71303-16050iEL4#,NL40199009-199409

71304CHINGE SUB-ASSY, REAR SEATBACK, LH

main71304-16010iEL4#,NL40199009-199409

71305AHINGE SUB-ASSY, REAR SEATBACK, CENTER

main71305-16060iEL43,45..SR,ZS199009-199409

main71343-16070iEL41,45,NL40..LIM,TX,WIN199009-199409

71460BCUSHION ASSY, REAR SEAT (FOR BENCH TYPE)

main71560-16500-03iEL41..TX199009-199208

***,GRAY,TRIM2#

main71560-16500-04iEL41..TX199009-199208

***,GRAYISH BLUE,TRIM8#

main71560-16510-03iEL41,NL40..WIN199009-199208

***,GRAY,TRIM2#

main71560-16510-04iEL41,NL40..WIN199009-199208

***,GRAYISH BLUE,TRIM8#

main71560-16510-07iEL41,NL40..WIN199009-199208

***,SPRUCE,TRIM6#

main71560-16511-C0iEL41,NL40..WIN199208-199308

***,GRAY,TRIM2#

main71560-16511-G0iEL41,NL40..WIN199208-199308

***,SPRUCE,TRIM6#

main71560-16511-J0iEL41,NL40..WIN199208-199308

***,EISEN BLUE,TRIM8#

main71560-16512-C0iEL41,NL40..WIN199308-199409

***,GRAY,TRIM2#

main71560-16512-G0iEL41,NL40..WIN199308-199409

***,SPRUCE,TRIM6#

main71560-16512-J0iEL41,NL40..WIN199308-199409

***,EISEN BLUE,TRIM8#

main71560-16540-03iEL41..LIM199009-199208

***,GRAY,TRIM2#

main71560-16540-04iEL41..LIM199009-199208

***,GRAYISH BLUE,TRIM8#

main71560-16540-07iEL41..LIM199009-199208

***,SPRUCE,TRIM6#

main71560-16540-C0iEL41..LIM199208-199308

***,GRAY,TRIM2#

main71560-16540-G0iEL41..LIM199208-199308

***,SPRUCE,TRIM6#

main71560-16540-J0iEL41..LIM199208-199308

***,EISEN BLUE,TRIM8#

main71560-16541-C0iEL41..LIM199308-199409

***,GRAY,TRIM2#

main71560-16541-G0iEL41..LIM199308-199409

***,SPRUCE,TRIM6#

main71560-16541-J0iEL41..LIM199308-199409

***,EISEN BLUE,TRIM8#

main71560-16550-03iEL43..EFI199009-199208

***,GRAY,TRIM2#

main71560-16550-04iEL43..EFI199009-199208

***,GRAYISH BLUE,TRIM8#

main71560-16550-07iEL43..EFI199009-199208

***,SPRUCE,TRIM6#

main71560-16560-03iEL43..EFIS199009-199208

***,GRAY,TRIM2#

main71560-16560-04iEL43..EFIS199009-199208

***,GRAYISH BLUE,TRIM8#

main71560-16560-07iEL43..EFIS199009-199208

***,SPRUCE,TRIM6#

main71560-16580-03iEL45..WIN199009-199208

***,GRAY,TRIM2#

main71560-16580-04iEL45..WIN199009-199208

***,GRAYISH BLUE,TRIM8#

main71560-16580-07iEL45..WIN199009-199208

***,SPRUCE,TRIM6#

main71560-16581-C0iEL45..WIN199208-199308

***,GRAY,TRIM2#

main71560-16581-G0iEL45..WIN199208-199308

***,SPRUCE,TRIM6#

main71560-16581-J0iEL45..WIN199208-199308

***,EISEN BLUE,TRIM8#

main71560-16582-C0iEL45..WIN199308-199409

***,GRAY,TRIM2#

main71560-16582-G0iEL45..WIN199308-199409

***,SPRUCE,TRIM6#

main71560-16582-J0iEL45..WIN199308-199409

***,EISEN BLUE,TRIM8#

main71560-16670-03iEL45..SR199009-199208

***,GRAY,TRIM2#

main71560-16670-04iEL45..SR199009-199208

***,GRAYISH BLUE,TRIM8#

main71560-16670-07iEL45..SR199009-199208

***,SPRUCE,TRIM6#

main71560-16730-C0iEL41..TX199208-199308

***,GRAY,TRIM2#

main71560-16730-C1iEL41..TX199308-199409

***,GRAY,TRIM2#

main71560-16730-J0iEL41..TX199208-199304

***,EISEN BLUE,TRIM8#

main71560-16730-J1iEL41..TX199308-199409

***,EISEN BLUE,TRIM8#

main71560-16740-C0iEL43..EFI199208-199308

***,GRAY,TRIM2#

main71560-16740-G0iEL43..EFI199208-199308

***,SPRUCE,TRIM6#

main71560-16740-J0iEL43..EFI199208-199308

***,EISEN BLUE,TRIM8#

main71560-16741-C0iEL43..EFI199308-199409

***,GRAY,TRIM2#

main71560-16741-G0iEL43..EFI199308-199409

***,SPRUCE,TRIM6#

main71560-16741-J0iEL43..EFI199308-199409

***,EISEN BLUE,TRIM8#

main71560-16750-C0iEL43..EFIS199208-199308

***,GRAY,TRIM2#

main71560-16750-G0iEL43..EFIS199208-199308

***,SPRUCE,TRIM6#

main71560-16750-J0iEL43..EFIS199208-199308

***,EISEN BLUE,TRIM8#

main71560-16751-C0iEL43..EFIS199308-199409

***,GRAY,TRIM2#

main71560-16751-G0iEL43..EFIS199308-199409

***,SPRUCE,TRIM6#

main71560-16751-J0iEL43..EFIS199308-199409

***,EISEN BLUE,TRIM8#

main71560-16760-C0iEL45..SR199208-199308

***,GRAY,TRIM2#

main71560-16760-G0iEL45..SR199208-199308

***,SPRUCE,TRIM6#

main71560-16760-J0iEL45..SR199208-199308

***,EISEN BLUE,TRIM8#

main71560-16761-C0iEL45..SR199308-199409

***,GRAY,TRIM2#

main71560-16761-G0iEL45..SR199308-199409

***,SPRUCE,TRIM6#

main71560-16761-J0iEL45..SR199308-199409

***,EISEN BLUE,TRIM8#

71480ACLIP (FOR REAR SEATBACK)

main90467-06037-01×5iEL41,45,NL40..LIM,WIN; EL41..TX; EL43,45..SR,ZS199009-199208

BLACK,TRIM2#,6#,8#; BLACK,TRIM2#,8#

main90467-07049-01×5iEL41,45,NL40..LIM,TX,WIN; EL43,45..SR,ZS199009-199208

BLACK,TRIM2#

main90467-07049-07×5iEL41,45,NL40..LIM,WIN; EL43,45..SR,ZS199009-199208

SPRUCE,TRIM6#

main90467-07049-24×5iEL41,45,NL40..LIM,TX,WIN; EL43,45..SR,ZS199009-199208

GRAYISH BLUE,TRIM8#

main90467-07049-C0×5iEL41,45,NL40..LIM,TX,WIN; EL43,45..SR,ZS199208-199409

BLACK,TRIM2#

main90467-07049-G0×5iEL41,45,NL40..LIM,WIN; EL43,45..SR,ZS199208-199409

SPRUCE,TRIM6#

main90467-07049-J1×5iEL41,45,NL40..LIM,TX,WIN; EL43,45..SR,ZS199208-199409

EISEN BLUE,TRIM8#

71480BBACK ASSY, REAR SEAT (FOR BENCH TYPE)

main71480-1G540-03iEL41..TX199009-199208

***,GRAY,TRIM2#

main71480-1G540-04iEL41..TX199009-199208

***,GRAYISH BLUE,TRIM8#

main71480-1G550-03iEL41,45,NL40..WIN199009-199208

***,GRAY,TRIM2#

main71480-1G550-04iEL41,45,NL40..WIN199009-199208

***,GRAYISH BLUE,TRIM8#

main71480-1G550-07iEL41,45,NL40..WIN199009-199208

***,SPRUCE,TRIM6#

main71480-1G560-03iEL41..LIM199009-199208

***,GRAY,TRIM2#

main71480-1G560-04iEL41..LIM199009-199208

***,GRAYISH BLUE,TRIM8#

main71480-1G560-07iEL41..LIM199009-199208

***,SPRUCE,TRIM6#

main71480-1G680-C0iEL41..TX199208-199308

***,GRAY,TRIM2#

main71480-1G680-J0iEL41..TX199208-199308

***,EISEN BLUE,TRIM8#

main71480-1G681-C0iEL41..TX199308-199409

***,GRAY,TRIM2#

main71480-1G681-J0iEL41..TX199308-199409

***,EISEN BLUE,TRIM8#

main71480-1G690-C0iEL41,45,NL40..WIN199208-199308

***,GRAY,TRIM2#

main71480-1G690-G0iEL41,45,NL40..WIN199208-199308

***,SPRUCE,TRIM6#

main71480-1G690-J0iEL41,45,NL40..WIN199208-199308

***,EISEN BLUE,TRIM8#

main71480-1G691-C0iEL41,45,NL40..WIN199308-199409

***,GRAY,TRIM2#

main71480-1G691-G0iEL41,45,NL40..WIN199308-199409

***,SPRUCE,TRIM6#

main71480-1G691-J0iEL41,45,NL40..WIN199308-199409

***,EISEN BLUE,TRIM8#

main71480-1G700-C0iEL41..LIM199208-199308

***,GRAY,TRIM2#

main71480-1G700-G0iEL41..LIM199208-199308

***,SPRUCE,TRIM6#

main71480-1G700-J0iEL41..LIM199208-199308

***,EISEN BLUE,TRIM8#

main71480-1G701-C0iEL41..LIM199308-199409

***,GRAY,TRIM2#

main71480-1G701-G0iEL41..LIM199308-199409

***,SPRUCE,TRIM6#

main71480-1G701-J0iEL41..LIM199308-199409

***,EISEN BLUE,TRIM8#

71611PAD, REAR SEAT CUSHION

main71503-16040iEL41,43,NL40199009-199409

main71503-16050iEL45199009-199409

71651BPAD, REAR SEATBACK(FOR BENCH TYPE)

main71651-16200iEL41,45,NL40..LIM,TX,WIN199009-199208

main71651-16280iEL41,45,NL40..LIM,TX,WIN199208-199409

71880BCLIP(FOR REAR SEATBACK CARPET)

main90467-07026-22×3iEL4#,NL40199208-199409

BLACK,TRIM2#

main90467-07026-33×3iEL4#,NL40..LIM,SR,WIN,ZS; EL41..TX199009-199208

GRAY,TRIM2#,6#,8#; GRAY,TRIM2#,8#

main90467-07026-G0×3iEL4#,NL40..LIM,SR,WIN,ZS199208-199409

SPRUCEGRAY,TRIM6#

main90467-07026-W4×3iEL4#,NL40199208-199409

EISEN BLUE,TRIM8#

72601ASTRIKER SUB-ASSY, REAR SEATBACK LOOK, RH

main72601-16070iEL4#,NL40199009-199409

72602ASTRIKER SUB-ASSY, REAR SEATBACK LOCK, LH

main72601-16070iEL4#,NL40199009-199409

72630CLOCK ASSY, REAR SEATBACK, RH

main72630-16100iEL4#,NL40199009-199409

72640ALOCK ASSY, REAR SEATBACK, LH

main72640-16080iEL4#,NL40199009-199409

72655AGROMMET, REAR SEATBACK STOP BUTTON

main72646-20050-01iEL41,45,NL40..LIM,TX,WIN; EL43,45..SR,ZS199009-199208

BLACK,TRIM2#

main72646-20050-07iEL41,45,NL40..LIM,WIN; EL43,45..SR,ZS199009-199208

SPRUCE,TRIM6#

main72646-20050-24iEL41,45,NL40..LIM,TX,WIN; EL43,45..SR,ZS199009-199208

GRAYISH BLUE,TRIM8#

main72646-20050-C0iEL41,45,NL40..LIM,TX,WIN; EL43,45..SR,ZS199208-199409

BLACK,TRIM2#

main72646-20050-G0iEL41,45,NL40..LIM,WIN; EL43,45..SR,ZS199208-199409

SPRUCE,TRIM6#

main72646-20050-J0iEL41,45,NL40..LIM,TX,WIN; EL43,45..SR,ZS199208-199409

EISEN BLUE,TRIM8#

72656BBUTTON, REAR SEATBACK STOP RELEASE

main72656-20010-07iEL4#,NL40..LIM,SR,WIN,ZS199009-199208

SPRUCE,TRIM6#

main72656-20010-11iEL4#,NL40199009-199208

BLACK,TRIM2#

main72656-20010-51iEL4#,NL40199009-199208

GRAYISH BLUE,TRIM8#

main72656-20010-C1iEL4#,NL40199208-199409

BLACK,TRIM2#

main72656-20010-G0iEL4#,NL40..LIM,SR,WIN,ZS199208-199409

SPRUCE,TRIM6#

main72656-20010-J0iEL4#,NL40199208-199409

EISEN BLUE,TRIM8#

72656CBUTTON, REAR SEATBACK STOP RELEASE

main72656-20010-07iEL4#,NL40..LIM,SR,WIN,ZS199009-199208

SPRUCE,TRIM6#

main72656-20010-11iEL4#,NL40199009-199208

BLACK,TRIM2#

main72656-20010-51iEL4#,NL40199009-199208

GRAYISH BLUE,TRIM8#

main72656-20010-C1iEL4#,NL40199208-199409

BLACK,TRIM2#

main72656-20010-G0iEL4#,NL40..LIM,SR,WIN,ZS199208-199409

SPRUCE,TRIM6#

main72656-20010-J0iEL4#,NL40199208-199409

EISEN BLUE,TRIM8#

72693HOOK, REAR SEAT CUSHION LOCK

main72693-32020×2iEL41,43,NL40; EL45199009-199409

9010508102

main90105-08102

9010508132

main90105-08132

9010908153

main90109-08153

9011906183

main90119-06183

9046710023

main90467-10023

27 parts on this diagram · 2 diagrams in section
