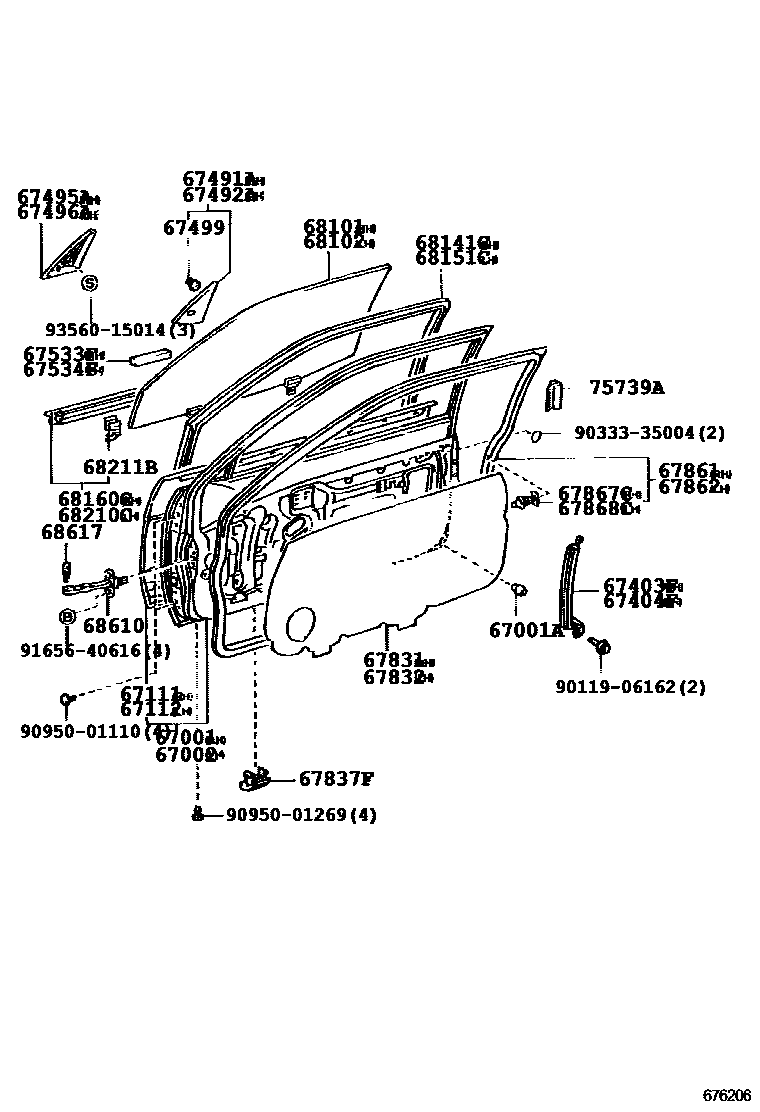

FRONT DOOR PANEL & GLASS

0001 1 0002 1 0003 1

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-16381iEL41,45,NL40..TX,WIN199208-199209

main67001-16400iEL41,45,NL40..TX,WIN199009-199205

main67001-16401iEL41,45,NL40..TX,WIN199205-199208

main67001-16410iEL4#..LIM,SR,ZS199208-199409

main67001-16420iEL41,45,NL40..TX,WIN199209-199409

main67001-16440iEL4#..LIM,SR,ZS199009-199205

main67001-16441iEL4#..LIM,SR,ZS199205-199208

67001ACUSHION, FRONT DOOR PANEL

main90541-09031iEL4#,NL40199009-199409

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-16341iEL41,45,NL40..TX,WIN199208-199209

main67002-16350iEL4#..LIM,SR,ZS199208-199409

main67002-16370iEL41,45,NL40..TX,WIN199009-199205

main67002-16371iEL41,45,NL40..TX,WIN199205-199208

main67002-16380iEL4#..LIM,SR,ZS199009-199205

main67002-16381iEL4#..LIM,SR,ZS199205-199208

main67002-16390iEL41,45,NL40..TX,WIN199209-199409

67111PANEL, FRONT DOOR, OUTER RH

main67111-16200iEL4#..LIM,SR,ZS199009-199104

main67111-16201iEL4#..LIM,SR,ZS199104-199409

main67111-16210iEL41,45,NL40..TX,WIN199009-199409

67112PANEL, FRONT DOOR, OUTER LH

main67112-16180iEL4#..LIM,SR,ZS199009-199104

main67112-16181iEL4#..LIM,SR,ZS199104-199409

main67112-16190iEL41,45,NL40..TX,WIN199009-199409

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-16080iEL4#,NL40199009-199110

main67403-16081iEL4#,NL40199110-199409

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-16080iEL4#,NL40199009-199110

main67404-16081iEL4#,NL40199110-199409

67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH

main67491-16120iEL4#,NL40199009-199409

main67491-16170iEL43,45..SR,ZS199009-199409

main67491-16220iEL41..LIM199009-199409

67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH

main67492-16120iEL4#,NL40199009-199409

main67492-16170iEL43,45..SR,ZS199009-199409

main67492-16220iEL41..LIM199009-199409

67495ACOVER, FRONT DOOR FRONT LOWER FRAME, UPPER RH

main67495-16070iEL41..TX199009-199409

main67495-16090iEL4#,NL40..LIM,SR,WIN,ZS199009-199409

67496ACOVER, FRONT DOOR FRONT LOWER FRAME, UPPER LH

main67496-16070iEL41..TX199009-199409

main67496-16090iEL4#,NL40..LIM,SR,WIN,ZS199009-199409

67499RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH

main67499-16010iEL4#,NL40199009-199409

main67499-32010iEL4#..LIM,SR,ZS199009-199409

67533FPAD, FRONT DOOR LOWER FRAME GARNISH, RH

main67533-16050iEL4#,NL40199009-199409

67534FPAD, FRONT DOOR LOWER FRAME GARNISH, LH

main67533-16050iEL4#,NL40199009-199409

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-16320iEL43,45..SR199009-199208

main67831-16320iEL4#,NL40..DSL,EFI199009-199409

main67831-16370iEL41..LIM199009-199208

main67831-16370iEL41..LIM199009-199409

main67831-16370iEL43..EFIS199009-199409

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-16180iEL41,45,NL40..TX,WIN199208-199409

main67832-16180iEL41,45,NL40..LIM,TX,WIN199009-199208

main67832-16190iEL41..3FC..TX;EL41,45,NL40..WIN199009-199208

main67832-16190iEL41..LIM199009-199208

main67832-16190iEL4#,NL40..DSL,EFI199208-199409

main67832-16240iEL41..LIM199104-199208

main67832-16240iEL43,45..SR199104-199208

main67832-16240iEL41,45,NL40..WIN199208-199409

main67832-16250iEL41..LIM199009-199208

main67832-16250iEL43,45..SR199009-199409

main67832-16250iEL43..EFIS199009-199409

67837FSEAL, DOOR DUST PROOF

main67837-16030iEL4#,NL40199009-199409

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-16260iEL4#,NL40199009-199409

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-16260iEL4#,NL40199009-199409

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67868-12050iEL4#,NL40199009-199409

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67868-12050iEL4#,NL40199009-199409

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68110-16010iEL41,45,NL40..TX,WIN199009-199409

main68110-16020iEL4#..LIM,SR,ZS199009-199409

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68120-16010iEL41,45,NL40..TX,WIN199009-199409

main68120-16020iEL4#..LIM,SR,ZS199009-199409

68141CRUN, FRONT DOOR GLASS, RH

main68141-16180iEL4#,NL40199009-199409

68151CRUN, FRONT DOOR GLASS, LH

main68151-16010iEL4#,NL40199009-199409

68160CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH

main68160-16090iEL41..TX199009-199409

68210CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH

main68210-16080iEL41..TX199009-199409

68211BCLIP(FOR FRONT DOOR GLASS WEATHERSTRIP)

main68212-16030iEL41..TX199009-199409

68610CHECK ASSY, FRONT DOOR

main68610-16060iEL4#,NL40199009-199208

main68610-16080iEL4#,NL40199208-199409

68617PIN, FRONT DOOR CHECK

main68617-12030iEL4#,NL40199009-199409

75739AMOULDING DOOR EDGE

main75739-30030iEL4#,NL40199009-199208

9011906162

main90119-06162

9033335004

main90333-35004

9095001110

main90950-01110

9095001269

main90950-01269

9165640616

main91656-40616

9356015014

main93560-15014

37 parts on this diagram · 3 diagrams in section
