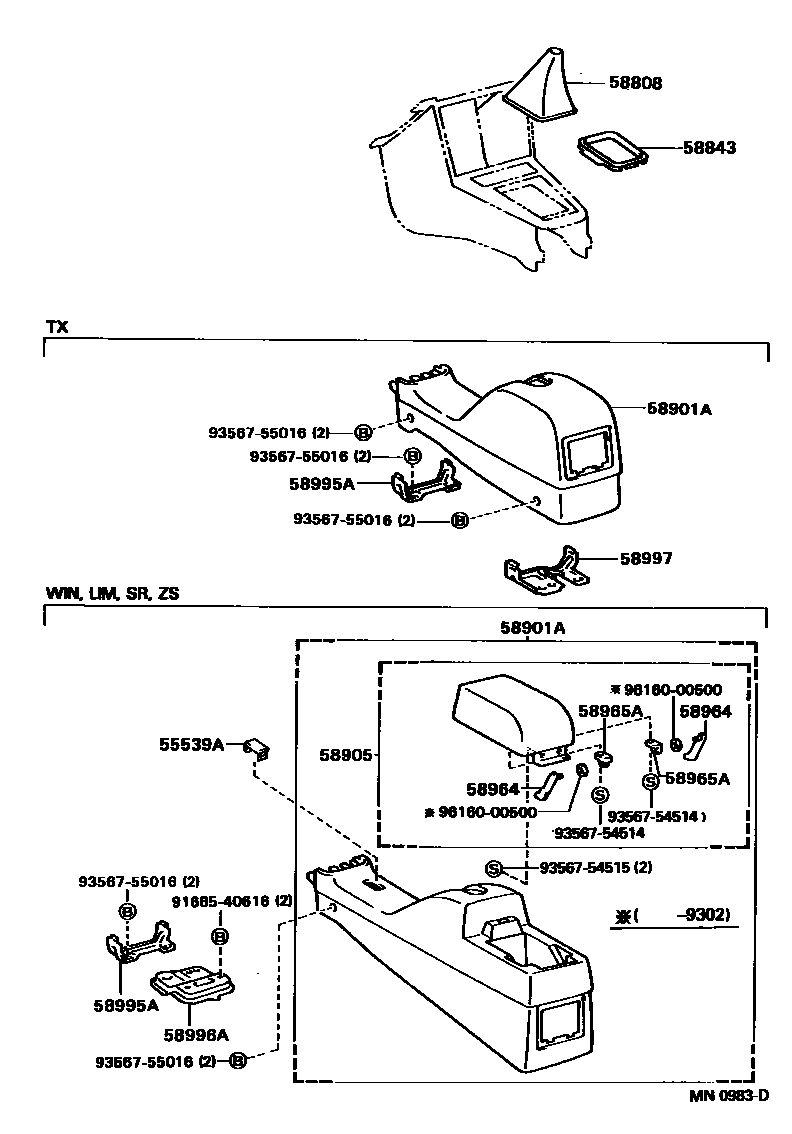

CONSOLE BOX & BRACKET

55539ACOVER, SPARE SWITCH HOLE

main55539-16040-01iEL41,43,NL40..LIM,SR,WIN,ZS199009-199208

BLACK,TRIM2#

main55539-16040-04iEL41,43,NL40..LIM,SR,WIN,ZS199009-199208

GRAYISH BLUE,TRIM8#

main55539-16040-07iEL41,43,NL40..LIM,SR,WIN,ZS199009-199208

SPRUCE,TRIM6#

main55539-16040-22iEL43..5F..EFIS;EL41,43,NL40..DSL,EFI199208-199409

BLACK,TRIM2#

main55539-16040-G0iEL43..5F..EFIS;EL41,43,NL40..LIM,SR,WIN199208-199409

SPRUCE,TRIM6#

main55539-16040-W4iEL43..5F..EFIS;EL41,43,NL40..DSL,EFI199208-199409

EISEN BLUE,TRIM8#

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-16090-01iEL4#,NL40..MTM199009-199208

BLACK,TRIM2#

main58808-16090-04iEL4#,NL40..MTM199009-199208

GRAYISH BLUE,TRIM8#

main58808-16090-07iEL4#,NL40..MTM..(LIM,SR,WIN,ZS)199009-199208

SPRUCE,TRIM6#

main58808-16090-22iEL4#,NL40..MTM199208-199409

BLACK,TRIM2#

main58808-16090-G0iEL4#,NL40..MTM..(LIM,SR,WIN,ZS)199208-199409

SPRUCE,TRIM6#

main58808-16090-W4iEL4#,NL40..MTM199208-199409

EISEN BLUE,TRIM8#

58843BEZEL, SHIFTING HOLE

main58843-16030-01iEL4#,NL40..ATM199009-199208

BLACK,TRIM2#

main58843-16030-04iEL4#,NL40..ATM199009-199208

GRAYISH BLUE,TRIM8#

main58843-16030-07iEL4#,NL40..ATM..(LIM,SR,WIN,ZS)199009-199208

SPRUCE,TRIM6#

main58843-16030-22iEL4#,NL40..ATM199208-199409

BLACK,TRIM2#

main58843-16030-G0iEL4#,NL40..ATM..(LIM,SR,WIN,ZS)199208-199409

SPRUCE,TRIM6#

main58843-16030-W4iEL4#,NL40..ATM199208-199409

EISEN BLUE,TRIM8#

58901ABOX SUB-ASSY, CONSOLE, REAR

main58901-16090-01iEL41,43,NL40..LIM,SR,WIN,ZS199009-199208

BLACK,TRIM2#

main58901-16090-04iEL41,43,NL40..LIM,SR,WIN,ZS199009-199208

GRAYISH BLUE,TRIM8#

main58901-16090-07iEL41,43,NL40..LIM,SR,WIN,ZS199009-199208

SPRUCE,TRIM6#

main58901-16090-22iEL41..TX199208-199409

main58901-16090-G0iEL41,43,NL40..LIM,SR,WIN,ZS199208-199409

SPRUCE,TRIM6#

main58901-16090-W4iEL41..TX199208-199409

EISEN BLUE,TRIM8#

main58901-16100-01iEL41..TX199009-199208

BLACK,TRIM2#

main58901-16100-04iEL41..TX199009-199208

GRAYISH BLUE,TRIM8#

main58901-16100-22iEL41..TX199208-199409

BLACK,TRIM2#

main58901-16100-W4iEL41..TX199208-199409

EISEN BLUE,TRIM8#

main58901-16110-01iEL45199009-199208

BLACK,TRIM2#

main58901-16110-04iEL45199009-199208

GRAYISH BLUE,TRIM8#

main58901-16110-07iEL45199009-199208

SPRUCE,TRIM6#

main58901-16110-22iEL45199208-199409

BLACK,TRIM2#

main58901-16110-G0iEL45199208-199409

SPRUCE,TRIM6#

main58901-16110-W4iEL45199208-199409

EISEN BLUE,TRIM8#

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-16030-01iEL4#,NL40..LIM,SR,WIN,ZS199009-199208

BLACK,TRIM2#

main58905-16030-04iEL4#,NL40..LIM,SR,WIN,ZS199009-199208

GRAYISH BLUE,TRIM8#

main58905-16030-07iEL4#,NL40..LIM,SR,WIN,ZS199009-199208

SPRUCE,TRIM6#

main58905-16030-C0iEL4#,NL40199208-199409

BLACK,TRIM2#

main58905-16030-G0iEL4#,NL40..LIM,SR,WIN,ZS199208-199409

SPRUCE,TRIM6#

main58905-16030-J0iEL4#,NL40199208-199409

EISEN BLUE,TRIM8#

58964STOPPER, CONSOLE COMPARTMENT DOOR, NO.1

main58964-12040iEL4#,NL40199302-199305

RH

main58964-16010iEL4#,NL40199305-199409

RH

main58964-30040iEL4#,NL40199208-199302

main58964-32040iEL4#,NL40199208-199302

main58965-12040iEL4#,NL40199302-199305

LH

main58965-16010iEL4#,NL40199305-199409

LH

58965ASTOPPER, CONSOLE COMPARTMENT DOOR, NO.2

main58965-12010iEL4#,NL40199208-199409

main58965-20020iEL4#,NL40..LIM,SR,WIN,ZS199009-199208

58995ABRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-16060iEL4#,NL40199009-199409

58996ABRACKET, CONSOLE BOX MOUNTING, NO.2

main58996-16060iEL41,43,NL40199208-199409

58997BRACKET, CONSOLE BOX MOUNTING, NO.3

main58997-16070iEL41..TX199009-199409

9166540616

main91665-40616

9356754514

main93567-54514

9356754515

main93567-54515

9356755016

main93567-55016

9616000500

main96160-00500

15 parts on this diagram · 1 diagram in section
