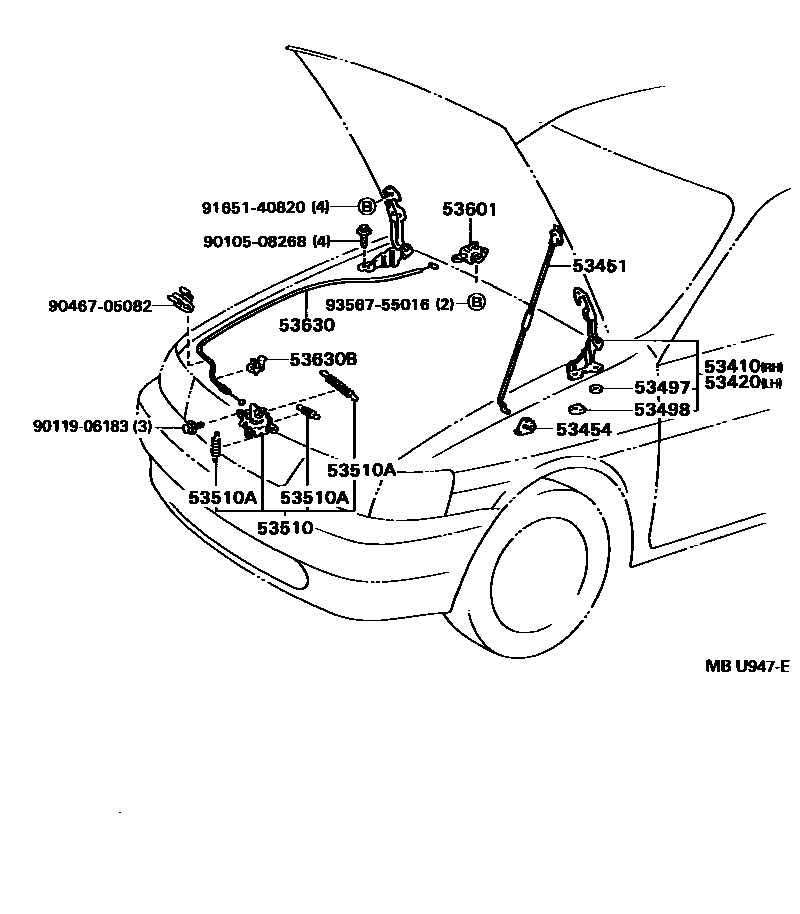

HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-16060iEL4#,NL40199009-199107

main53410-16061iEL4#,NL40199107-199409

53420HINGE ASSY, HOOD, LH

main53420-16040iEL4#,NL40199009-199107

main53420-16041iEL4#,NL40199107-199409

53451ROD, HOOD SUPPORT

main53440-16040iEL4#,NL40199009-199106

main53440-16041iEL4#,NL40199106-199409

53454CLIP, HOOD SUPPORT ROD

main53454-16010iEL4#,NL40199009-199409

53497PAD, HOOD HINGE, NO.1

main53497-16020iEL4#,NL40199009-199409

main53497-16030×2iEL4#,NL40199009-199409

53498PAD, HOOD HINGE, NO.2

main53498-16020iEL4#,NL40199009-199409

main53498-16030×2iEL4#,NL40199009-199409

53510LOCK ASSY, HOOD

main53510-16120iEL4#,NL40199009-199208

main53510-16210iEL4#,NL40199208-199409

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09051iEL4#,NL40199009-199409

main90506-09052iEL4#,NL40199009-199208

main90506-09055iEL4#,NL40199208-199409

main90506-18067iEL4#,NL40199009-199409

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-16020-01iEL4#,NL40199009-199208

BLACK,TRIM2#

main53601-16020-04iEL4#,NL40199009-199208

GRAYISH BLUE,TRIM8#

main53601-16020-07iEL4#,NL40..LIM,SR,WIN,ZS199009-199208

SPRUCE,TRIM6#

main53601-16020-22iEL4#,NL40199208-199409

BLACK,TRIM2#

main53601-16020-G0iEL4#,NL40..LIM,SR,WIN,ZS199208-199409

SPRUCE,TRIM6#

main53601-16020-W4iEL4#,NL40199208-199409

EISEN BLUE,TRIM8#

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-16200iEL4#,NL40199009-199208

main53630-16290iEL4#,NL40199208-199409

53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)

main90467-09043iEL4#,NL40199009-199409

9010508268

main90105-08268

9011906183

main90119-06183

9046705082

main90467-05082

9165140820

main91651-40820

9356755016

main93567-55016

16 parts on this diagram · 1 diagram in section
