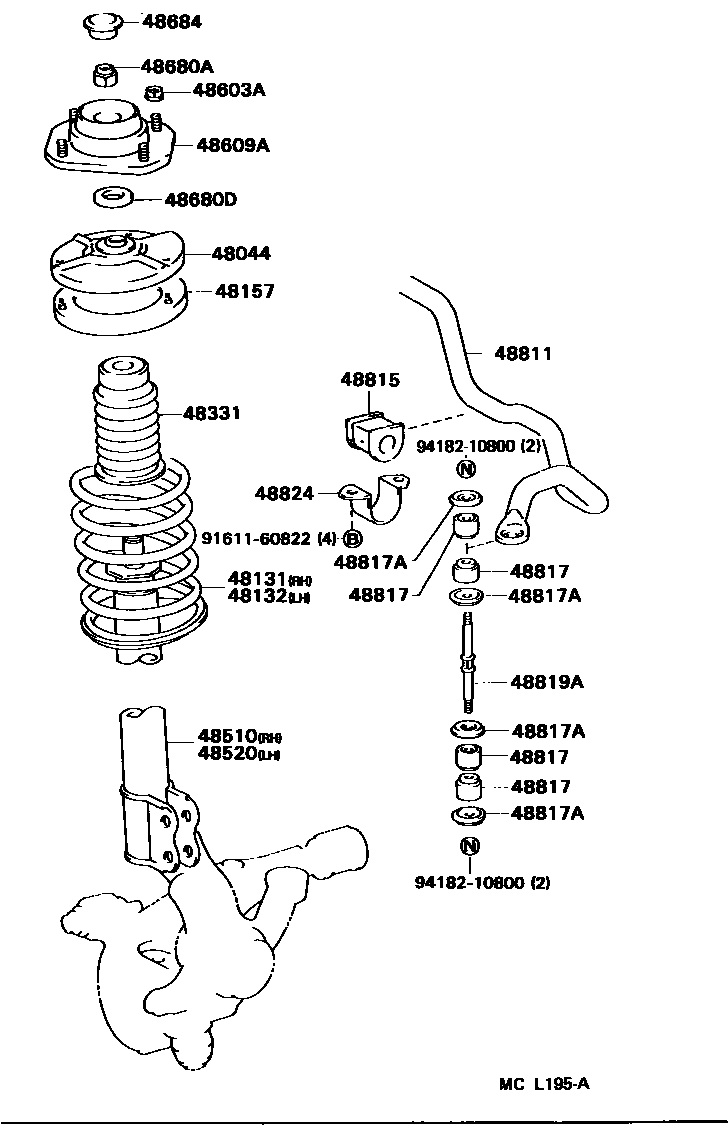

FRONT SPRING & SHOCK ABSORBER
48044SEAT SUB-ASSY, FRONT SPRING, NO.1
48131SPRING, FRONT COIL, RH
sub48131-16790
sub48131-16761
sub48131-10621
sub48131-1G251
sub48131-1G262
sub48131-1G280
sub48131-1G830
48132SPRING, FRONT COIL, LH
sub48131-16790
sub48131-16761
sub48131-10621
sub48131-1G251
sub48131-1G262
sub48131-1G280
sub48131-1G830
48157INSULATOR, FRONT COIL SPRING, UPPER
48331BUMPER, FRONT SPRING, NO.1
48510ABSORBER ASSY, SHOCK, FRONT RH
48520ABSORBER ASSY, SHOCK, FRONT LH
48603ANUT(FOR FRONT SUSPENSION SUPPORT)
48609ASUPPORT SUB-ASSY, FRONT SUSPENSION
48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)
48680DSEAL, DUST(FOR FRONT SUSPENSION SUPPORT)
48684COVER, BEARING DUST
48815BUSH, FRONT STABILIZER BAR, NO.1
48817CUSHION, FRONT STABILIZER
48817ARETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)
48819ABOLT, FRONT STABILIZER
48824BRACKET, STABILIZER, FRONT
9161160822
main91611-60822
9418210800
main94182-10800
20 parts on this diagram · 1 diagram in section
