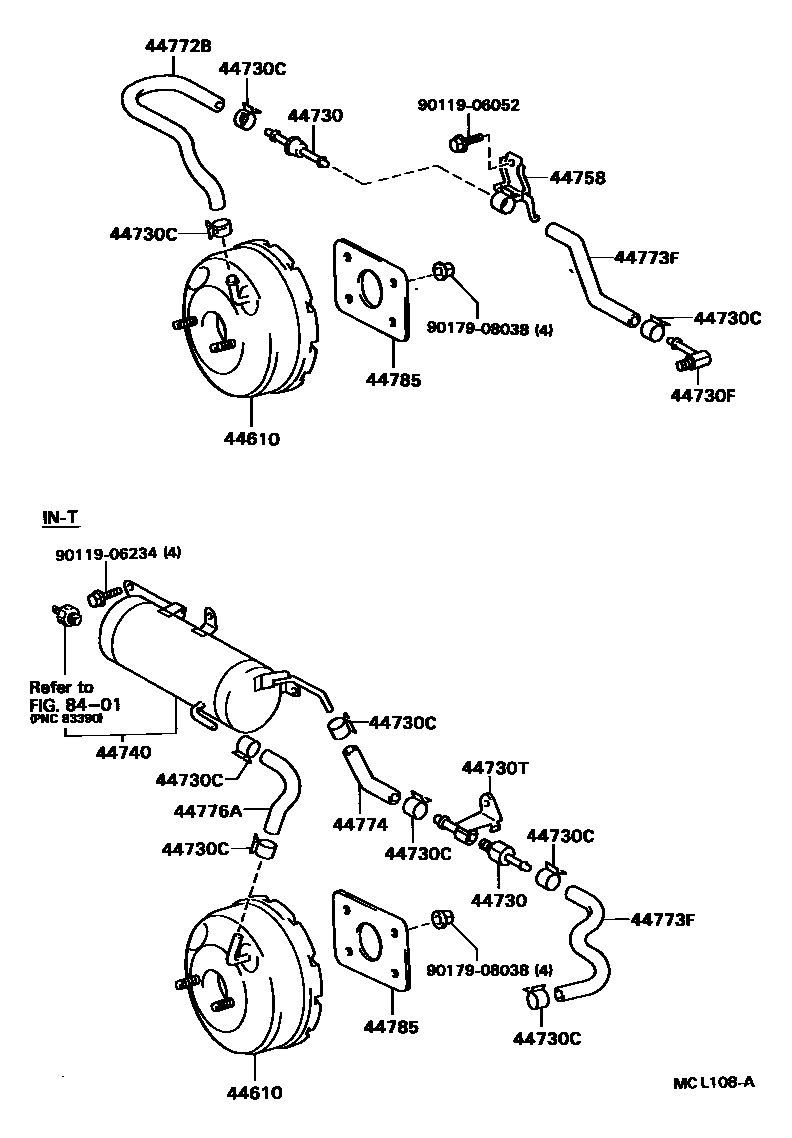

BRAKE BOOSTER & VACUUM TUBE

44610BOOSTER ASSY, BRAKE

main44610-16251iNL40199009-199208

main44610-16260iEL45;EL43..EFIS199009-199208

main44610-16280iNL40199009-199208

main44610-16290iEL41,43; EL45199009-199208

main44610-16440iEL41,43..EFI199009-199208

main44610-16460iNL40199208-199409

main44610-16470iNL40199208-199409

main44610-16490iEL41,43; EL45199208-199409

main44610-16500iEL4#199208-199409

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-10010iEL4#199009-199409

main44730-60050iNL40199009-199409

44730CCLIP(FOR VACUUM HOSE)

main90467-16002×3iEL4#; NL40199009-199409

44730FUNION, VACUUM HOSE(FOR MANIFOLD SIDE)

main90407-51002iEL4#199009-199409

44730TUNION(FOR VACUUM CHECK VALVE)

main90404-52032iNL40199009-199409

44740RESERVOIR ASSY, VACUUM

main44740-16020iNL40199009-199409

44758BRACKET, VACUUM CHECK VALVE

main44758-16070iEL4#199009-199409

44772BHOSE, CHECK VALVE TO BRAKE BOOSTER

main44772-16100iEL4#199009-199409

44773FHOSE, UNION TO CHECK VALVE

main44773-16090iEL4#..EFI199009-199409

main44773-16100iEL43..EFIS199009-199409

main44773-16110iNL40199009-199409

44774HOSE, UNION TO CONNECTOR TUBE

main44774-16030iNL40199009-199409

44776AHOSE, VACUUM RESERVOIR TO BRAKE BOOSTER

main44776-16020iNL40199009-199409

44785GASKET, BRAKE BOOSTER

main44785-10020iEL4#,NL40199009-199409

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011906052

main90119-06052

9011906234

main90119-06234

9017908038

main90179-08038

16 parts on this diagram · 1 diagram in section
