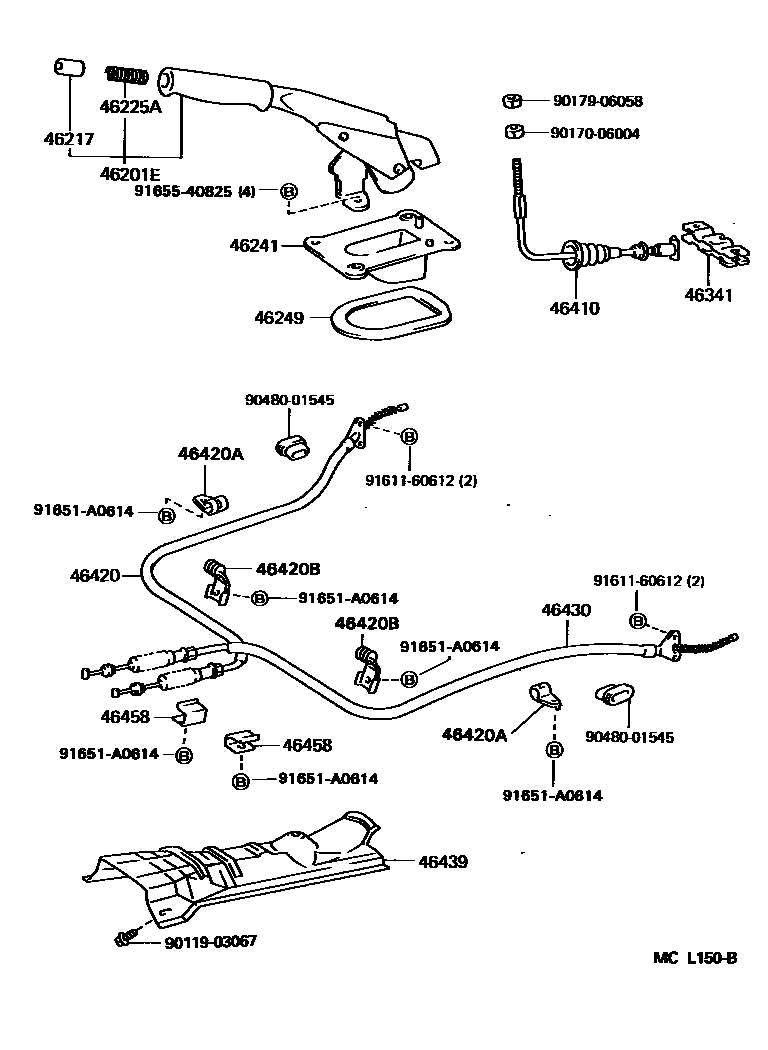

PARKING BRAKE & CABLE

0001 1 0002 1

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-10100-01iEL45199009-199409

BLACK,TRIM2#

sub46201-10100

main46201-10100-04iEL45199009-199409

GRAISH BLUE,TRIM8#

sub46201-10100

main46201-10100-07iEL45199009-199409

SPRUCE,TRIM6#

sub46201-10100

main46201-16060-01iEL41,43,NL40199009-199409

BLACK,TRIM2#

sub46201-10091

sub46201-16060

main46201-16060-04iEL41,43,NL40199009-199409

GRAISH BLUE,TRIM8#

sub46201-10091

sub46201-16060

main46201-16060-07iEL41,43,NL40..LIM,SR,WIN,ZS199009-199409

SPRUCE,TRIM6#

sub46201-10091

sub46201-16060

46217KNOB, PARKING BRAKE RELEASE ROD

main46217-12020-11iEL4#,NL40199009-199208

BLACK,TRIM2#

sub46217-12020

sub46217-16030

main46217-12020-17iEL4#,NL40..LIM,SR,WIN,ZS199009-199409

SPRUCE,TRIM6#

sub46217-12020

sub46217-16030

main46217-12020-34iEL4#,NL40199009-199409

GRAISH BLUE,TRIM8#

sub46217-12020

sub46217-16030

main46217-12020-C0iEL4#,NL40199208-199409

GRAY,TRIM2#

sub46217-12020

sub46217-16030

46225ASPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD)

main90501-10069iEL4#,NL40199009-199409

46241BOOT, PARKING BRAKE LEVER

main46241-10030iEL41,43,NL40199009-199409

46249SHIELD, PARKING BRAKE HOLE

main46249-32010iEL41,43,NL40199009-199409

46341EQUALIZER, PARKING BRAKE

main46341-10020iEL45199009-199409

main46341-12020iEL41,43,NL40199208-199409

main46341-16020iEL41,43,NL40199009-199208

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-10080iEL41,43,NL40199009-199208

main46410-10100iEL41,43,NL40199208-199409

main46410-16040iEL45199009-199409

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-16120iEL41,43,NL40199009-199208

main46420-16140iEL45199009-199208

main46420-16160iEL41,43,NL40199208-199409

main46420-16190iEL45199208-199409

46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)

main90461-10641iEL4#,NL40199009-199409

46420BCLAMP, NO.2(FOR PARKING BRAKE CABLE)

main90949-01585iEL4#,NL40199009-199409

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-16120iEL41,43,NL40199009-199208

main46430-16140iEL45199009-199208

main46430-16160iEL41,43,NL40199208-199409

main46430-16190iEL45199208-199409

46439INSULATOR, PARKING BRAKE CABLE HEAT

main46439-16020iEL41,43199009-199403

main46439-16021iEL41,43199403-199409

46458RETAINER, CABLE

main46458-50010iEL41,43,NL40199009-199409

9011903067

main90119-03067

9017006004

main90170-06004

9017906058

main90179-06058

9048001545

main90480-01545

9161160612

main91611-60612

91651A0614

main91651-A0614

9165540825

main91655-40825

20 parts on this diagram · 2 diagrams in section
