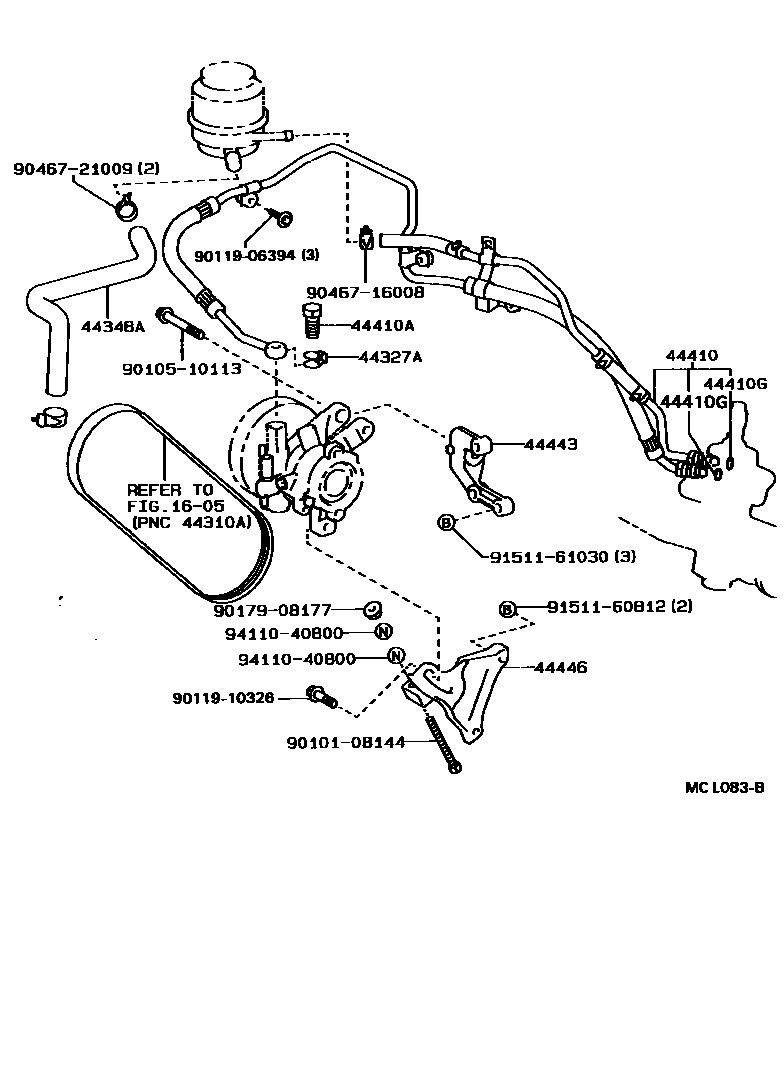

POWER STEERING TUBE

0001 1 0002 1

1605

44327AGASKET, PRESSURE PORT, NO.1

main44327-12010iEL4#,NL40..LIM,SR,WIN,ZS199208-199409

main44327-12010iEL4#,NL40199009-199208

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-16050iEL43;EL45..4FC199009-199409

main44348-16060iNL40199009-199409

main44348-16090iEL41199009-199208

main44348-16090iEL41..TX199208-199409

main44348-16110iEL45..5F199009-199409

44410TUBE ASSY, PRESSURE FEED

main44410-16130iEL43..EFI;EL45..4FC199009-199110

sub44410-16131

main44410-16131iEL43..EFI;EL45..4FC199110-199409

main44410-16140iNL40199009-199010

sub44410-16141

main44410-16141iNL40199010-199110

sub44410-16142

main44410-16142iNL40199110-199409

main44410-16180iEL43..EFIS199009-199110

sub44410-16181

main44410-16181iEL43..EFIS199201-199409

main44410-16190iEL41199009-199110

sub44410-16191

main44410-16191iEL41..TX199208-199409

main44410-16191iEL41199110-199208

main44410-16210iEL45..5F199009-199110

sub44410-16211

main44410-16211iEL45..5F199110-199409

44410ABOLT, UNION(FOR PRESSURE FEED TUBE)

main90401-16008iEL41..TX199208-199212

main90401-16012iEL41..TX199212-199409

main90401-16017iEL4#,NL40199009-199208

sub90401-16008

44410GRING, O(FOR PRESSURE FEED TUBE)

main90301-07009iEL4#,NL40199009-199208

main90301-07009iEL4#,NL40..LIM,SR,WIN,ZS199208-199409

44443BRACKET, PUMP

main44443-10030iEL41..TX199208-199409

main44443-10030iEL4#199009-199208

main44443-16030iNL40199009-199409

44446STRUT, ADJUSTING

main44446-10040iEL41199009-199201

sub44446-10050

main44446-10050iEL41..LIM,WIN199208-199409

main44446-10050iEL41199201-199208

main44446-16050iEL43,45199009-199012

sub44446-16051

main44446-16051iEL43,45199012-199409

9010108144

main90101-08144

9010510113

main90105-10113

9011906394

main90119-06394

9011910326

main90119-10326

9017908177

main90179-08177

9046716008

main90467-16008

9046721009

main90467-21009

9151160812

main91511-60812

9151161030

main91511-61030

9411040800

main94110-40800

18 parts on this diagram · 2 diagrams in section
