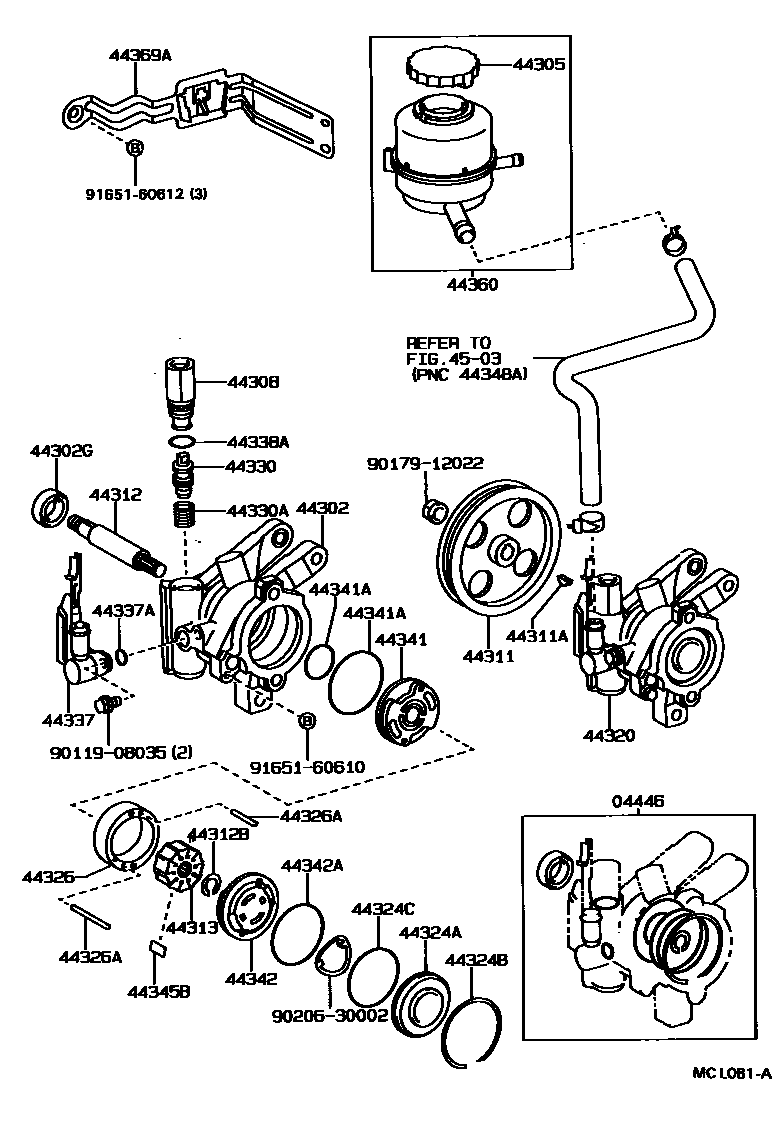

VANE PUMP & RESERVOIR (POWER STEERING)

0001 1 0002 1

04446GASKET KIT, POWER STEERING PUMP

main04446-16040iEL4#199009-199208

sub04446-10020

main04446-16040iEL41..TX199208-199409

sub04446-10020

main04446-16060iNL40199009-199409

sub04446-16061

44302HOUSING SUB-ASSY, VANE PUMP, FRONT

main44302-12120iEL41..TX199208-199409

main44302-12120iEL4#199009-199208

main44302-16030iNL40199009-199409

44302GSEAL, OIL, NO.2(FOR VANE PUMP HOUSING)

main90311-18007iEL4#,NL40199009-199208

main90311-18007iEL4#,NL40..LIM,SR,WIN,ZS199208-199409

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-22030iEL4#,NL40199009-199208

sub44305-22050

main44305-22030iEL4#,NL40..LIM,SR,WIN,ZS199208-199409

sub44305-22050

44308UNION SUB-ASSY, PRESSURE PORT

main44308-16050iEL43..EFIS199009-199208

main44308-20050iEL4#,NL40..DSL,EFI199009-199208

main44308-20050iEL4#,NL40..LIM,SR,WIN,ZS199208-199409

44311PULLEY, VANE PUMP

main44311-10030iEL41..TX199208-199409

main44311-10030iEL4#199009-199208

main44311-12030iNL40199009-199409

44311AKEY, VANE PUMP PULLEY

main90280-05008iEL41..TX199208-199409

main90280-05008iEL4#,NL40199009-199208

44312SHAFT, VANE PUMP

main44312-12030iEL4#,NL40..LIM,SR,WIN,ZS199208-199409

main44312-12030iEL4#,NL40199009-199208

44312BRING, SNAP, NO.1(FOR VANE PUMP SHAFT)

main90520-10003iEL4#,NL40199009-199208

main90520-10003iEL4#,NL40..LIM,SR,WIN,ZS199208-199409

44313ROTOR, VANE PUMP

main44313-22040iEL41..TX199208-199409

main44313-22040iEL4#,NL40199009-199409

main44313-22050iEL4#,NL40199009-199409

main44313-22050iEL4#,NL40..LIM,SR,WIN,ZS199208-199409

main44313-22060iEL4#,NL40..LIM,SR,WIN,ZS199009-199409

main44313-22060iEL41..TX199208-199409

main44313-22070iEL41..TX199009-199409

main44313-22070iEL4#,NL40..LIM,SR,WIN,ZS199208-199409

main44313-22080iEL4#,NL40199009-199409

main44313-22080iEL4#,NL40..LIM,SR,WIN,ZS199208-199409

44320PUMP ASSY, VANE

main44320-16150iEL41..LIM,WIN199208-199409

main44320-16150iEL41199009-199208

main44320-16160iEL43..EFI199009-199409

sub44320-16161

main44320-16170iEL43..EFIS199009-199208

main44320-16180iNL40199009-199409

main44320-16190iEL45199009-199409

44324AHOUSING, PUMP, REAR

main44324-12031iEL4#,NL40199009-199208

main44324-12031iEL4#,NL40..LIM,SR,WIN,ZS199208-199409

44324BRING, HOLE SNAP(FOR PUMP HOUSING REAR)

main90521-62002iEL4#,NL40199009-199208

main90521-62002iEL4#,NL40..LIM,SR,WIN,ZS199208-199409

44324CRING, O(FOR PUMP HOUSING REAR)

main90301-52001iEL4#,NL40199009-199409

44326RING, CAM(FOR VANE PUMP)

main44325-12110iEL4#,NL40199009-199409

main44325-12110iEL41..TX199208-199409

main44325-12120iEL4#,NL40..LIM,SR,WIN,ZS199208-199409

main44325-12120iEL41..TX199009-199409

main44325-12130iEL4#,NL40..LIM,SR,WIN,ZS199208-199409

main44325-12130iEL4#,NL40199009-199409

main44325-12140iEL4#,NL40..LIM,SR,WIN,ZS199009-199409

main44325-12140iEL4#,NL40..LIM,SR,WIN,ZS199208-199409

main44325-12150iEL41..TX199208-199409

main44325-12150iEL4#,NL40..LIM,SR,WIN,ZS199009-199409

44326APIN, STRAIGHT(FOR VANE PUMP CAM RING)

main90250-04047iEL4#,NL40..LIM,SR,WIN,ZS199009-199409

main90250-04047iEL41..TX199208-199409

main90250-04049iEL41..TX199208-199409

main90250-04049iEL4#,NL40199009-199409

44330VALVE ASSY, FLOW CONTROL

main44330-12071iEL41..TX199208-199409

main44330-12071iEL41..LIM,WIN199009-199409

main44330-12081iEL41199009-199409

main44330-12081iEL41..TX199208-199409

main44330-12091iEL41..LIM,WIN199009-199409

main44330-12091iEL41..LIM,WIN199208-199409

main44330-12101iEL41..TX199208-199409

main44330-12101iEL41199009-199409

main44330-12111iEL41..TX199208-199409

main44330-12111iEL41199009-199409

main44330-12121iEL41..LIM,WIN199009-199409

main44330-12121iEL41..TX199208-199409

main44330-20010iEL43,NL40199009-199409

sub44330-35191

main44330-20020iEL43,NL40199009-199409

sub44330-35201

main44330-20030iEL43,NL40..DSL,EFI199009-199409

sub44330-35211

main44330-20040iEL43,NL40..DSL,EFI199009-199409

sub44330-35221

main44330-20050iEL43,NL40..DSL,EFI199009-199409

sub44330-35231

main44330-20060iEL43,NL40..DSL,EFI199009-199409

sub44330-35241

main44330-20070iEL45199009-199409

sub44330-32730

main44330-20080iEL45199009-199409

sub44330-32740

main44330-20090iEL45199009-199409

sub44330-32750

main44330-20100iEL45199009-199409

sub44330-32760

main44330-20110iEL45199009-199409

sub44330-32770

main44330-20120iEL45199009-199409

sub44330-32780

main44330-32070iEL43..EFIS199009-199208

sub44330-35191

main44330-32080iEL43..EFIS199009-199208

sub44330-35201

main44330-32090iEL43..EFIS199009-199208

sub44330-35211

main44330-32100iEL43..EFIS199009-199208

sub44330-35221

main44330-32110iEL43..EFIS199009-199208

sub44330-35231

main44330-32120iEL43..EFIS199009-199208

sub44330-35241

44330ASPRING, COMPRESSION(FOR FLOW CONTROL VALVE)

main90501-12103iEL4#,NL40199009-199208

main90501-12103iEL4#,NL40..LIM,SR,WIN,ZS199208-199409

44337UNION, POWER STEERING SUCTION PORT

main44337-16041iEL4#..LIM,SR,WIN,ZS199208-199409

main44337-16041iEL4#199009-199208

main44337-16051iNL40199009-199409

44337ARING, O(FOR POWER STEERING SUCTION PORT)

main90301-12003iEL4#,NL40..LIM,SR,WIN,ZS199208-199409

sub90301-11016

main90301-12003iEL4#,NL40199009-199208

sub90301-11016

44338ARING, O(FOR PRESSURE PORT UNION)

main90301-19003iEL4#,NL40199009-199409

sub90301-19013

main90301-19003iEL4#,NL40..LIM,SR,WIN,ZS199208-199409

sub90301-19013

44341PLATE, VANE PUMP SIDE, FRONT

main44341-32010iEL4#,NL40199009-199208

main44341-32010iEL4#,NL40..LIM,SR,WIN,ZS199208-199409

44341ARING, O(FOR VANE PUMP FRONT SIDE PLATE)

main90301-25001iEL4#,NL40199009-199409

sub90301-25008

main90301-52001iEL4#,NL40199009-199409

44342PLATE, VANE PUMP SIDE, REAR

main44342-32010iEL41..TX199208-199409

main44342-32010iEL4#,NL40199009-199208

44342ARING, O(FOR VANE PUMP SIDE PLATE REAR)

main90301-52001iEL4#,NL40199009-199409

44345BPLATE, VANE PUMP

main44345-12010iEL41..TX199009-199409

main44345-12010iEL4#,NL40..LIM,SR,WIN,ZS199208-199409

main44345-12020iEL4#,NL40..LIM,SR,WIN,ZS199208-199409

main44345-12020iEL41..TX199009-199409

main44345-12030iEL41..TX199009-199409

main44345-12030iEL4#,NL40..LIM,SR,WIN,ZS199208-199409

main44345-12040iEL41..TX199208-199409

main44345-12040iEL4#,NL40199009-199409

main44345-12050iEL4#,NL40199009-199409

main44345-12050iEL4#,NL40..LIM,SR,WIN,ZS199208-199409

44360RESERVOIR ASSY, VANE PUMP OIL

main44360-10040iEL4#,NL40199009-199208

main44360-10040iEL4#,NL40..LIM,SR,WIN,ZS199208-199409

44369ABRACKET, OIL RESERVOIR, NO.1

main44369-10030iEL41..TX199208-199409

main44369-10030iEL4#,NL40199009-199208

4503

9011908035

main90119-08035

9017912022

main90179-12022

9020630002

main90206-30002

9165160610

main91651-60610

9165160612

main91651-60612

34 parts on this diagram · 2 diagrams in section
