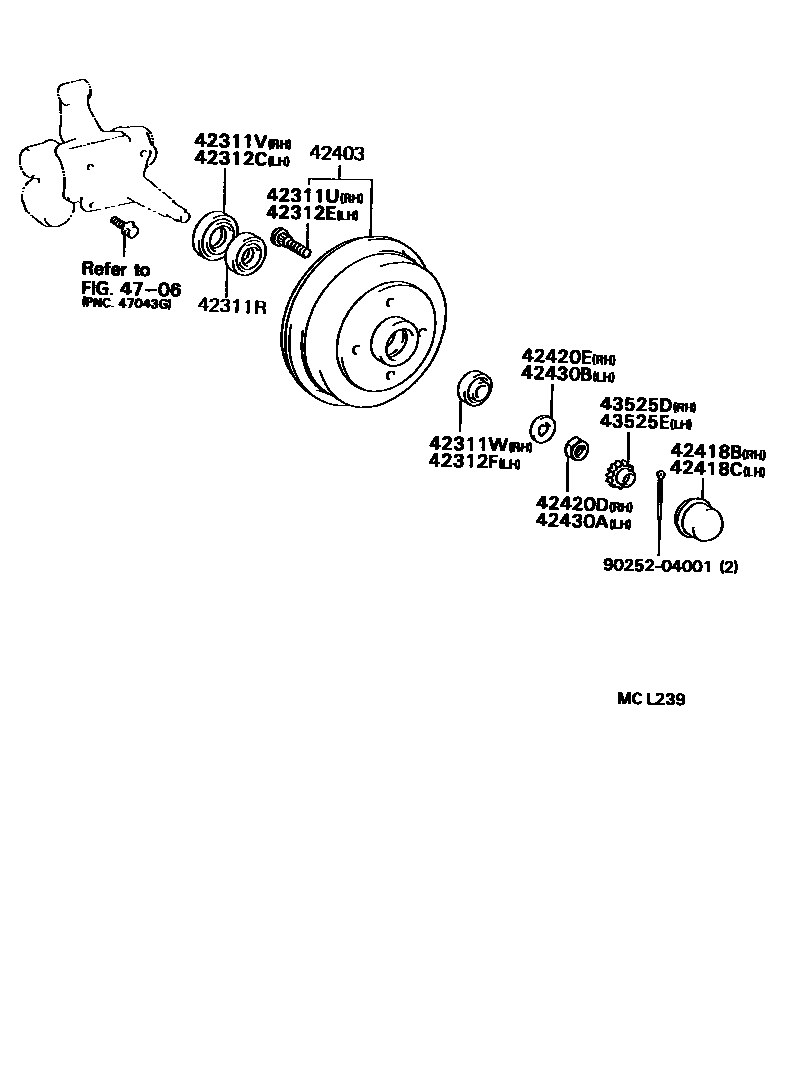

REAR AXLE SHAFT & HUB

0001 1 0002 1

42311RBEARING(FOR REAR AXLE SHAFT INNER)

main90366-27001×2iEL41,43,NL40199009-199409

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02047×4iEL4#,NL40199009-199409

42311VSEAL, OIL(FOR REAR AXLE SHAFT RH)

main90311-38037iEL41,43,NL40199009-199409

main90311-42055iEL45199009-199409

42311WBEARING(FOR REAR AXLE SHAFT OUTER RH)

main90368-17017iEL41,43,NL40199009-199409

42312SHAFT, REAR AXLE, LH

main42311-16050iEL45199009-199409

main42311-16060iEL45199009-199409

42312CSEAL, OIL(FOR REAR AXLE SHAFT LH)

main90311-38037iEL41,43,NL40199009-199409

main90311-42055iEL45199009-199409

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02047×4iEL4#,NL40199009-199409

42312FBEARING(FOR REAR AXLE SHAFT OUTER LH)

main90368-17017iEL41,43,NL40199009-199409

42403DRUM SUB-ASSY, REAR BRAKE

main42043-10010×2iEL41,43,NL40199009-199207

main42043-10030×2iEL41,43,NL40199207-199409

main42403-10020×2iEL41,43,NL40199009-199207

main42403-10060×2iEL41,43,NL40199207-199208

main42403-19015×2iEL41,43,NL40199208-199409

main42431-16040×2iEL45199009-199108

main42431-16060×2iEL45199108-199409

42418BCAP, REAR HUB GREASE, RH

main43514-10030iEL41,43,NL40199009-199409

42418CCAP, REAR HUB GREASE, LH

main43514-10030iEL41,43,NL40199009-199409

42420DNUT (FOR REAR AXLE SHAFT RH)

main90170-16137iEL41,43,NL40199009-199201

main94125-41600iEL41,43,NL40199201-199409

42420EWASHER, CLAW (FOR REAR AXLE SHAFT RH)

main90214-16010iEL41,43,NL40199009-199409

42430ANUT (FOR REAR AXLE SHAFT LH)

main90170-16137iEL41,43,NL40199009-199201

main94125-41600iEL41,43,NL40199201-199409

42430BWASHER, CLAW (FOR REAR AXLE SHAFT LH)

main90214-16010iEL41,43,NL40199009-199409

43525DCAP, REAR WHEEL ADJUSTING LOCK, RH

main43525-20011iEL41,43,NL40199009-199409

43525ECAP, REAR WHEEL ADJUSTING LOCK, LH

main43525-20011iEL41,43,NL40199009-199409

4706REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

→ Go to FIG 47-06

9025204001

main90252-04001

19 parts on this diagram · 2 diagrams in section
