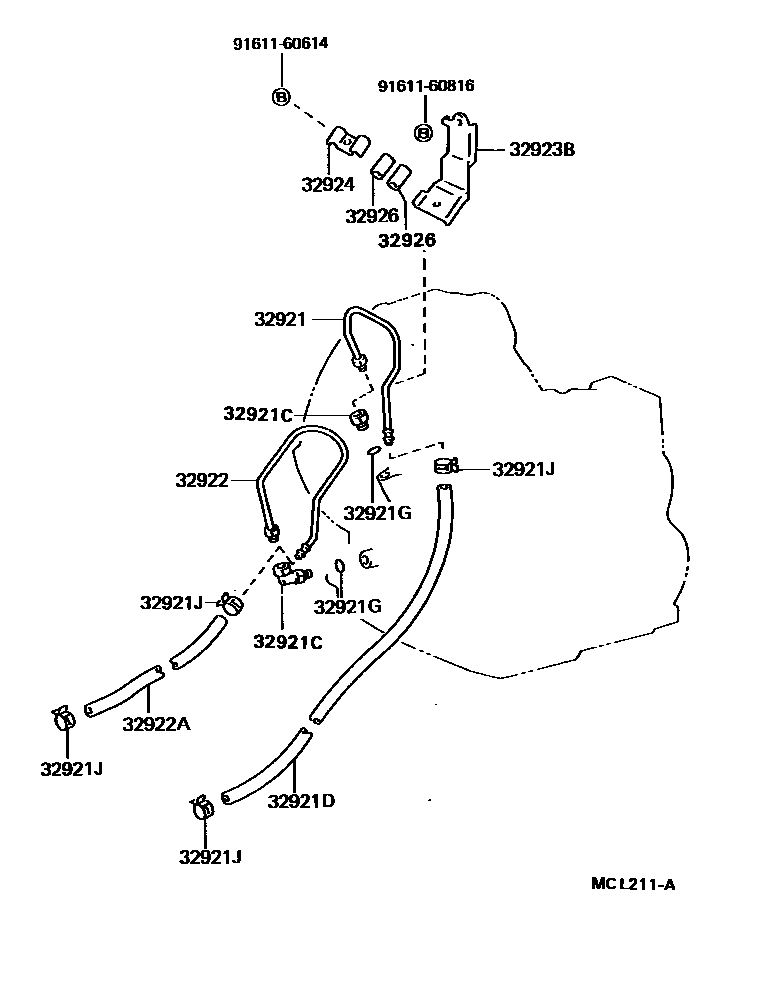

OIL COOLER & TUBE (ATM)

0001 1A132 0002 1A242L,A244L,A244E 0003 1A244F

32921TUBE, OIL COOLER INLET, NO.1

main32921-10070iEL41..3FC199009-199409

main32921-10080iEL43..4FC199009-199409

main32921-16080iNL40..4FC199009-199409

main32921-16090iEL45..4FC199009-199409

32921CUNION(FOR OIL COOLER TUBE)

main90404-14007iEL41..3FC; EL45..4FC199009-199208

INLET; OUTLET

main90407-14003iEL41..3FC199009-199409

OUTLET

main90407-16015iEL45..4FC199009-199208

INLET

main90407-16032iEL45..4FC199208-199409

OUTLET

32921DHOSE(FOR OIL COOLER INLET)

main90445-15045iEL41..3FC199212-199409

main90445-15046iEL43,45..4FC199009-199409

main90445-15051iNL40..4FC199009-199409

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189×2iEL41,43,NL40..ATM; EL45..4FC199009-199208

ID=10.51,OD=12.34

main90301-15004iEL45..4FC199009-199208

ID=15.41,OD=17.62

32921JCLIP(FOR OIL COOLER HOSE)

main90467-13039×4iEL4#,NL40..ATM199009-199409

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-10070iEL41..3FC199009-199409

main32922-10080iEL43,45,NL40..4FC199009-199409

32922AHOSE(FOR OIL COOLER OUTLET)

main90445-15042iEL43,45,NL40..4FC199009-199409

main90445-15046iEL41..3FC199009-199409

32923BCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1

main32923-16060iEL41..3FC199009-199409

main90462-10082×2iEL43,45,NL40..4FC199009-199409

32924CLAMP, OIL COOLER TUBE, NO.2

main90462-12085iEL41..3FC199009-199409

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-10010×2iEL4#,NL40..ATM199009-199409

9161160614

main91611-60614

9161160816

main91611-60816

12 parts on this diagram · 3 diagrams in section
