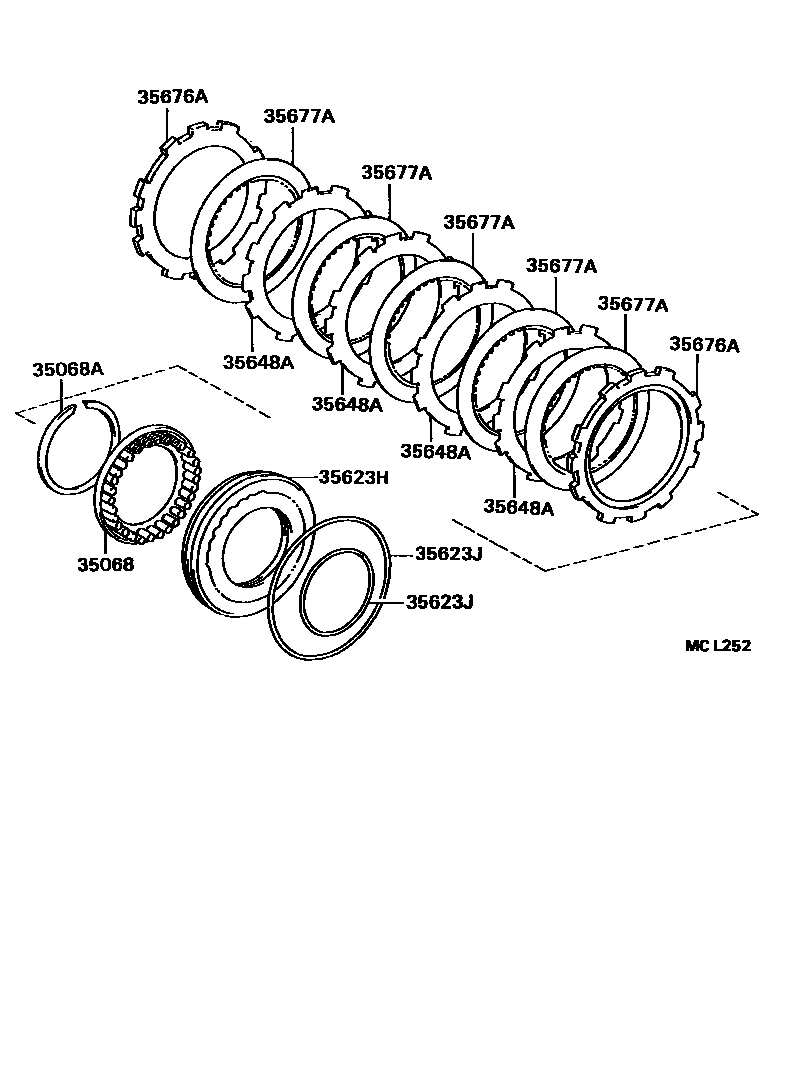

BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)

35068SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN

main35068-32010iEL4#,NL40..ATM199009-199409

35068ARING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING)

main90520-90001iEL4#,NL40..ATM199009-199409

35623HPISTON, 1ST & REVERSE BRAKE

main35623-12010iEL43,NL40..4FC199009-199203

main35623-12040iEL43,NL40..4FC199308-199409

main35623-12050iEL45..4FC199308-199409

main35623-20010iEL45..4FC199009-199203

main35623-32010iEL41..3FC199203-199404

main35623-32020iEL41..3FC199009-199203

main35623-32050iEL41..3FC199404-199409

35623JRING, O (FOR 1ST & REVERSE BRAKE)

main90301-94001iEL4#,NL40..ATM199009-199409

main90301-99022iEL4#,NL40..ATM199009-199409

35648APLATE, CLUTCH (FOR 1ST & REVERSE BRAKE)

main35648-32020×5iEL41,45..ATM;EL43..4FC..EFIS; EL43,NL40..4FC..(DSL,EFI)199203-199208

35676AFLANGE, BRAKE (FOR 1ST & REVERSE BRAKE)

main35676-32010iEL41..3FC; EL43,45,NL40..4FC199308-199404

35677ADISC, CLUTCH (FOR 1ST & REVERSE BRAKE)

main35677-12040×5iEL43,NL40..4FC; EL45..4FC199208-199311

main35677-12060×5iEL43,NL40..4FC; EL45..4FC199311-199409

main35677-32040×5iEL41..3FC199009-199203

main35677-32060×6iEL41..3FC199404-199409

7 parts on this diagram · 1 diagram in section
