TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

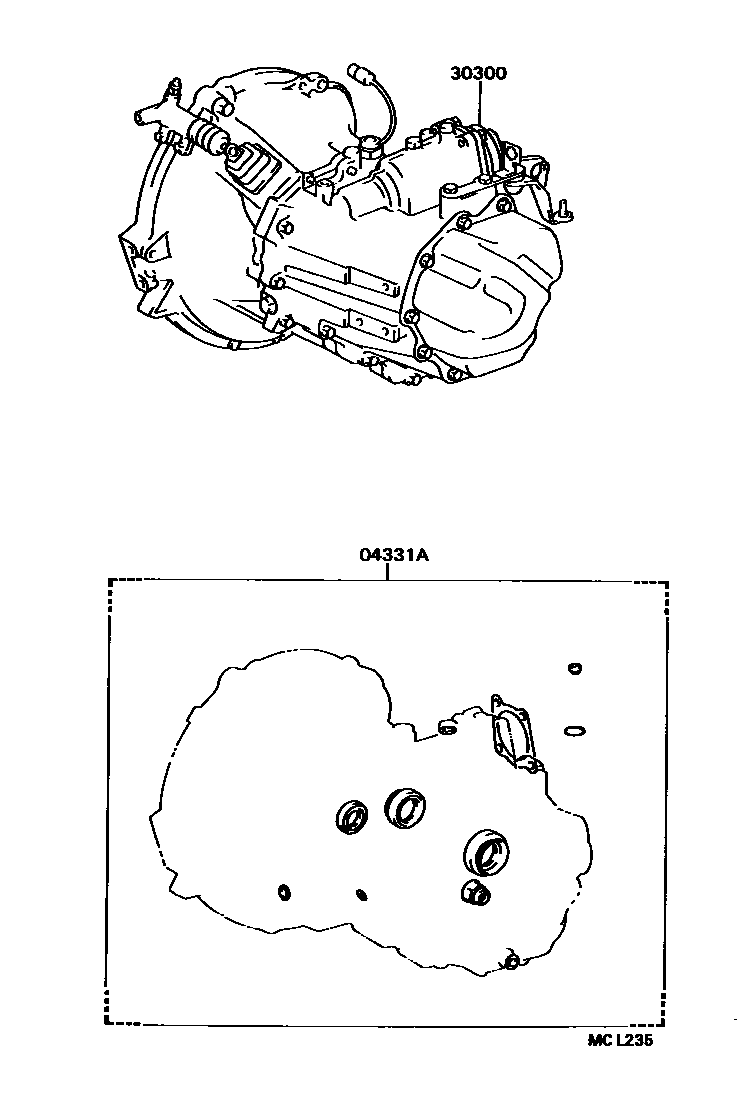

Parts diagram

04331AGASKET KIT, TRANSAXLE OVERHAUL(MTM)

main04331-12080i199009-199409

30300TRANSAXLE ASSY, MANUAL

main30300-16480i199009-199405

main30300-16481i199405-199409

main30300-16500i199009-199405

main30300-16501i199405-199409

main30300-16510i199009-199405

main30300-16511i199405-199409

main30300-16520i199009-199405

main30300-16521i199405-199409

main30300-16550i199009-199408

main30300-16551i199408-199409

2 parts on this diagram · 1 diagram in section
