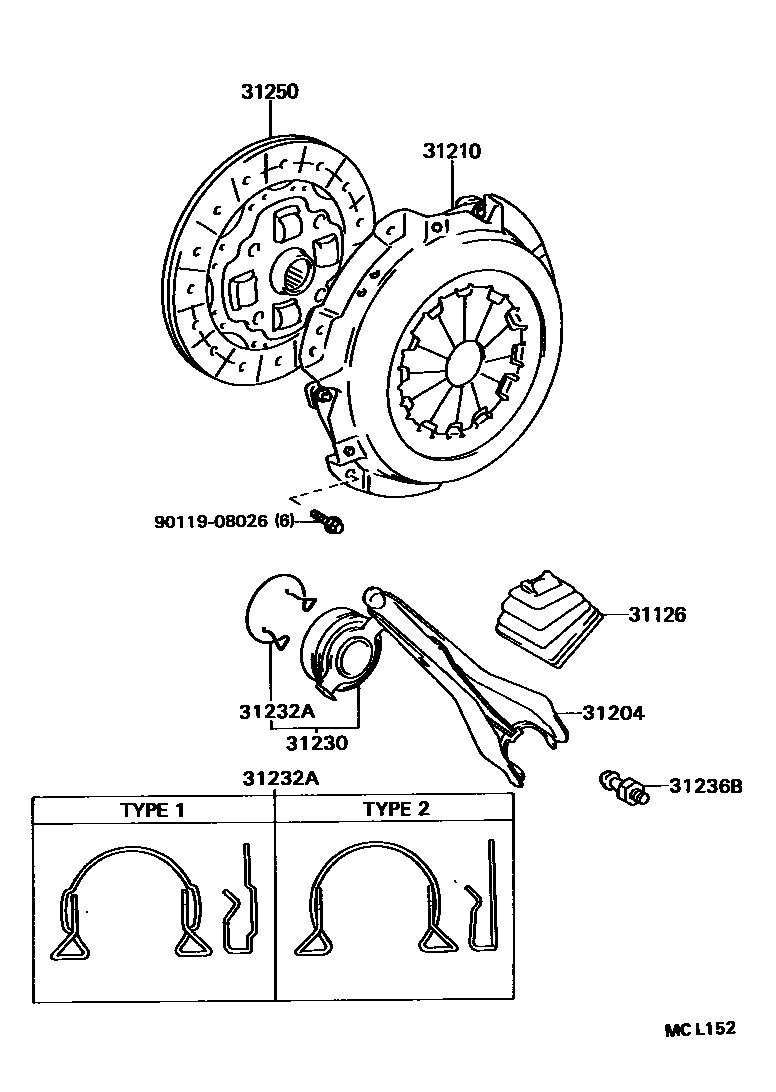

CLUTCH & RELEASE FORK

31126BOOT, CLUTCH RELEASE FORK

main31126-12051iEL4#,NL40..MTM199009-199409

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-12050iEL4#,NL40..MTM199009-199409

31210COVER ASSY, CLUTCH

main31210-12141iEL45..5F199009-199104

sub31210-12190

main31210-12190iEL45..5F199104-199409

sub31210-12191

main31210-12210iEL43,NL40..5F199104-199409

sub31210-12280

main31210-16071iEL41..4F199009-199409

sub31210-16130

main31210-16102iEL43,NL40..5F199009-199104

sub31210-12210

31230BEARING ASSY, CLUTCH RELEASE

main31230-12140iEL4#,NL40..MTM199009-199409

sub31230-16061

31232ACLIP, RELEASE BEARING HUB

main31232-12040iEL4#,NL40..MTM199009-199409

main31232-16031iEL4#,NL40..MTM199009-199409

31236BSUPPORT, RELEASE FORK

main31236-12011iEL4#,NL40..MTM199009-199409

31250DISC ASSY, CLUTCH

main31250-12156iEL45..5F199009-199104

sub31250-12310

main31250-12171iEL41..4F199009-199104

sub31250-12172

main31250-12172iEL41..4F199104-199106

sub31250-12173

main31250-12173iEL41..4F199106-199409

sub31250-12174

main31250-12201iEL43..5F199009-199104

sub31250-12290

main31250-12290iEL43..5F199104-199409

sub31250-12400

main31250-12310iEL45..5F199104-199409

sub31250-12380

main31250-16050iNL40..5F199009-199208

sub31250-16051

main31250-16051iNL40..5F199208-199409

sub31250-16052

9011908026

main90119-08026

8 parts on this diagram · 1 diagram in section
