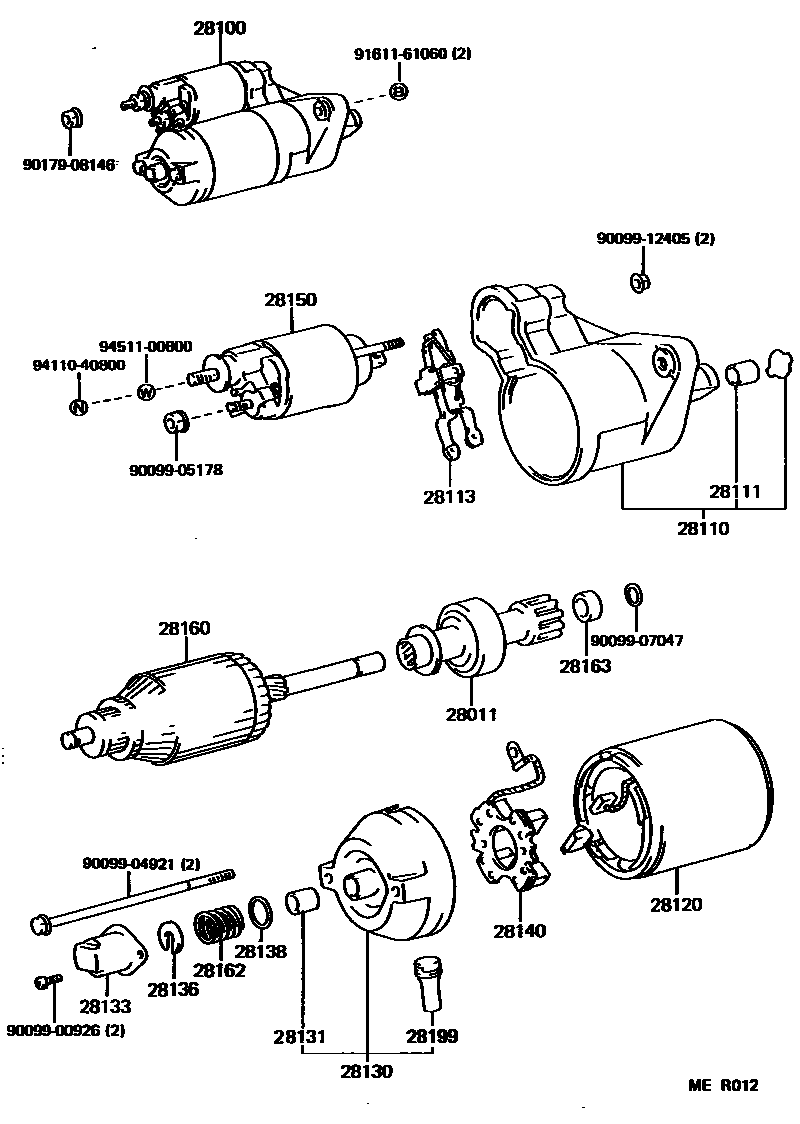

STARTER

0001 112V 0.8KW 0002 112V 0.8KW 0004 112V 1.0KW 0005 112V 1.4KW 0006 112V 1.4KW 0007 112V 2.0KW

28011CLUTCH SUB-ASSY, STARTER

main28011-10030i4EFE..EL41199009-199011

main28011-26042i4EFE,5EF#..EL4#199208-199409

main28011-26042i4EFE,5EF#..EL4#199009-199208

main28011-55010i1NT..NL40199009-199208

main28011-55020i1NT..NL40199009-199409

main28011-55050i1NT..NL40199208-199409

main28011-70020i5EF#..EL43,45199009-199409

28100STARTER ASSY

main28100-10030i4EFE..EL41199009-199011

sub28100-11010

main28100-10040i4EFE,5EF#..EL4#..3FC,4F,5F199208-199409

main28100-10040i4EFE,5EF#..EL4#..3FC,4F,5F199009-199208

main28100-10060i5EF#..EL43,45..4FC199208-199409

main28100-10060i5EF#..EL43,45..4FC199009-199208

main28100-11010i4EFE,5EF#..EL4#..3FC,4F,5F199009-199409

main28100-11020i5EF#..EL43,45..4FC199009-199409

main28100-55010i1NT..NL40199009-199208

sub28100-55020

main28100-55020i1NT..NL40199009-199208

main28100-55040i1NT..NL40199208-199409

sub28100-55060

main28100-55050i1NT..NL40199208-199409

sub28100-55060

28110HOUSING ASSY, STARTER DRIVE

main28110-10030i4EFE..EL41199009-199011

main28110-10040i4EFE,5EF#..EL4#..3FC,4F,5F199208-199409

main28110-10040i4EFE,5EF#..EL4#..3FC,4F,5F199009-199208

main28110-10060i5EF#..EL43,45..4FC199009-199208

main28110-10060i5EF#..EL43,45..4FC199208-199409

main28110-11010i5EF#..EL43,45..4FC199009-199409

main28110-11020i5EF#..EL43,45..4FC199009-199409

main28110-55010i1NT..NL40199009-199208

main28110-55050i1NT..NL40199208-199409

main28115-55020i1NT..NL40199009-199409

28111BUSH(FOR STARTER HOUSING)

main28111-51011i4EFE..EL41199009-199011

28113LEVER, STARTER PINION DRIVE

main28113-15011i4EFE..EL41199009-199011

main28113-16070i5EF#..EL43,45199009-199409

28120YOKE ASSY, STARTER

main28120-15010i4EFE..EL41199009-199011

main28120-15090i1NT..NL40199009-199208

main28120-26071i4EFE,5EF#..EL4#199208-199409

main28120-26071i4EFE,5EF#..EL4#199009-199208

main28120-55050i1NT..NL40199402-199409

main28120-64020i1NT..NL40199009-199409

main28120-64130i1NT..NL40199208-199402

main28120-70020i4EFE,5EF#..EL4#199009-199409

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-10030i4EFE..EL41199009-199011

sub28130-10050

main28130-10040i4EFE,5EF#..EL4#199208-199409

main28130-10040i4EFE,5EF#..EL4#199012-199208

main28130-11010i5EF#..EL43,45199009-199409

main28130-34060i4EFE,5EF#..EL4#199009-199012

main28130-55010i1NT..NL40199009-199208

main28130-55050i1NT..NL40199208-199409

28131BUSH, COMMUTATOR END FRAME

main90099-10134i4EFE..EL41199009-199011

28133COVER, BEARING(FOR END FRAME)

main28132-15010i4EFE..EL41199009-199011

sub28132-15011

28136PLATE, STARTER LOCK

main28136-15010i4EFE..EL41199009-199011

28138RUBBER(FOR STARTER BEARING COVER)

main28138-15010i4EFE..EL41199009-199011

28140HOLDER ASSY, STARTER BRUSH

main28140-15010i4EFE..EL41199009-199011

main28140-15090i1NT..NL40199009-199208

main28140-26070i4EFE,5EF#..EL4#199208-199409

main28140-26070i4EFE,5EF#..EL4#199009-199208

main28140-54070i1NT..NL40199009-199409

main28140-64130i1NT..NL40199208-199409

main28140-70020i4EFE,5EF#..EL4#199009-199409

28150SWITCH ASSY, MAGNET STARTER

main28150-10021i4EFE,5EF#..EL4#199009-199409

main28150-34060i4EFE,5EF#..EL4#199012-199208

sub28150-34080

main28150-34060i4EFE,5EF#..EL4#199208-199409

sub28150-34080

main28150-34080i4EFE,5EF#..EL4#199009-199012

main28150-37010i4EFE..EL41199009-199011

sub28150-37011

main28150-55010i1NT..NL40199009-199208

main28150-55020i1NT..NL40199009-199208

main28150-55040i1NT..NL40199208-199409

main28150-55050i1NT..NL40199208-199409

28160ARMATURE ASSY, STARTER

main28160-15010i4EFE..EL41199009-199011

main28160-15091i1NT..NL40199009-199208

main28160-26070i5EF#..EL43,45..4FC199208-199409

sub28160-26071

main28160-26071i4EFE,5EF#..EL4#199009-199208

main28160-26071i4EFE,5EF#..EL4#..3FC,4F,5F199208-199409

main28160-54070i1NT..NL40199009-199208

sub28160-54071

main28160-54071i1NT..NL40199208-199409

main28160-70021i4EFE,5EF#..EL4#199009-199409

main28160-74070i1NT..NL40199208-199409

28162SPRING, STARTER BRAKE

main28162-15010i4EFE..EL41199009-199011

28163NUT OR COLLAR, PINION STOP, STARTER

main28163-40011i4EFE..EL41199009-199011

main28163-70020i5EF#..EL43,45199009-199409

28199COVER, STARTER

main28199-10030i4EFE..EL41199009-199011

main28199-46080i1NT..NL40199208-199409

main28199-46080i5EF#..EL43,45199009-199409

main28199-72020i1NT..NL40199009-199208

main28199-74110i1NT..NL40199208-199409

main28199-77090i1NT..NL40199009-199208

9009900926

main90099-00926

9009904921

main90099-04921

9009905178

main90099-05178

9009907047

main90099-07047

9009912405

main90099-12405

9017908146

main90179-08146

9161161060

main91611-61060

9411040800

main94110-40800

9451100800

main94511-00800

26 parts on this diagram · 6 diagrams in section
