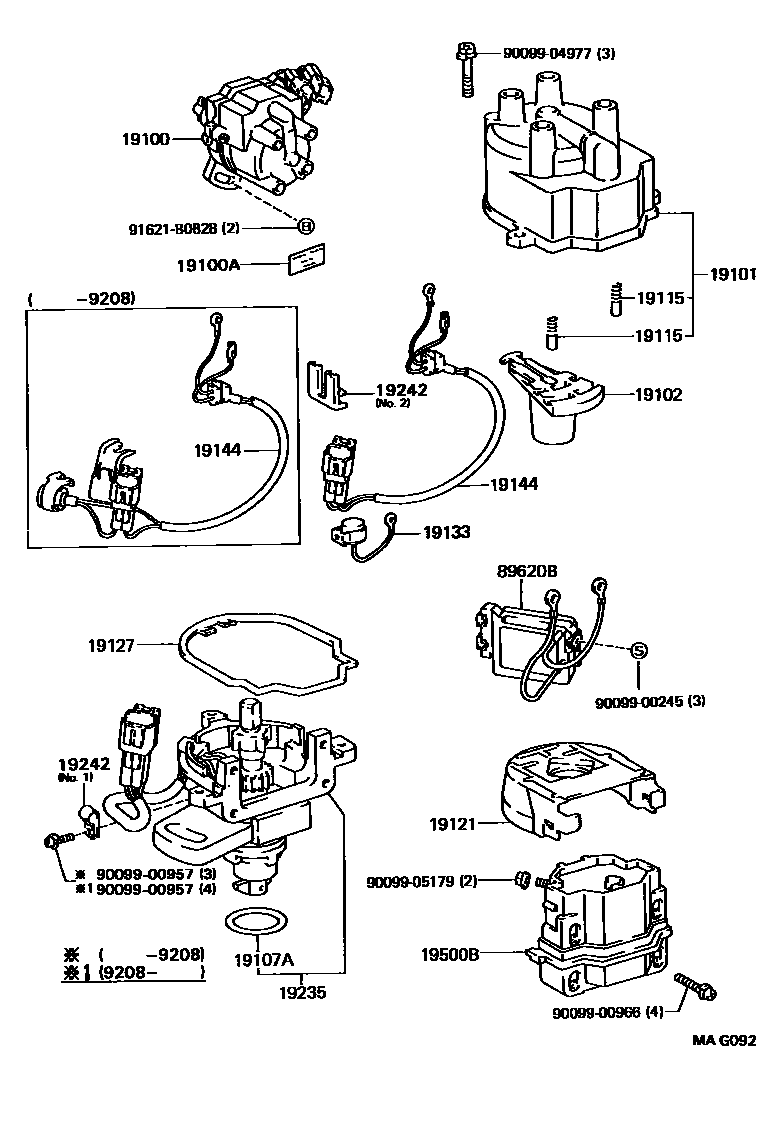

DISTRIBUTOR

0001 1 0002 1

19100DISTRIBUTOR ASSY

main19020-11270i4EFE,5EFE..EL4#199009-199208

main19020-11340i4EFE,5EFE..EL4#199208-199409

sub19020-11380

main19100-11080i5EFHE..EL43199009-199409

19100ATAPE, SEALING

main90919-24004i4EFE,5EF#..EL4#199009-199312

sub90919-24003

19101CAP SUB-ASSY, DISTRIBUTOR

main19101-11060i4EFE,5EFE..EL4#199208-199409

main19101-11080i5EFHE..EL43199009-199409

main19101-11240i4EFE,5EFE..EL4#199009-199208

19102ROTOR SUB-ASSY, DISTRIBUTOR

main19102-11031i4EFE,5EFE..EL4#199009-199409

sub19102-11370

main19102-74040i5EFHE..EL43199009-199409

19107ARING, O, DISTRIBUTOR HOUSING

main90099-14088i4EFE,5EF#..EL4#199009-199409

19115PIECE, DISTRIBUTOR CAP, CENTER

main19115-63010i4EFE,5EFE..EL4#199009-199409

main19115-88280i5EFHE..EL43199009-199409

19121COVER, DUST PROOF

main19121-11080i4EFE,5EFE..EL4#199009-199409

19127PACKING, DUST PROOF

main19127-15120i4EFE,5EFE..EL4#199009-199409

main19127-74040i5EFHE..EL43199009-199409

19133CONDENSER, DISTRIBUTOR

main19133-16240i4EFE,5EFE..EL4#199208-199409

19144LEAD, DISTRIBUTOR BREAKER

main19144-11240i4EFE,5EFE..EL4#199009-199208

main19144-11350i4EFE,5EFE..EL4#199208-199409

sub19144-11340

19235HOUSING, DISTRIBUTOR

main19235-11070i5EFHE..EL43199009-199409

main19235-11240i4EFE,5EFE..EL4#199009-199208

main19235-11340i4EFE,5EFE..EL4#199208-199409

19242CLAMP, CORD

main19242-11190i4EFE,5EFE..EL4#199208-199409

main19242-11190i4EFE,5EFE..EL4#199009-199208

main19242-11350i4EFE,5EFE..EL4#199208-199409

19500BCOIL ASSY, IGNITION

main90919-02164i4EFE,5EFE..EL4#199009-199409

89620BIGNITER ASSY

main89620-12410iEL4#..EFI199009-199201

sub89620-12440

main89620-12420iEL4#..EFI199009-199208

sub89620-16260

main89620-12420iEL4#..EFI199208-199409

sub89620-16260

main89620-12440iEL4#..EFI199201-199208

9009900245

main90099-00245

9009900957

main90099-00957

9009900966

main90099-00966

9009904977

main90099-04977

9009905179

main90099-05179

91621B0828

main91621-B0828

20 parts on this diagram · 2 diagrams in section
