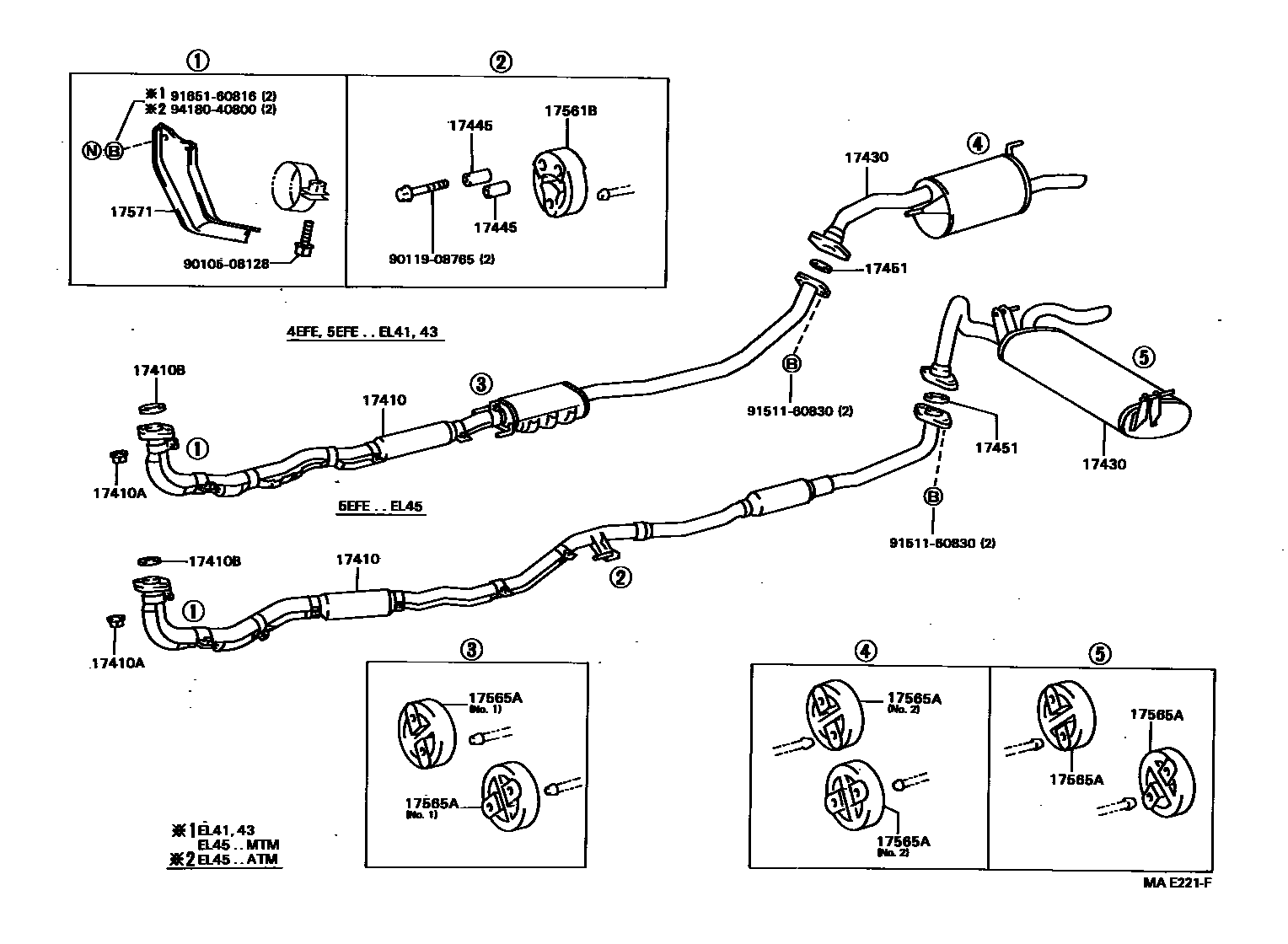

EXHAUST PIPE

0001 1 0003 1 0004 1

17410PIPE ASSY, EXHAUST, FRONT

main17410-11460i5EFHE..EL43199009-199409

main17410-11490i4EFE..EL41199009-199208

main17410-11500i5EFE..EL43199009-199012

main17410-11501i5EFE..EL43199012-199208

main17410-11520i5EFE..EL45..5F199009-199409

main17410-11530i5EFE..EL45..4FC199009-199409

main17410-11620i4EFE..EL41199208-199409

main17410-11630i5EFE..EL43199208-199409

main17410-55060i1NT..NL40199009-199409

17410ANUT, EXHAUST PIPE SET STUD BOLT

main90179-10070×2i4EFE,5EFE,1NT..EL4#,NL40199009-199409

17410BGASKET, EXHAUST PIPE

main90917-06061i4EFE,5EFE,1NT..EL4#,NL40199009-199409

17430PIPE ASSY, EXHAUST, TAIL

main17430-11490i4EFE..EL41199009-199208

main17430-11510i5EFE..EL43199009-199208

main17430-11530i5EFHE..EL43199009-199409

main17430-11550i5EFE..EL45199009-199409

main17430-11650i4EFE..EL41199208-199409

main17430-11670i5EFE..EL43199208-199409

main17430-55040i1NT..NL40199009-199409

17445COLLAR, EXHAUST PIPE

main17445-11050×2i5EFE..EL45199009-199409

17451GASKET, EXHAUST PIPE

main90917-06039i1NT..NL40199009-199409

main90917-06044×2i5EFHE..EL43199009-199208

main90917-06060i4EFE,5EFE..EL4#199009-199208

17561BSUPPORT, EXHAUST PIPE, NO.1

main17561-74110i5EFE..EL45199009-199409

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-11160×2i4EFE,5EF#,1NT..EL41,43,NL40199009-199405

main17565-16080×4i1NT..NL40199405-199409

main17565-74290×2i5EFE..EL45199009-199409

17571BRACKET, EXHAUST PIPE SUPPORT, NO.1

main17571-11020i4EFE,5EFE..EL41,43199009-199302

main17571-11130i5EFE..EL45..4FC199009-199409

main17571-11150i5EFE..EL45..5F199009-199409

main17571-11160i4EFE,5EFE..EL41,43199302-199409

main17571-11170i5EFHE..EL43199009-199409

main17571-55010i1NT..NL40199009-199409

9010508128

main90105-08128

9011908765

main90119-08765

9151160830

main91511-60830

9165160816

main91651-60816

9418040800

main94180-40800

14 parts on this diagram · 3 diagrams in section
