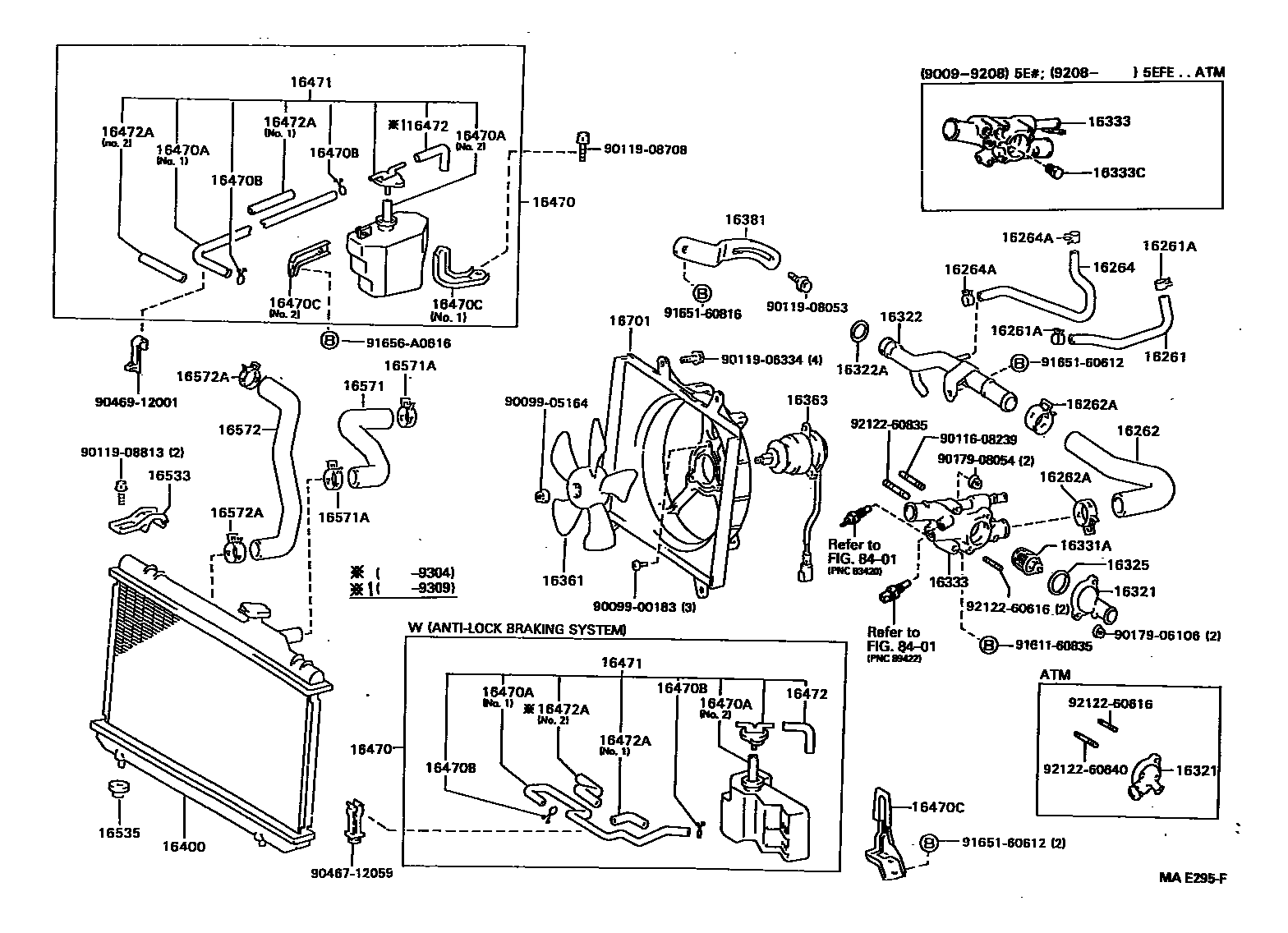

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

16261HOSE, WATER BY-PASS

main16261-11030i4EFE,5EFE..EL4#199009-199409

main16261-11050i5EFHE..EL43199009-199409

main16261-55040i1NT..NL40199009-199409

16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

main90467-11009i4EFE,5EF#..EL4#199009-199409

sub96135-51100

main90467-15022i1NT..NL40199009-199409

16262HOSE, WATER INLET

main16262-10010i4EFE,5EF#..EL4#..MTM199009-199409

sub16262-10011

main16262-10020i4EFE,5EF#..EL4#..ATM199009-199409

sub16262-10022

main16262-55010i1NT..NL40199009-199409

16262ACLIP(FOR WATER INLET HOSE)

main90467-34003i4EFE,5EF#..EL4#199009-199409

sub90467-34004

main90467-37001i1NT..NL40199009-199409

sub90467-37003

16264HOSE, WATER BY-PASS, NO.2

main16264-11050i4EFE,5EFE..EL4#199009-199407

main16264-11051i4EFE,5EFE..EL4#199407-199409

main16264-11060i5EFHE..EL43199009-199407

main16264-11061i5EFHE..EL43199407-199409

main16264-55010i1NT..NL40199009-199409

16264ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

main90467-11009i4EFE,5EF#..EL4#199009-199409

sub96135-51100

main90467-15022i1NT..NL40199009-199409

16321INLET, WATER

main16321-10011i4EFE,5EF#..EL4#..MTM199009-199409

main16321-11011i4EFE,5EF#..EL4#..ATM199009-199409

main16321-55010i1NT..NL40199009-199409

16322PIPE, WATER INLET

main16322-11160i4EFE,5EF#..EL4#199009-199201

sub16322-11161

main16322-11161i4EFE,5EF#..EL4#199201-199407

main16322-11162i4EFE,5EF#..EL4#199407-199409

main16322-55110i1NT..NL40199009-199409

main16322-55120i1NT..NL40..5F199009-199409

16322ARING, O(FOR WATER INLET)

main90301-31008i1NT..NL40199408-199409

main96711-35028i4EFE,5EF#..EL4#199009-199409

sub96761-35028

main96711-35031i1NT..NL40199009-199408

sub96761-35031

16325GASKET, WATER INLET HOUSING, NO.1

main16325-63010i4EFE,5EF#..EL4#199009-199301

sub16325-63011

main16325-63011i1NT..NL40199301-199409

16331OUTLET, WATER

main16304-55020i1NT..NL40199009-199409

16331ATHERMOSTAT

main90916-03046i4EFE,5EF#..EL4#199009-199409

16333HOUSING, WATER OUTLET

main16303-11180i4EFE,5EF#..EL4#..3FC,4F,5F199009-199101

sub16333-11120

main16303-11190i5EF#..EL43,45..4FC199009-199101

sub16333-11130

main16333-11120i4EFE,5EF#..EL4#..3FC,4F,5F199101-199409

main16333-11180i5EFE..EL43,45..4FC199101-199409

16333CPLUG, W/HEAD TAPER SCREW

main90345-53007i5EF#..EL43,45..4FC199101-199409

16361FAN

main16361-11020i4EFE,5EF#..EL4#..MTM199009-199409

main16361-55010i1NT..NL40..5F199009-199409

main16361-55030i1NT..NL40..4FC199009-199409

main16361-55040i1NT..NL40..4FC199009-199409

main16361-63020i4EFE,5EF#..EL4#..ATM199009-199409

sub16361-74070

16363MOTOR, COOLING FAN

main16363-11020i4EFE,5EF#..EL4#..MTM199009-199409

main16363-11030i4EFE,5EF#..EL4#..ATM199009-199409

main16363-55020i1NT..NL40..5F199009-199409

main16363-55030i1NT..NL40..4FC199009-199409

main16363-74060i1NT..NL40..5F199009-199409

16381BAR, FAN BELT ADJUSTING

main16381-11030i4EFE,5EF#..EL4#199009-199409

main16381-55010i1NT..NL40199009-199409

16400RADIATOR ASSY

main16400-11420i4EFE..EL41..4F199009-199409

main16400-11430i5EF#..EL43..5F199009-199409

sub16400-11500

main16400-11440i5EF#..EL43..4FC199009-199409

main16400-11450i4EFE..EL41..3FC199009-199409

main16400-11460i5EFE..EL45..4FC199009-199409

sub16400-11530

main16400-11490i5EFE..EL45..5F199009-199409

sub16400-11500

main16400-55090i1NT..NL40..5F199009-199409

main16400-55100i1NT..NL40..4FC199009-199409

16470TANK ASSY, RADIATOR RESERVE

main16470-11050i4EFE,5EF#..EL4#199009-199409

*66

main16470-55020i1NT..NL40199009-199409

*66

main16470-55030i1NT..NL40199009-199409

sub16470-11080

sub16479-55020

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main16477-11050i4EFE,5EF#..EL4#199009-199409

main16478-55020i1NT..NL40199009-199409

*66,NO.1

main90099-33534i4EFE,5EF#..EL4#199009-199409

main90445-12078i1NT..NL40199009-199409

main90445-12078i1NT..NL40199009-199409

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085i4EFE,5EF#..EL4#199009-199409

16470CBRACKET(FOR RADIATOR RESERVE TANK)

main16471-55030i1NT..NL40199009-199409

main16473-55030i4EFE,5EF#..EL4#199009-199409

main16611-11030i4EFE,5EF#..EL4#199009-199409

*66

main16611-55010i1NT..NL40199009-199409

*66

16471CAP SUB-ASSY, RESERVE TANK

main16405-11050i4EFE,5EF#..EL4#199009-199409

*66

main16405-55031i1NT..NL40199009-199409

*66

main16405-55041i4EFE,5EF#..EL4#199009-199409

sub16405-11080

sub16479-55020

16472HOSE, BREATHER

main16477-55020i1NT..NL40199309-199409

main16477-55020i1NT..NL40199009-199309

*66

main85338-30010i4EFE,5EF#..EL4#199009-199309

main85338-68010i4EFE,5EF#..EL4#199009-199304

*66

main85338-74040i4EFE,5EF#..EL4#199304-199309

*66

main85338-74040i4EFE,5EF#..EL4#199309-199409

16472APROTECTOR, HOSE

main16477-55030i1NT..NL40199009-199409

main16478-11050i4EFE,5EF#..EL4#199009-199304

main16478-11050i4EFE,5EF#..EL4#199304-199409

*66

main16478-55030i4EFE,5EF#..EL4#199009-199409

sub16479-55020

main16479-11050i4EFE,5EF#..EL4#199009-199304

main16479-55020i1NT..NL40199009-199102

*66,NO.1

main16479-55020i1NT..NL40199102-199409

main16483-55020i1NT..NL40199102-199409

16533SUPPORT, RADIATOR, UPPER

main16505-11130i5EFE..EL45..5F;4EFE,5EF#..EL41,43..4F,4FC,5F199009-199409

main16505-11140i4EFE,5EFE..EL41,45..ATM199009-199409

main16533-55040i1NT..NL40199009-199409

16535SUPPORT, RADIATOR, LOWER

main16535-55040i1NT..NL40199009-199409

main16535-64050i4EFE,5EFE..EL41,45..ATM199009-199409

main16535-74070i5EFE..EL45..5F;4EFE,5EF#..EL41,43..4F,4FC,5F199009-199409

16571HOSE, RADIATOR, INLET

main16571-11110i4EFE,5EF#..EL4#199009-199409

sub16571-11210

main16571-55040i1NT..NL40199009-199409

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90467-31003i4EFE,5EF#..EL4#199009-199409

main90467-34003i1NT..NL40199009-199409

WATER OUTLET SIDE

sub90467-34004

16572HOSE, RADIATOR, OUTLET

main16572-11200i4EFE,5EF#..EL4#..MTM199009-199409

main16572-11210i4EFE,5EF#..EL4#..ATM199009-199409

main16572-55070i1NT..NL40..5F199009-199409

main16572-55080i1NT..NL40..4FC199009-199409

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90467-31003i1NT..NL40199009-199409

main90467-34003i1NT..NL40199009-199409

WATER INLET SIDE

sub90467-34004

16701SHROUD SUB-ASSY, FAN

main16711-11190i4EFE,5EF#..EL4#..MTM199009-199409

main16711-11200i4EFE,5EF#..EL4#..ATM199009-199409

main16711-55090i1NT..NL40..5F199009-199409

main16711-55100i1NT..NL40..4FC199009-199409

main16711-55110i1NT..NL40..5F199009-199409

sub16711-55111

8401

9009900183

main90099-00183

9009905164

main90099-05164

9011608239

main90116-08239

9011906334

main90119-06334

9011908053

main90119-08053

9011908708

main90119-08708

9011908813

main90119-08813

9017906106

main90179-06106

9017908054

main90179-08054

9046712059

main90467-12059

9046912001

main90469-12001

9161160835

main91611-60835

9165160612

main91651-60612

9165160816

main91651-60816

91656A0616

main91656-A0616

9212260616

main92122-60616

9212260640

main92122-60640

9212260835

main92122-60835

51 parts on this diagram · 6 diagrams in section
