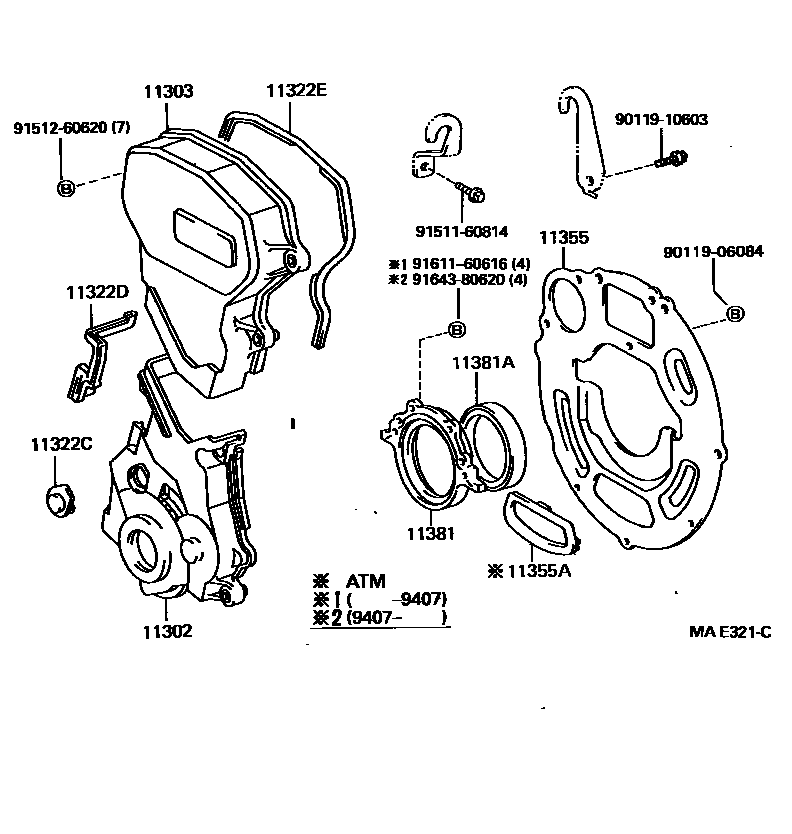

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1 0003 1

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11302-11060i4EFE..EL41199009-199405

main11302-11062i4EFE..EL41199405-199409

main11302-11080i5EF#..EL43,45199009-199405

main11302-11082i5EF#..EL43,45199405-199409

main11302-55011i1NT..NL40199009-199409

11303COVER SUB-ASSY, CRANKSHAFT GEAR OR PULLEY

main11303-11030i4EFE,5EFE..EL4#199009-199405

main11303-11031i4EFE,5EFE..EL4#199405-199409

main11303-11040i5EFHE..EL43199009-199308

main11303-11041i5EFHE..EL43199308-199405

main11303-11042i5EFHE..EL43199405-199409

main11303-55020i1NT..NL40199009-199409

11322CCOVER, TIMING BELT, NO.3

main11323-10011i4EFE,5EF#..EL4#199009-199409

11322DGASKET, TIMING BELT COVER, NO.1

main11328-11040i4EFE..EL41199009-199309

main11328-11041i4EFE..EL41199309-199409

main11328-11060i5EF#..EL43,45199009-199309

main11328-11061i5EF#..EL43,45199309-199409

11322EGASKET, TIMING BELT COVER, NO.2

main11329-11010i4EFE,5EF#..EL4#199009-199409

11355PLATE, REAR END

main11355-10011i4EFE,5EF#..EL41,43..MTM199009-199409

main11355-11011i4EFE,5EF#..EL41,43..ATM199009-199409

main11355-11020i5EFE..EL45199009-199212

main11355-11030i5EFE..EL45199212-199409

main11355-55012i1NT..NL40..5F199009-199409

main11355-55020i1NT..NL40..4FC199009-199409

11355APLUG, HOLE(FOR REAR END PLATE)

main90950-01548i1NT..NL40..4FC; 4EFE,5EF#..EL41,43..ATM199009-199409

11381RETAINER, ENGINE REAR OIL SEAL

main11381-10020i4EFE,5EF#..EL4#199009-199407

main11381-10021i4EFE,5EF#..EL4#199407-199409

main11381-55010i1NT..NL40199009-199409

11381ASEAL, ENGINE REAR OIL

main90311-75004i4EFE..EL41199009-199010

main90311-75009i4EFE..EL41199010-199409

main90311-80007i5EF#..EL43,45199009-199108

main90311-80009i1NT..NL40199009-199409

main90311-80012i5EF#..EL43,45199108-199409

9011906084

main90119-06084

9011910603

main90119-10603

9151160814

main91511-60814

9151260620

main91512-60620

9161160616

main91611-60616

9164380620

main91643-80620

15 parts on this diagram · 3 diagrams in section
