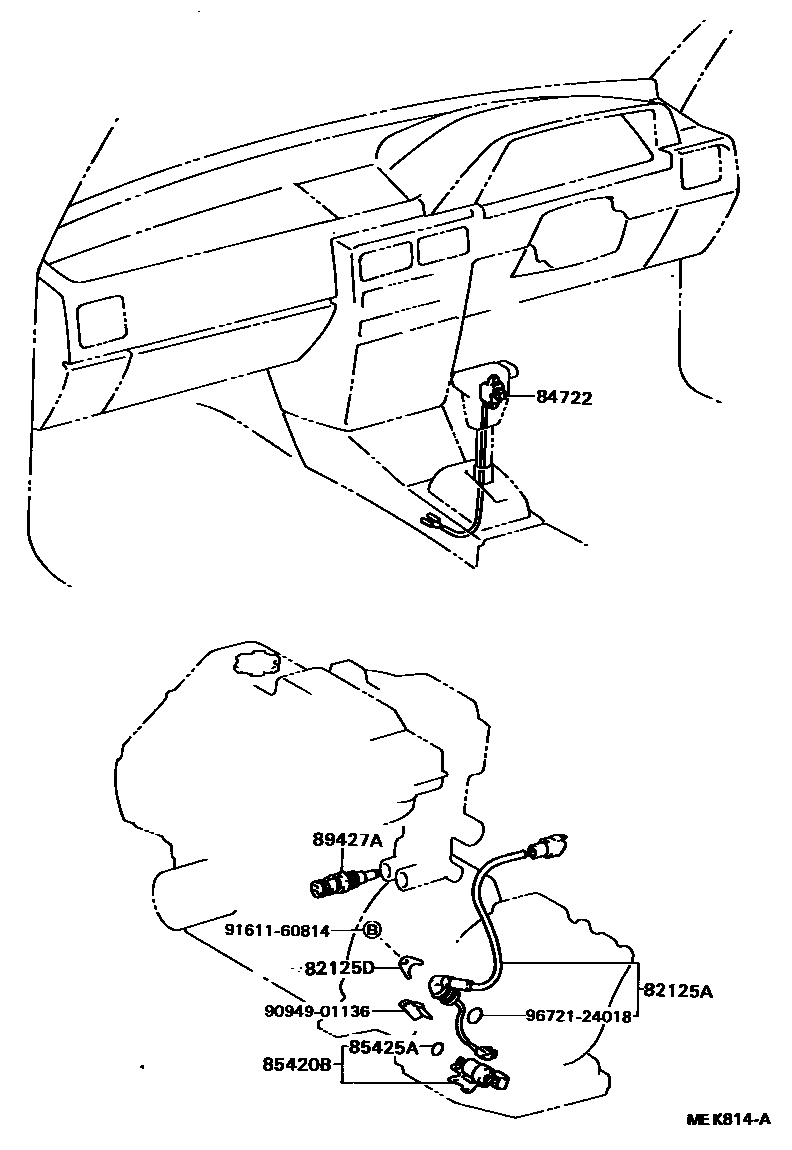

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

82125AWIRE, TRANSMISSION

main82125-20100iEL31,NL30..4FC198805-199009

82125DPLATE, TRANSMISSION WIRE LOCK

main33485-30020iEL31,NL30..4FC198805-199009

84722SWITCH, TRANSMISSION CONTROL

main84722-16050-01iEL31,NL30..4FC198805-199009

NEW BLACK,TRIM2#

main84722-16050-04iEL31,NL30..4FC198805-199009

BLUE,TRIM8#

85420BSOLENOID ASSY, TRANSMISSION

main85420-10010iEL31,NL30..4FC198805-198811

main85420-10011iEL31,NL30..4FC198811-199009

85425ARING, O (FOR OVERDRIVE SOLENOID)

main90301-06004iEL31,NL30..4FC198805-199009

89427ASWITCH, TEMPERATURE

main89427-12090iEL31..4FC..(EFI,TBO)198805-199009

main89427-16060iEL31..4FC..CBR198805-199009

9094901136

main90949-01136

9161160814

main91611-60814

9672124018

main96721-24018

9 parts on this diagram · 1 diagram in section
