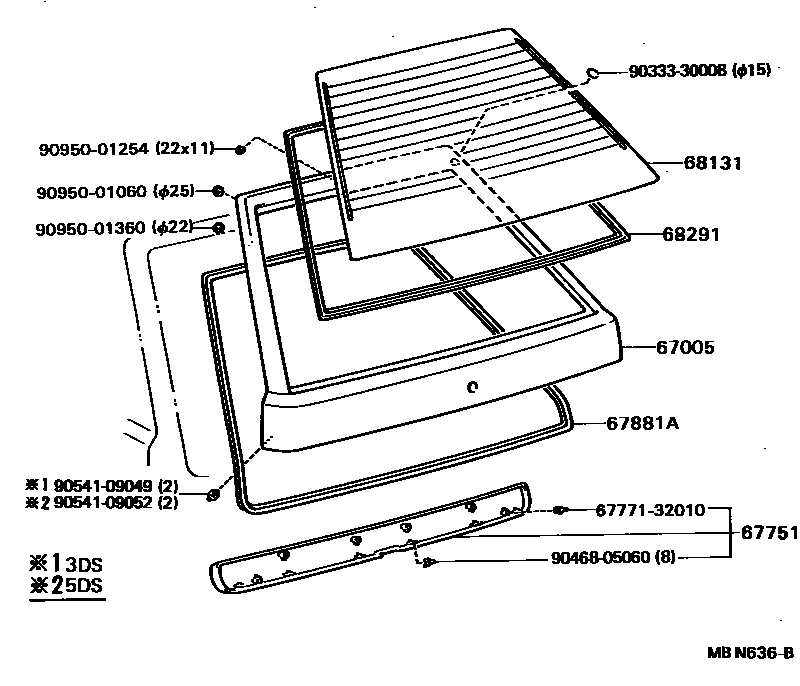

BACK DOOR PANEL & GLASS

67005PANEL SUB-ASSY, BACK DOOR

main67005-16240iEL30,NL30..3DS..(CD,TX)198805-199009

main67005-16260iEL3#,NL30..3DS..(AR,GL,LIM,SRI,ZX); EL30,NL30..3DS..(CD,TX)198805-199009

main67005-16290iEL30,NL30..5DS..TX198805-199009

main67005-16300iEL3#,NL30..5DS..(GL,LIM,ZX); EL30,NL30..5DS..TX198805-199009

main67005-16330iEL31..EFI198805-198904

main67005-16340iEL30..3DS..TX198805-199009

main67005-16360iEL30..3DS..TX; EL31..EFI198805-199009

67751BOARD, BACK DOOR TRIM

main67751-16050-01iEL3#,NL30..3DS..(AR,GL,GP,LIM,SRI,TX,ZX)198805-199009

BLACK,TRIM2#

main67751-16050-04iEL3#,NL30..3DS198805-199009

BLUE,TRIM8#

main67751-16070-01iEL3#,NL30..5DS198805-199009

BLACK,TRIM2#

main67751-16070-04iEL3#,NL30..5DS198805-199009

BLUE,TRIM8#

67881AWEATHERSTRIP, BACK DOOR

main67881-16060iEL3#,NL30..3DS198805-199009

main67881-16081iEL3#,NL30..5DS198805-199009

68131GLASS, BACK DOOR

main68131-16210iEL30..3DS..(CD,TX)198805-199009

main68131-16230iEL30..3DS..(CD,TX); NL30..3DS..TX198805-199009

main68131-16260iEL3#,NL30..3DS..(AR,GL,GP,LIM,SRI,ZX)198805-199009

main68131-16290iEL3#,NL30..5DS..(GL,LIM,ZX)198805-199009

main68131-16310iEL30..3DS..LIM198901-199009

main68131-16320iEL30..5DS..LIM198901-199009

main68131-16360iEL30..5DS..TX198805-199009

main68131-16370iEL30..5DS..TX198805-198810

68291WEATHERSTRIP, BACK DOOR GLASS

main68291-16030iEL3#,NL30..3DS198805-198908

main68291-16031iEL3#,NL30..3DS198908-199009

main68291-16040iEL3#,NL30..5DS198805-199009

6777132010WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-32010

9033330008

main90333-30008

9046805060

main90468-05060

9054109049

main90541-09049

9054109052

main90541-09052

9095001060

main90950-01060

9095001254

main90950-01254

9095001360

main90950-01360

13 parts on this diagram · 1 diagram in section
