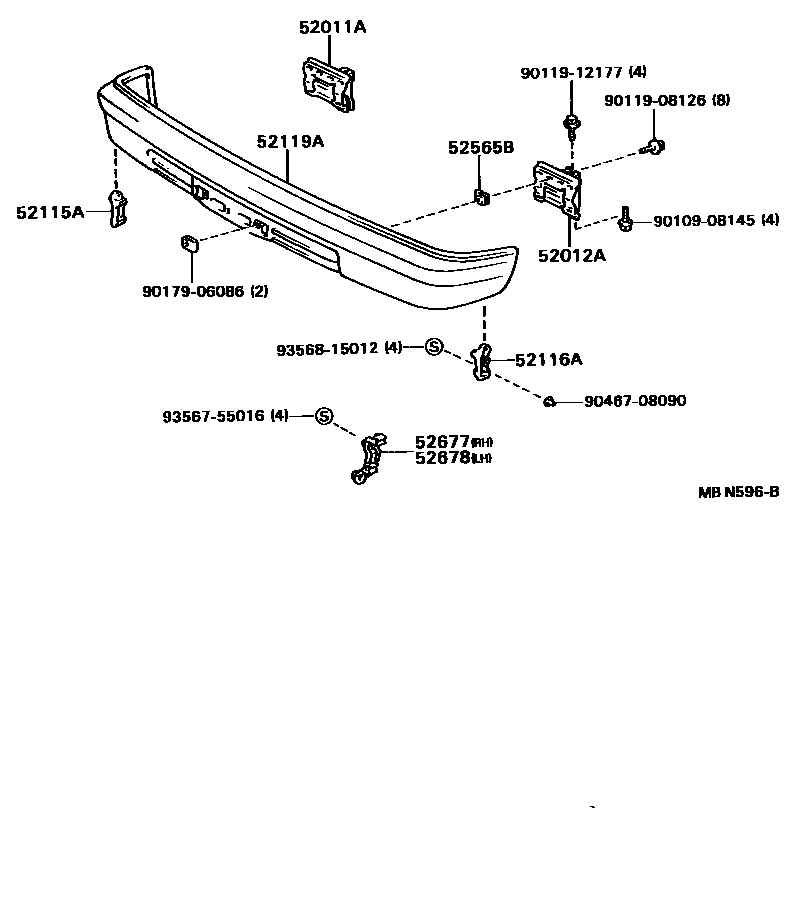

FRONT BUMPER & BUMPER STAY

0001 1 0002 1

52011AARM SUB-ASSY, FRONT BUMPER, RH

main52011-16110iEL3#,NL30..CD,GL,LIM,TX,ZX198805-199009

main52011-16120iEL31..AR,GP,SRI198805-199009

52012AARM SUB-ASSY, FRONT BUMPER, LH

main52012-16100iEL3#,NL30..CD,GL,LIM,TX,ZX198805-199009

main52012-16110iEL31..AR,GP,SRI198805-199009

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-16100iEL3#,NL30..CD,GL,LIM,TX,ZX198805-199009

main52115-16110iEL31..AR,GP,SRI198805-199009

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52115-16100iEL3#,NL30..CD,GL,LIM,TX,ZX198805-199009

main52115-16110iEL31..AR,GP,SRI198805-199009

52119ACOVER, FRONT BUMPER

main52104-16030-02iEL31..AR,GP,SRI198805-199009

RED,3E6

main52104-16030-03iEL31..AR,GP,SRI198805-199009

SILVER M,23B ,26J

main52104-16030-04iEL31..EFI,TBO198805-199009

LIGHT BLUE M,8D8

main52104-16030-07iEL31..AR,SRI198805-199009

TURQUOIS M,741

main52104-16030-08iEL31..AR,GP,SRI198805-199009

WHITE,041

main52104-16030-13iEL31..TBO198805-199009

GRAY M,27J

main52104-16030-14iEL31..AR,SRI198805-199009

BLUE MICA M,8G1

main52119-16240iEL30,NL30..CD,GL,TX198805-199009

main52119-16260-01iEL30..3DS..TX; EL30..TX199004-199009

main52119-16260-02iEL30..TX; NL30..TX198901-199009

RED,3E6

main52119-16260-03iEL31,NL30..ZX198805-199009

SILVER M,23B

main52119-16260-04iEL30..TX; NL30..TX198901-199009

LIGHT BLUE M,8D8

main52119-16260-07iEL30..TX; NL30..TX198901-199009

TURQUOIS M,741

main52119-16260-08iEL3#,NL30..LIM,ZX198805-199009

WHITE,041

main52119-16260-12iEL30..TX; NL30..TX198901-199009

RED MICA,3H4

main52119-16260-14iEL30..TX; NL30..TX198901-199009

BLUE MICA M,8G1

52565BRETAINER, REAR BUMPER, LOWER

main52565-16020×8iEL3#,NL30198805-199009

52677SUPPORT, FRONT BUMPER SIDE, NO.2, RH

main52677-16040iEL3#,NL30..CD,GL,LIM,TX,ZX198805-199009

main52677-16050iEL31..AR,GP,SRI198805-199009

52678SUPPORT, FRONT BUMPER SIDE, NO.2, LH

main52677-16050iEL31..AR,GP,SRI198805-199009

main52678-16040iEL3#,NL30..CD,GL,LIM,TX,ZX198805-199009

9010908145

main90109-08145

9011908126

main90119-08126

9011912177

main90119-12177

9017906086

main90179-06086

9046708090

main90467-08090

9356755016

main93567-55016

9356815012

main93568-15012

15 parts on this diagram · 2 diagrams in section
