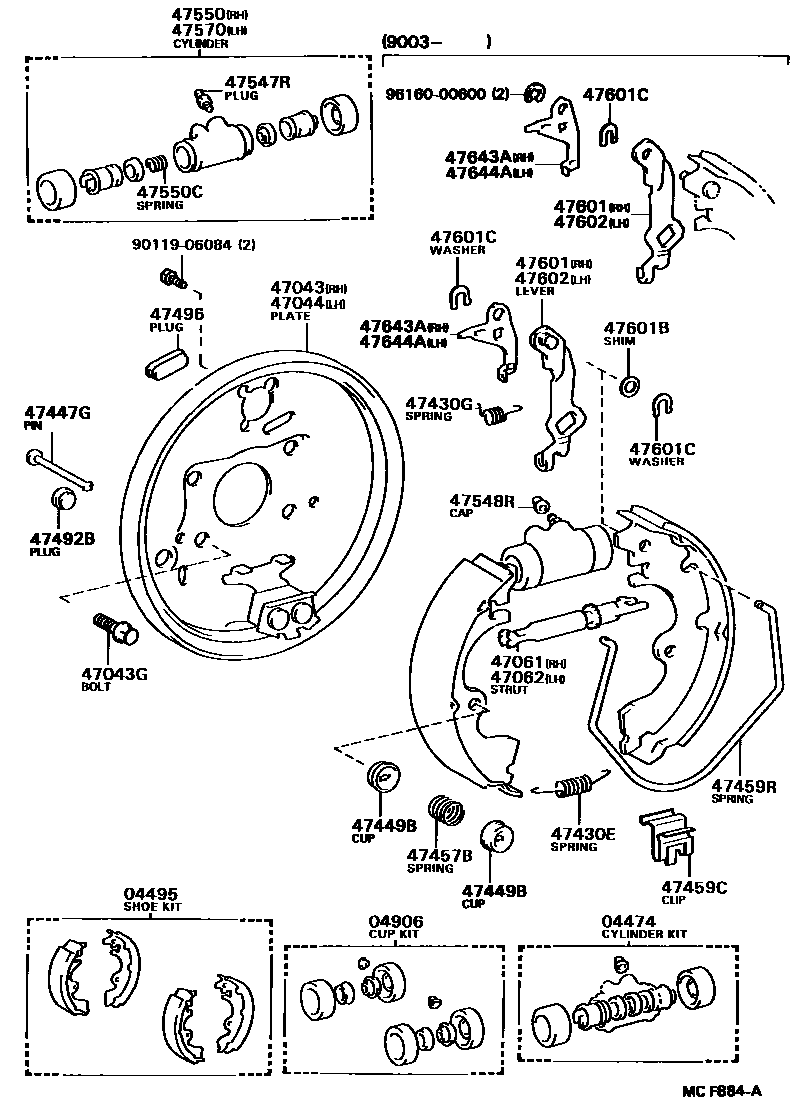

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

04474CYLINDER KIT, REAR WHEEL

main04474-16020iEL3#,NL30..CBR,EFI,TD198805-199009

04495SHOE KIT, REAR BRAKE

main04495-16020iEL3#,NL30..CBR,EFI,TD198805-198809

sub04495-16021

main04495-16021iEL3#,NL30..CBR,EFI,TD198809-199003

sub04495-16022

main04495-16080iEL3#,NL30..CBR,EFI,TD199003-199009

sub04495-16023

main04497-16020iEL3#,NL30..CBR,EFI,TD198805-198809

sub04497-16021

main04497-16021iEL3#,NL30..CBR,EFI,TD198809-199003

04906CUP KIT, REAR WHEEL CYLINDER

main04906-16020iEL3#,NL30..CBR,EFI,TD198805-199009

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-16040iEL3#,NL30..CBR,EFI,TD198805-199009

47043GBOLT (FOR BACKING PLATE TO REAR AXLE BEAM SETTING)

main90119-10455iEL3#,NL30..CBR,EFI,TD198805-199009

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-16040iEL3#,NL30..CBR,EFI,TD198805-199009

47061STRUT SET, PARKING BRAKE SHOE, RH

main47061-16030iEL3#,NL30..CBR,EFI,TD198805-199009

47062STRUT SET, PARKING BRAKE SHOE, LH

main47062-16030iEL3#,NL30..CBR,EFI,TD198805-199009

47430ESPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-18014iEL3#,NL30..CBR,EFI,TD198805-199009

47430GSPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER)

main90506-12014iEL3#,NL30..CBR,EFI,TD198805-199003

main90507-12020iEL3#,NL30..CBR,EFI,TD199003-199009

47447GPIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47447-20010iEL3#,NL30..CBR,EFI,TD198805-199009

47449BCUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47449-30030iEL3#,NL30..CBR,EFI,TD198805-199009

47457BSPRING, COMPRESSION(FOR REAR SHOE HOLD DOWN SPRING PIN)

main90501-16062iEL3#,NL30..CBR,EFI,TD198805-199009

47459CCLIP(FOR SHOE RETURN SPRING)

main90468-05063iEL3#,NL30..CBR,EFI,TD198805-199009

47459RSPRING, SHOE RETURN(FOR REAR BRAKE)

main47459-16020iEL3#,NL30..CBR,EFI,TD198805-199009

47492BPLUG, SHOE INSPECTION(FOR REAR BRAKE)

main47492-32010iEL3#,NL30..CBR,EFI,TD198805-199009

47496PLUG, HOLE(FOR REAR BRAKE)

main47491-20011iEL3#,NL30..CBR,EFI,TD198805-199009

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-20010iEL3#,NL30..CBR,EFI,TD198805-199009

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010iEL3#,NL30..CBR,EFI,TD198805-199009

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-16030iEL3#,NL30..CBR,EFI,TD198805-199009

sub47550-20120

47550CSPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)

main90501-07006iEL3#,NL30..CBR,EFI,TD198805-199009

sub90029-60014

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47570-16010iEL3#,NL30..CBR,EFI,TD198805-199009

sub47570-20030

47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)

main47601-16010iEL3#,NL30..CBR,EFI,TD198805-199003

main47611-10030iEL3#,NL30..CBR,EFI,TD199003-199009

47601BSHIM, REAR PARKING BRAKE SHOE LEVER

main90564-08150iEL3#,NL30..CBR,EFI,TD198805-199003

main90564-08151iEL3#,NL30..CBR,EFI,TD198805-199003

main90564-08152iEL3#,NL30..CBR,EFI,TD198805-199003

main90564-08172iEL3#,NL30..CBR,EFI,TD198805-199003

main90564-08173iEL3#,NL30..CBR,EFI,TD198805-199003

main90564-08174iEL3#,NL30..CBR,EFI,TD198805-199003

47601CWASHER, C(FOR REAR BRAKE)

main90213-06013iEL3#,NL30..CBR,EFI,TD198805-199009

47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)

main47602-16010iEL3#,NL30..CBR,EFI,TD198805-199003

main47612-10030iEL3#,NL30..CBR,EFI,TD199003-199009

47643ALEVER, REAR BRAKE AUTOMATIC ADJUST, RH

main47643-10020iEL3#,NL30..CBR,EFI,TD199003-199009

main47643-16010iEL3#,NL30..CBR,EFI,TD198805-199003

47644ALEVER, REAR BRAKE AUTOMATIC ADJUST, LH

main47644-10020iEL3#,NL30..CBR,EFI,TD199003-199009

main47644-16010iEL3#,NL30..CBR,EFI,TD198805-199003

9011906084

main90119-06084

9616000600

main96160-00600

30 parts on this diagram · 1 diagram in section
