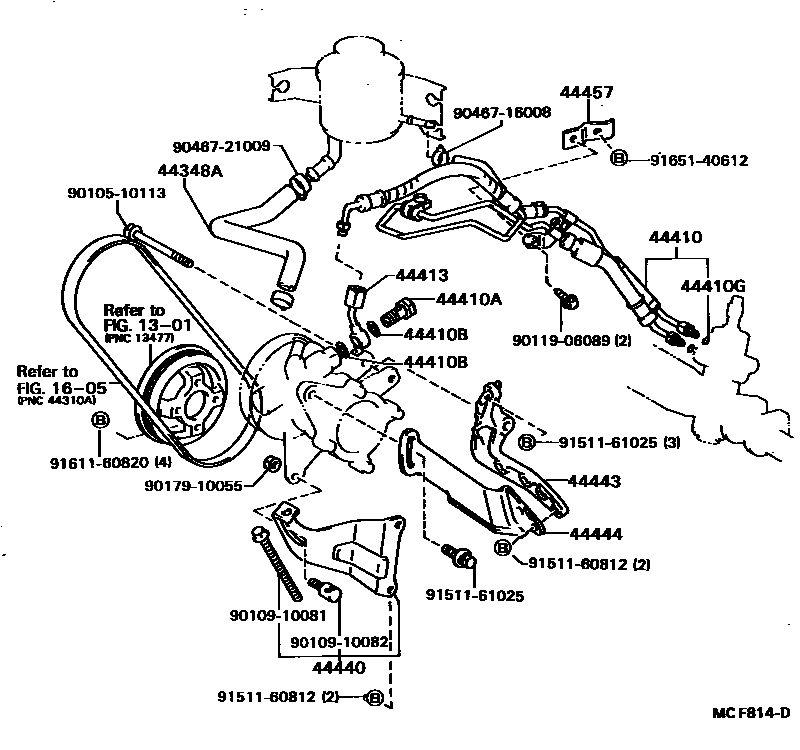

POWER STEERING TUBE

0001 1 0002 1 0003 1

1301CRANKSHAFT & PISTON

→ Go to FIG 13-01

1605V-BELT

→ Go to FIG 16-05

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-16011iEL3#..LIM,ZX198805-199009

main44348-16020iNL30..GL,TX; NL30..ZX198805-199009

main44348-16030iEL31..EFI; EL31..TBO198805-199009

44410TUBE ASSY, PRESSURE FEED

main44410-16050iEL31..TBO198805-199009

main44410-16060iNL30..GL,TX; NL30..ZX198805-199009

main44410-16070iEL31..EFI,TBO198805-198903

main44410-16080iEL3#..LIM,ZX198805-198903

44410ABOLT, UNION(FOR PRESSURE FEED TUBE)

main90401-16008iEL3#,NL30..LIM,ZX; EL31..TBO198805-199009

44410BGASKET(FOR PRESSURE FEED TUBE)

main90430-16242×2iEL3#,NL30..LIM,ZX; EL31..TBO198805-199009

44410GRING, O(FOR PRESSURE FEED TUBE)

main90301-07009×3iEL3#,NL30..LIM,ZX; EL31..TBO198805-199009

44413TUBE, PRESSURE FEED, NO.1

main44413-16021iEL30..GL,TX198805-198901

main44413-16030iEL31..EFI; EL31..TBO198805-199009

main44413-16050iEL31..AR; EL31..ZX198805-199009

44440BRACKET ASSY, PUMP

main44440-16010iEL30..GL,TX198805-198901

main44440-16020iEL31..AR,SRI; EL31..ZX198805-199009

44443BRACKET, PUMP

main44443-10020iEL31..TBO198805-199009

main44443-16010iEL3#..LIM,ZX198805-199009

main44443-16030iNL30..GL,TX; NL30..ZX198805-199009

44444STAY, PUMP, REAR

main44444-10020iEL31..TBO198805-199009

main44444-16011iEL3#..LIM,ZX198805-199009

44457BRACKET, TUBE SUPPORT, NO.1

9010510113

main90105-10113

9010910081

main90109-10081

9010910082

main90109-10082

9011906089

main90119-06089

9017910055

main90179-10055

9046716008

main90467-16008

9046721009

main90467-21009

9151160812

main91511-60812

9151161025

main91511-61025

9161160820

main91611-60820

9165140612

main91651-40612

23 parts on this diagram · 3 diagrams in section
