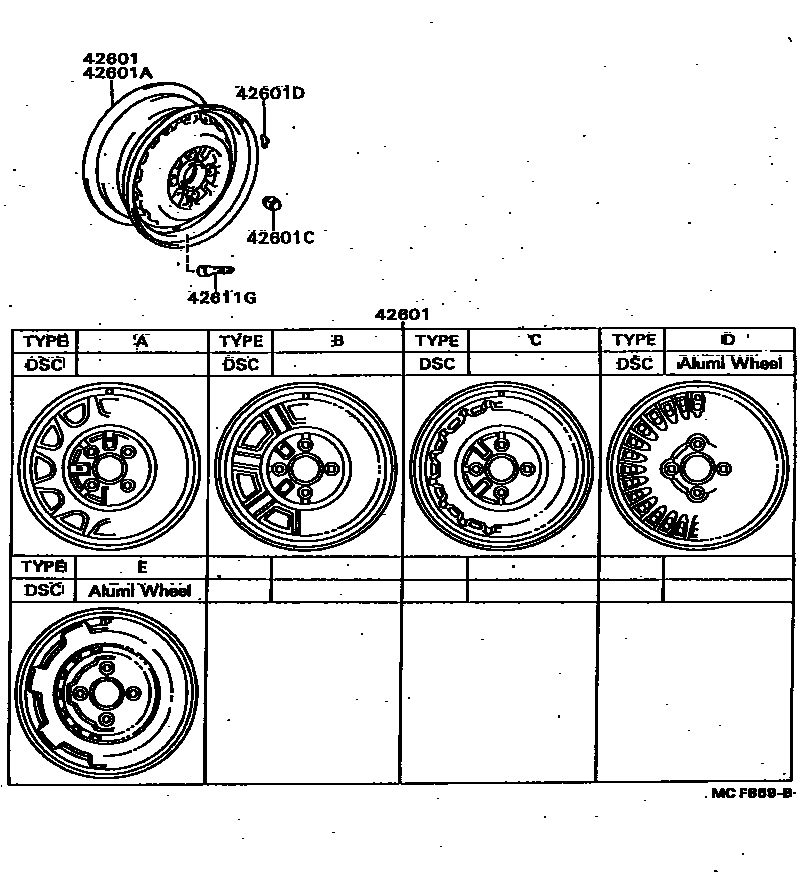

DISC WHEEL & WHEEL CAP

0001 1 0002 1

42601WHEEL, DISC

main42611-10220-03×4iEL30198805-199009

main42611-16150-03×4iEL30..3DS..4F..TX; NL30..GL,TX198805-199009

main42611-16230×4iEL30..TX198810-198908

main42611-16230-08×4iEL30..TX198810-198901

main42611-16280×4iEL31,NL30..AR,SRI,ZX198805-199009

main42611-16290×4iEL31..AR; EL31..EFI; EL31..TBO198805-199009

main42611-16380-03×4iEL31..EFI; EL31..TBO198805-199009

main42611-16390×4iEL31..AR; EL31..EFI; EL31..TBO198805-199009

main42611-20300-03×4iEL30..3DS..TX; EL31,NL30..AR,SRI,ZX198805-199009

42601AWHEEL, DISC (FOR SPARE)

main42611-16310iEL3#,NL30..CBR,EFI,TD198805-199009

main42611-17040iEL31..TBO198805-199009

42601CNUT, HUB (FOR AXLE)

main90942-01007×16iEL30..3DS..TX; EL30..5DS..TX198901-199005

main90942-01028×16iNL30;EL3#..CD,TX,ZX198805-199009

main90942-01033×16iEL31,NL30..ZX; EL31..AR,SRI; EL31..TBO198805-198811

main90942-01062×16iEL31..AR,SRI; EL31..TBO198811-199009

42601DWEIGHT, BALANCE (FOR DISC WHEEL)

main90942-03017iEL3#,NL30198805-199009

main90942-03020iEL3#,NL30198805-199009

main90942-03022iEL3#,NL30198805-199009

main90942-03025iEL3#,NL30198805-199009

main90942-03027iEL3#,NL30198805-199009

main90942-03029iEL3#,NL30198805-199009

main90942-03031iEL3#,NL30198805-199009

main90942-03041iEL3#,NL30198805-199009

main90942-03098iEL3#,NL30198805-199009

main90942-03099iEL3#,NL30198805-199009

main90942-03100iEL3#,NL30198805-199009

main90942-03101iEL3#,NL30198805-199009

main90942-03102iEL3#,NL30198805-199009

main90942-03108iEL3#,NL30198805-199009

main90942-03109iEL3#,NL30198805-199009

main90942-03146iEL31,NL30..ZX; EL31..AR; EL31..EFI; EL31..TBO198805-199009

main90942-03147iEL31,NL30..ZX; EL31..AR; EL31..EFI; EL31..TBO198805-199009

main90942-03148iEL31,NL30..ZX; EL31..AR; EL31..EFI; EL31..TBO198805-199009

main90942-03149iEL31,NL30..ZX; EL31..AR; EL31..EFI; EL31..TBO198805-199009

main90942-03150iEL31,NL30..ZX; EL31..AR; EL31..EFI; EL31..TBO198805-199009

main90942-03151iEL31,NL30..ZX; EL31..AR; EL31..EFI; EL31..TBO198805-199009

main90942-03152iEL31,NL30..ZX; EL31..AR; EL31..EFI; EL31..TBO198805-199009

main90942-03153iEL31,NL30..ZX; EL31..AR; EL31..EFI; EL31..TBO198805-199009

main90942-03154iEL31,NL30..ZX; EL31..AR; EL31..EFI; EL31..TBO198805-199009

main90942-03155iEL31,NL30..ZX; EL31..AR; EL31..EFI; EL31..TBO198805-199009

main90942-03156iEL31,NL30..ZX; EL31..AR; EL31..EFI; EL31..TBO198805-199009

main90942-03157iEL31,NL30..ZX; EL31..AR; EL31..EFI; EL31..TBO198805-199009

main90942-03158iEL31,NL30..ZX; EL31..AR; EL31..EFI; EL31..TBO198805-199009

main90942-03159iEL31,NL30..ZX; EL31..AR; EL31..EFI; EL31..TBO198805-199009

main90942-03160iEL31,NL30..ZX; EL31..AR; EL31..EFI; EL31..TBO198805-199009

main90942-03161iEL3#,NL30198805-199009

main90942-03167iEL31,NL30..ZX; EL31..AR; EL31..EFI; EL31..TBO198805-199009

42611GVALVE (FOR TUBELESS TIRE)

main90942-05004×4iEL31,NL30..AR,SRI,ZX198805-199009

main90942-05009iEL3#,NL30; EL31,NL30..AR,SRI,ZX198805-199009

5 parts on this diagram · 2 diagrams in section
