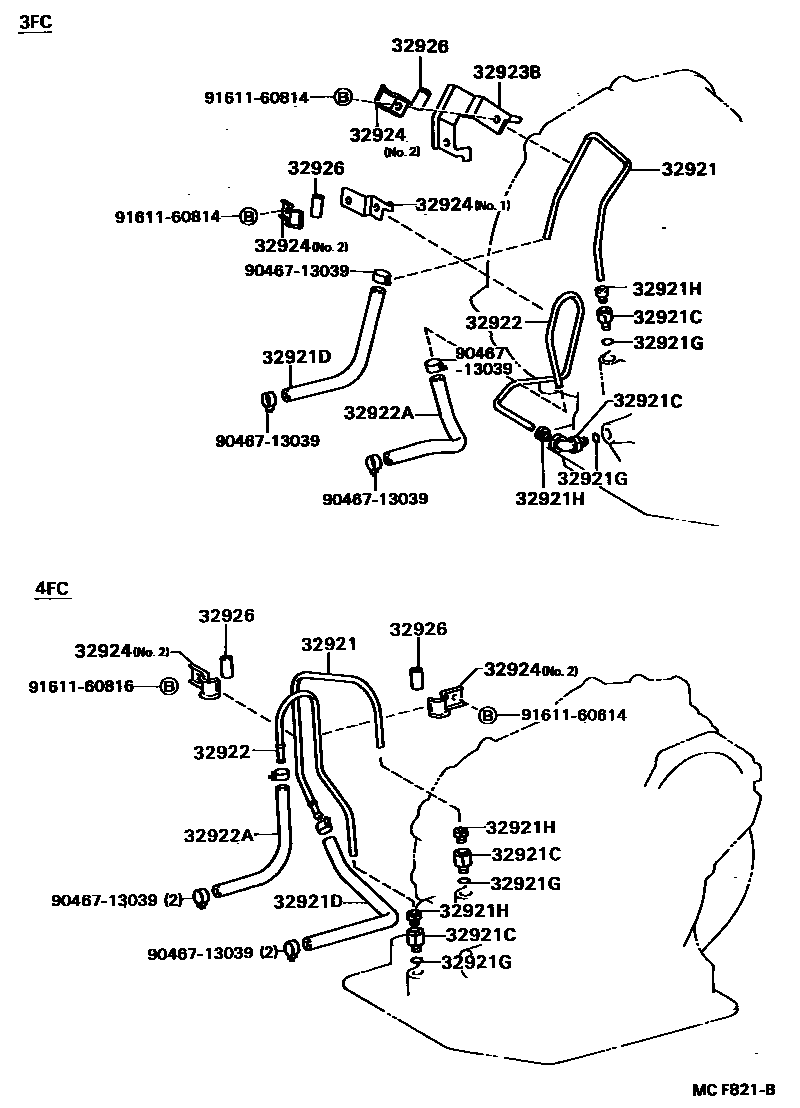

OIL COOLER & TUBE (ATM)

32921TUBE, OIL COOLER INLET, NO.1

main32921-16030iEL31..4FC198805-199005

main32921-16031iEL31..4FC199005-199009

main32921-16041iNL30..4FC198805-199005

main32921-16042iNL30..4FC199005-199009

main32921-16061iEL30..3FC198805-199005

main32921-16062iEL30..3FC199005-199009

32921CUNION(FOR OIL COOLER TUBE)

main90404-14007×2iEL30..3FC; EL31,NL30..4FC198805-199009

INLET

main90407-14003iEL30..3FC198805-199009

OUTLET

32921DHOSE(FOR OIL COOLER INLET)

main32941-16030iEL30..3FC198805-199005

main32941-16060iEL30..3FC199005-199009

main32941-22130iNL30..4FC198805-199005

main32941-30060iNL30..4FC199005-199009

main90445-15015iEL31..4FC..(CBR,EFI)198805-199005

main90445-15042iEL31..4FC..TBO199005-199009

main90445-15046iEL31..4FC..(CBR,EFI)199005-199009

main90445-16026iEL31..4FC..TBO198805-199005

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189×2iEL30,NL30..ATM198805-199009

32921HNUT, FLARE(FOR OIL COOLER TUBE)

main90402-14004iEL30..3FC; EL31,NL30..4FC198805-199009

OUTLET

main90402-14007iEL31,NL30..4FC198805-199009

INLET

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-16040iEL31,NL30..4FC198805-199005

main32922-16041iEL31,NL30..4FC199005-199009

main32922-16070iEL30..3FC198805-199005

main32922-16071iEL30..3FC199005-199009

32922AHOSE(FOR OIL COOLER OUTLET)

main90445-15015iEL30..3FC198805-199005

main90445-15032iEL31..4FC198805-199005

main90445-15034iNL30..4FC198805-199005

main90445-15046iEL30..3FC199005-199009

main90445-15047iEL31..4FC199005-199009

main90445-15050iNL30..4FC199005-199009

32923BCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1

main32923-16031iEL30..3FC198805-199009

32924CLAMP, OIL COOLER TUBE, NO.2

main32923-16040iEL30..3FC198805-199009

main90462-10082×2iEL3#,NL30..ATM198805-199009

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-30011×2iEL3#,NL30..ATM198805-199009

9046713039

main90467-13039

9161160614

main91611-60614

9161160814

main91611-60814

9161160816

main91611-60816

14 parts on this diagram · 1 diagram in section
