TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

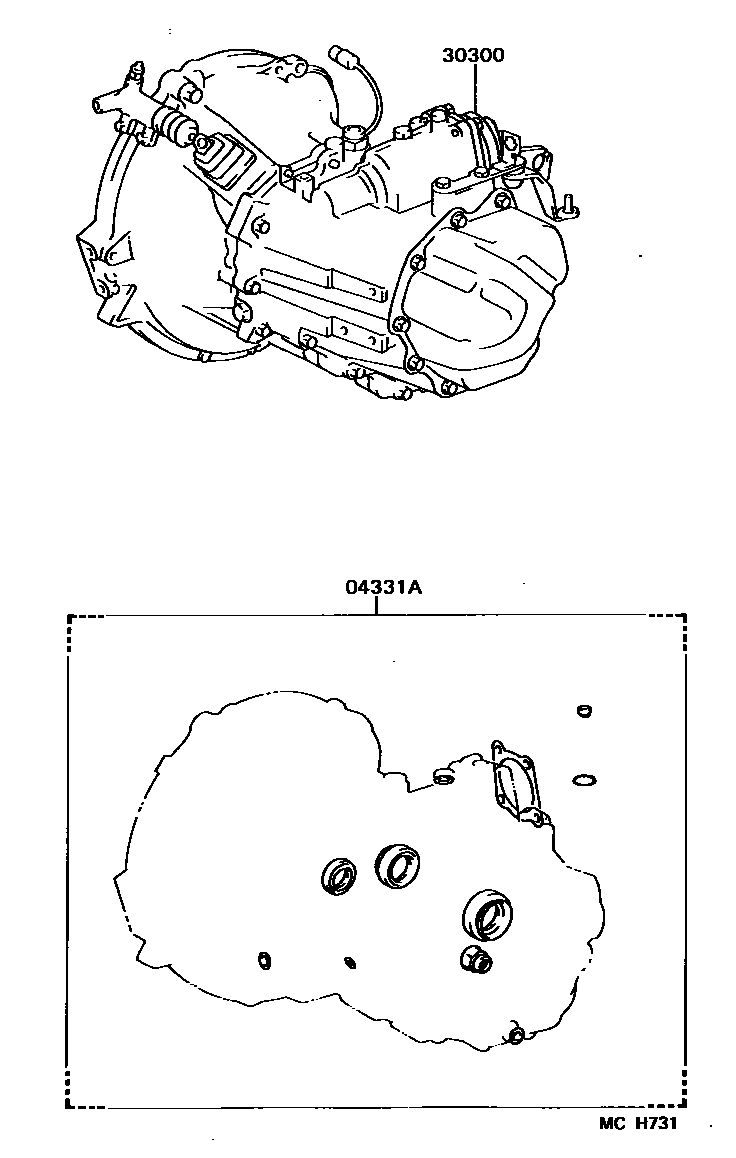

Parts diagram
04331AGASKET KIT, TRANSAXLE OVERHAUL(MTM)
main04331-12080i198805-199009
30300TRANSAXLE ASSY, MANUAL
main30300-16420i198805-199009
sub30300-16421
main30300-16430i198805-199009
main30300-16440i198805-199009
sub30300-16441
main30300-16451i198805-199009
sub30300-16452
main30300-16460i198805-199009
sub30300-16461
main30300-16470i198805-199009
sub30300-16471

2 parts on this diagram · 1 diagram in section
