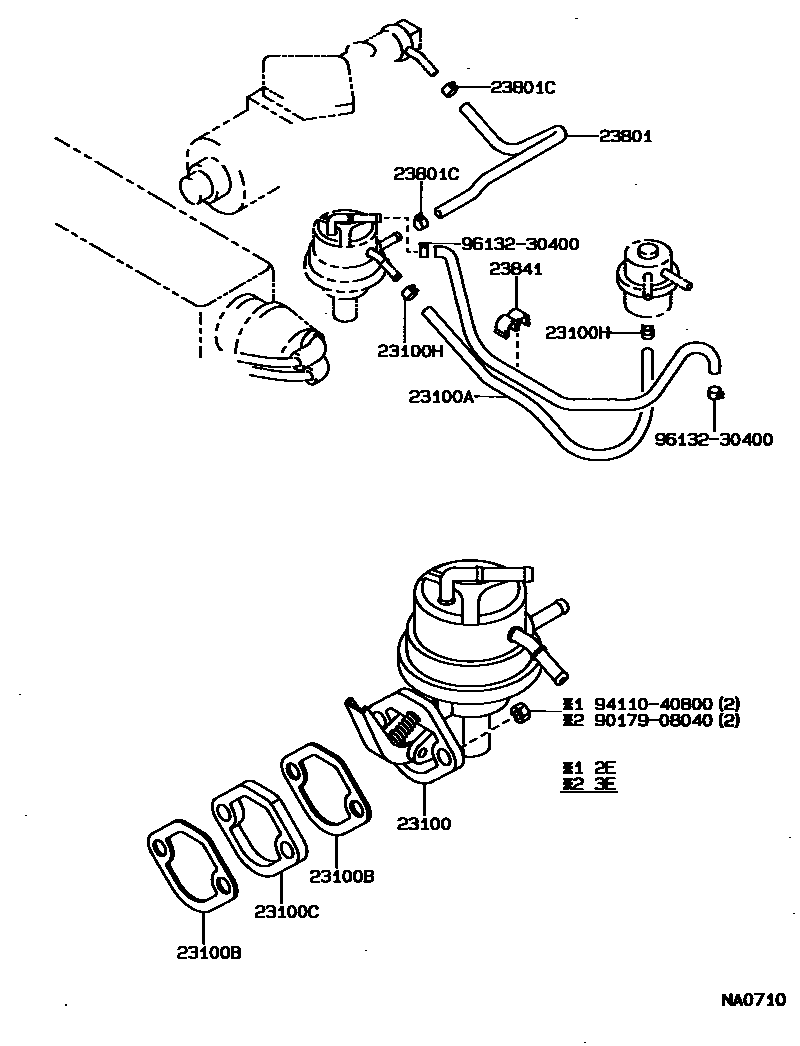

FUEL PUMP & PIPE

23100PUMP ASSY, FUEL

main23100-11032i2E..EL30198805-198807

main23100-11033i2E..EL30198807-199009

main23100-11051i3E..EL31198805-199009

23100AHOSE, FUEL

main95333-06030i2E,3E..EL3#198805-199009

23100BGASKET, FUEL PUMP

main90923-05017×2i2E,3E..EL3#198805-198912

main90923-05024×2i2E,3E..EL3#198912-199009

23100CINSULATOR, FUEL PUMP

main23915-10020i2E,3E..EL3#198805-199009

23100HCLIP(FOR FUEL HOSE)

main96132-30600×2i2E,3E..EL3#198805-199009

23801PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1

main95333-06030i2E,3E..EL3#198805-199009

23801CCLIP(FOR CARBURETOR FUEL HOSE)

main90467-11009×2i2E,3E..EL3#198901-199009

main90467-11049×2i2E,3E..EL3#198805-198901

23841CLAMP, FUEL PIPE(HOSE), NO.1

main90464-00231i2E,3E..EL3#198805-199009

9017908040

main90179-08040

9411040800

main94110-40800

9613230400

main96132-30400

11 parts on this diagram · 1 diagram in section
