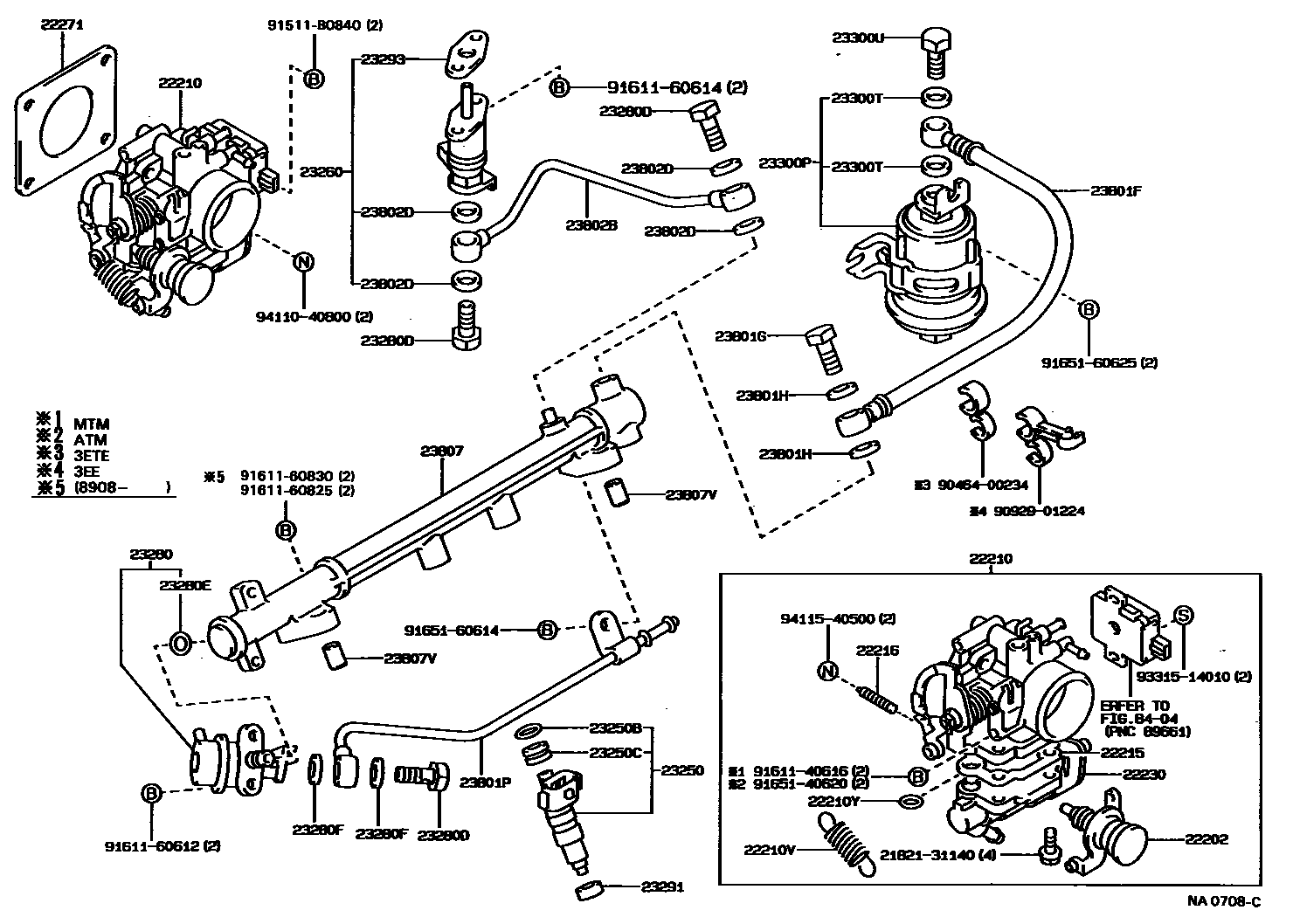

FUEL INJECTION SYSTEM
22202DASH POT SUB-ASSY
22210BODY ASSY, THROTTLE
22210VSPRING, TENSION, W/DAMPER (FOR THROTTLE RETURN)
22210YRING, O(FOR AIR TUBE)
22216SCREW, DASH POT ADJUSTING
22230VALVE ASSY, AUXILIARY AIR
23250INJECTOR ASSY, FUEL
23250BRING, O(FOR FUEL INJECTOR)
23250CGROMMET(FOR FUEL INJECTOR)
23280REGULATOR ASSY, FUEL PRESSURE
23280DBOLT, UNION(FOR FUEL PIPE OR HOSE SET)
23280ERING, O(FOR FUEL PRESSURE REGULATOR)
23280FGASKET(FOR FUEL PRESSURE REGULATOR)
23291INSULATOR, INJECTOR VIBRATION
23300PFILTER, FUEL(FOR EFI)
sub23300-19255
23300TGASKET(FOR FUEL FILTER)
23300UBOLT, UNION(FOR FUEL FILTER)
23801FHOSE, FUEL, NO.1
23801GBOLT, UNION(FOR FUEL PIPE)
23801HGASKET(FOR FUEL PIPE)
23801PPIPE SUB-ASSY, FUEL, NO.1
23802DGASKET(FOR FUEL PIPE NO.2)
23807PIPE SUB-ASSY, FUEL DELIVERY
23807VSPACER, NO.1(FOR DELIVERY PIPE)
8404
2182131140SCREW, 2ND THROTTLE VALVE SET
main21821-31140
9046400234
main90464-00234
9092901224
main90929-01224
91511B0840
main91511-B0840
9161140616
main91611-40616
9161160612
main91611-60612
9161160614
main91611-60614
9161160825
main91611-60825
9161160830
main91611-60830
9165140620
main91651-40620
9165160614
main91651-60614
9165160625
main91651-60625
9331514010
main93315-14010
9411040800
main94110-40800
9411540500
main94115-40500
45 parts on this diagram · 2 diagrams in section
