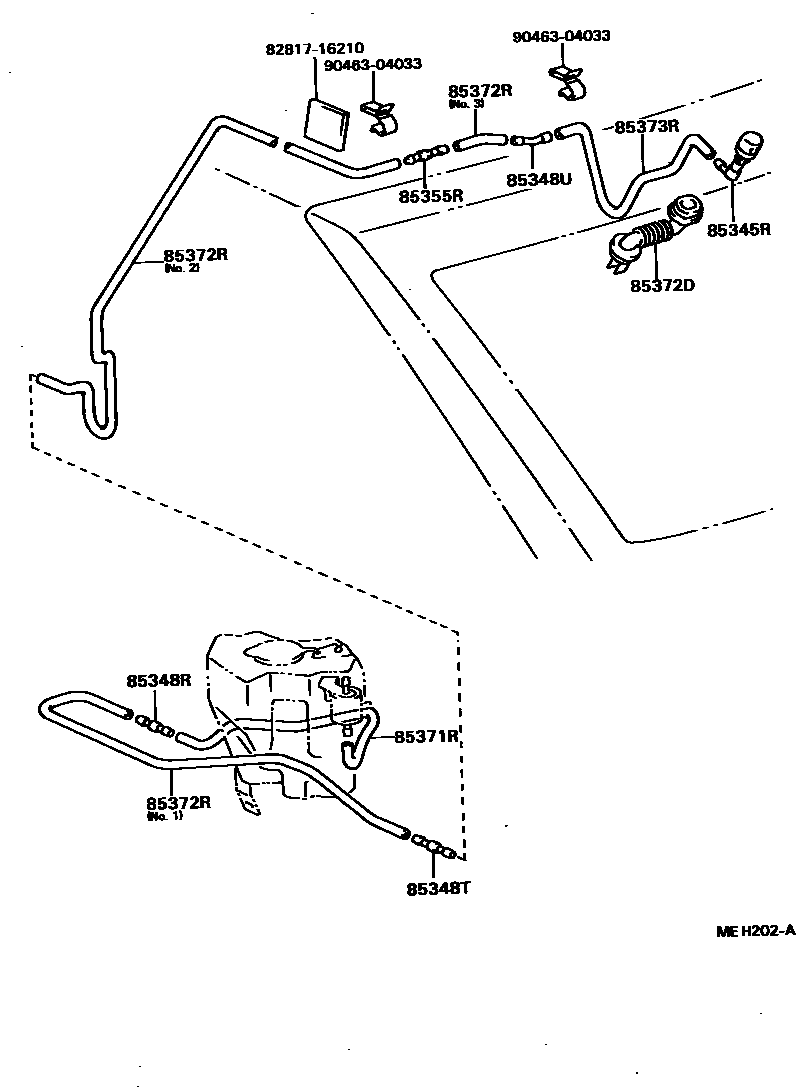

REAR WASHER

85345RNOZZLE, REAR WASHER

main85341-16110iEL3#..3DS198605-198805

main85341-16120iEL3#,NL30..5DS198605-198805

85348RJOINT, REAR WASHER HOSE, NO.1

main85349-89122iEL3#,NL30198605-198805

85348TJOINT, REAR WASHER HOSE, NO.2

main85349-89122iEL3#,NL30198605-198805

85348UJOINT, REAR WASHER HOSE, NO.3

main85355-20080iEL3#,NL30198605-198805

85355RVALVE, REAR WASHER HOSE

main85031-12250iEL3#,NL30198605-198805

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main90099-33299iEL3#,NL30198605-198805

85372DGROMMET, REAR WASHER HOSE

main85372-14020iEL3#,NL30198605-198805

85372RHOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)

main90099-33080iEL3#,NL30198605-198805

main90099-33174iEL3#..3DS198605-198805

main90099-33176iEL3#,NL30..5DS198605-198805

main90446-07001iEL3#,NL30198605-198805

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90099-33080iEL3#,NL30198605-198805

8281716210PROTECTOR, WIRING HARNESS, NO.1

main82817-16210

9046304033

main90463-04033

11 parts on this diagram · 1 diagram in section
