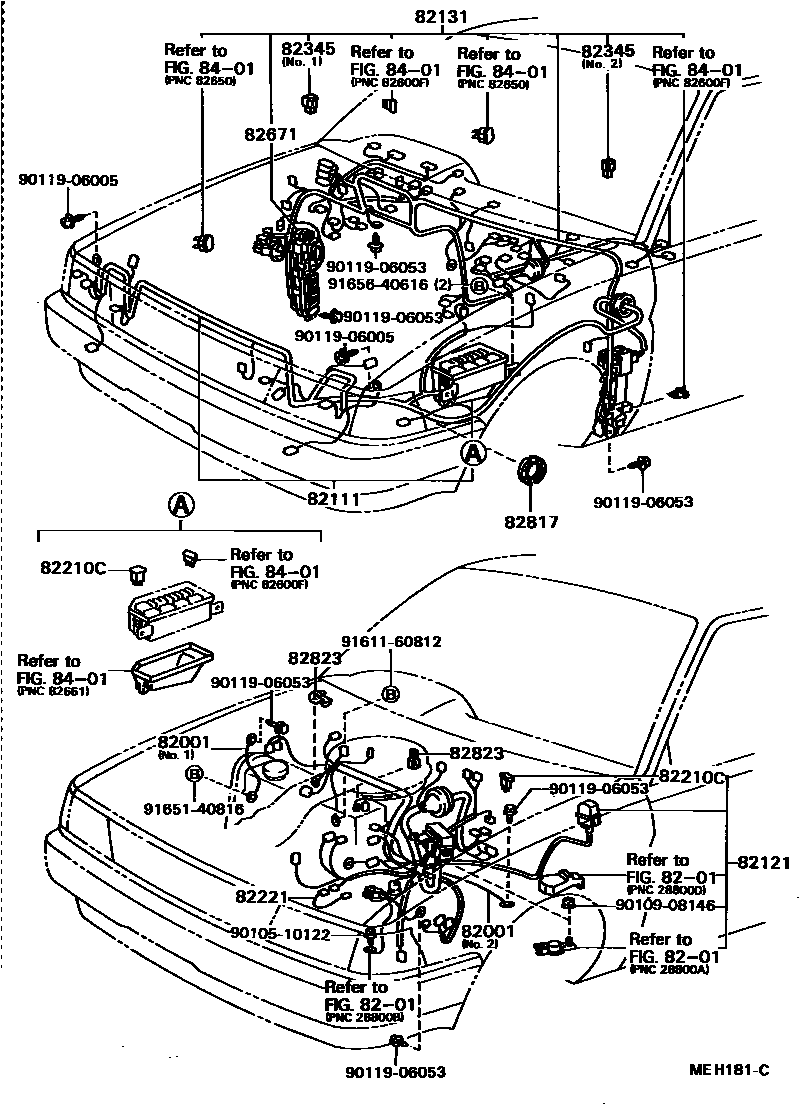

WIRING & CLAMP

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

82001CABLE, BOND, NO.1

main90980-07242iEL3#198605-198805

NO.2

main90980-07267iEL31..TBO198609-198805

NO.3

main90980-07282iEL3#198605-198805

NO.1

8201BATTERY & BATTERY CABLE

→ Go to FIG 82-01

82111WIRE, ENGINE ROOM MAIN

main82111-16420iEL3#..CD,GL,LIM,TX,ZX198605-198805

main82111-16430iEL31..SR198605-198702

main82111-16431iEL31..SR198702-198805

main82111-16440iEL31..TBO198609-198702

main82111-16441iEL31..TBO198702-198805

main82111-16450iNL30..5F198605-198805

main82111-16590iNL30..4FC198609-198805

82121WIRE, ENGINE

main82121-16200iEL3#..MTM198605-198609

main82121-16201iEL3#..MTM..CBR198609-198706

main82121-16202iEL3#..MTM..CBR198706-198805

main82121-16210iEL30..3DS..4F..TX198605-198609

*52

main82121-16211iEL30..3DS..4F..TX198609-198805

*52

main82121-16220iEL3#..ATM198605-198609

main82121-16221iEL3#..ATM198609-198706

main82121-16222iEL3#..ATM198706-198805

main82121-16231iEL31..5F..TBO198609-198801

main82121-16232iEL31..5F..TBO198801-198805

main82121-16241iEL31..4FC..TBO198702-198801

main82121-16242iEL31..4FC..TBO198801-198805

main82121-16250iNL30198605-198609

main82121-16251iNL30..5F198609-198805

main82121-16261iNL30..4FC198609-198805

82131WIRE, COWL

main82131-16630iEL30..4F..(CD,GL,TX)198605-198805

main82131-16640iEL30..3FC198605-198805

main82131-16650iEL30..4F..LIM; EL31..ZX198605-198805

main82131-16660iEL30..LIM198710-198805

AIRCON SUPER LIME

main82131-16670iEL31..SR198605-198805

main82131-16680iEL31..SR198605-198805

W/*PW

main82131-16690iEL31..TBO198609-198702

main82131-16691iEL31..TBO198702-198802

main82131-16692iEL31..TBO198802-198805

main82131-16700iEL31..TBO198609-198702

W/TEMS

main82131-16701iEL31..TBO198702-198802

W/TEMS

main82131-16702iEL31..TBO198802-198805

W/TEMS

main82131-16710iEL31..TBO198609-198702

W/*PW OR W/*PW & TEMS

main82131-16711iEL31..TBO198702-198802

W/*PW OR W/*PW & TEMS

main82131-16712iEL31..TBO198802-198805

W/*PW OR W/*PW & TEMS

main82131-16720iNL30..5F198605-198702

main82131-16721iNL30..5F..(GL,TX)198702-198805

main82131-1G140iNL30..4FC..(GL,TX)198609-198805

main82131-1G160iNL30..ZX198702-198805

82210CFUSIBLE LINK

main90982-08188×4iEL3#,NL30198605-198805

main90982-08190iEL3#198605-198805

main90982-08203×2iNL30198605-198805

82221WIRE, OIL PRESSURE SWITCH

main82221-16040iEL3#..MTM198605-198805

82345DIODE

main82345-12050iEL31..TBO; NL30..4FC198611-198805

NO.1,2P CONNECTER

main82345-20060iEL3#,NL30..GP,LIM,SR,ZX198611-198805

NO.2

main82345-32020×2iEL3#..CBR; EL31..TBO; NL30..4FC198611-198805

NO.1,3P CONNECTER

82671BLOCK, JUNCTION

main82671-16050iEL3#,NL30198605-198805

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-22280iEL3#,NL30198605-198805

82823CAP, TERMINAL, NO.1

main82823-20030iEL3#; NL30..5F198701-198805

STARTER

main82823-20040iEL3#,NL30198605-198608

ALTERNATOR

main82823-20050iEL3#,NL30198608-198805

ALTERNATOR

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9010510122

main90105-10122

9010908146

main90109-08146

9011906005

main90119-06005

9011906053

main90119-06053

9161160812

main91611-60812

9165140816

main91651-40816

9165640616

main91656-40616

19 parts on this diagram · 6 diagrams in section
