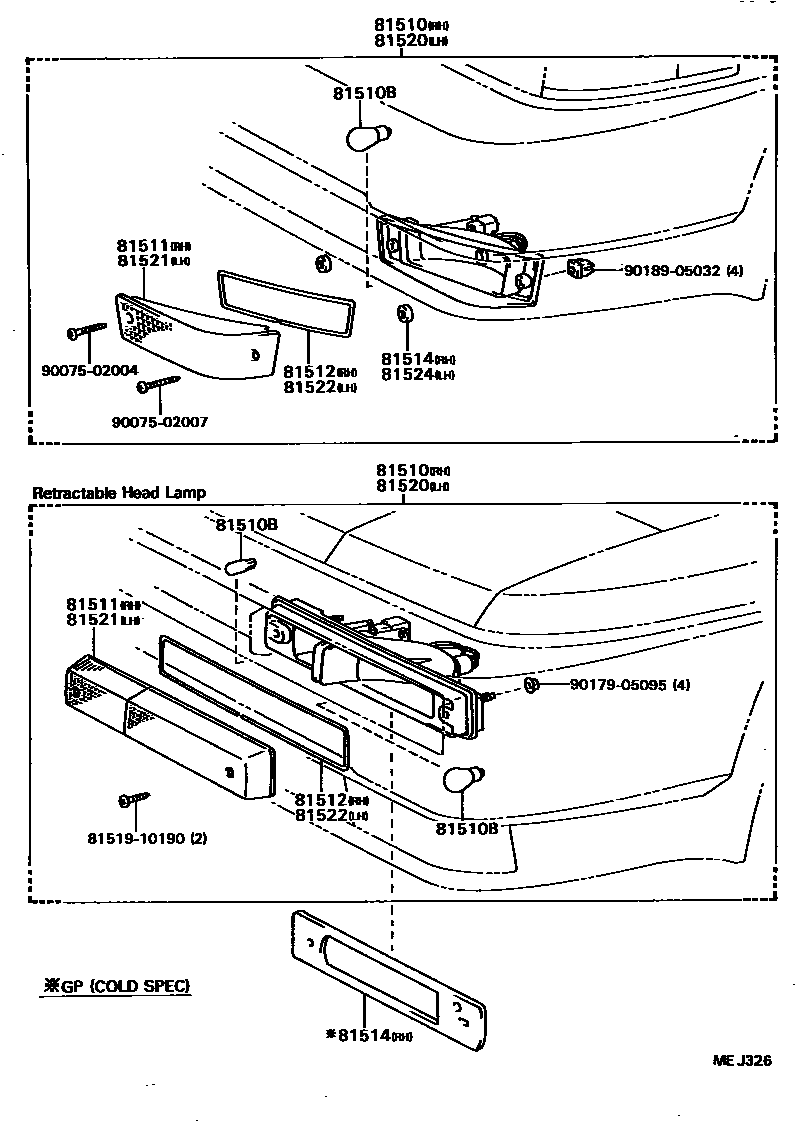

FRONT TURN SIGNAL LAMP

81510LAMP ASSY, FRONT TURN SIGNAL, RH

main81510-80039iEL3#,NL30..CD,GL,LIM,TX,ZX198605-198805

main81510-80040iEL31..GP,SR198605-198805

81510BBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-12010×2iEL31..GP,SR198605-198805

main99132-11230×2iEL3#,NL30198605-198805

81511LENS, FRONT TURN SIGNAL LAMP, RH

main81511-16060iEL3#,NL30..CD,GL,LIM,TX,ZX198605-198805

main81511-16120iEL31..GP,SR198605-198805

81512GASKET, FRONT TURN SIGNAL LAMP LENS, RH

main81512-16060iEL3#,NL30..CD,GL,LIM,TX,ZX198605-198805

main81512-16120iEL31..GP,SR198605-198805

81514GASKET, FRONT TURN SIGNAL LAMP BODY, RH

main81514-16130iEL31..TBO198609-198805

COLD SPEC

main81514-20330×2iEL3#,NL30..CD,GL,LIM,TX,ZX198605-198805

81520LAMP ASSY, FRONT TURN SIGNAL, LH

main81520-80039iEL3#,NL30..CD,GL,LIM,TX,ZX198605-198805

main81520-80040iEL31..GP,SR198605-198805

81521LENS, FRONT TURN SIGNAL LAMP, LH

main81521-16060iEL3#,NL30..CD,GL,LIM,TX,ZX198605-198805

main81521-16120iEL31..GP,SR198605-198805

81522GASKET, FRONT TURN SIGNAL LAMP LENS, LH

main81512-16060iEL3#,NL30..CD,GL,LIM,TX,ZX198605-198805

main81512-16120iEL31..GP,SR198605-198805

81524GASKET, FRONT TURN SIGNAL LAMP BODY, LH

main81514-20330×2iEL3#,NL30..CD,GL,LIM,TX,ZX198605-198805

8151910190BRACKET, FRONT TURN SIGNAL LAMP, RH

main81519-10190

9007502004

main90075-02004

9007502007

main90075-02007

9017905095

main90179-05095

9018905032

main90189-05032

14 parts on this diagram · 1 diagram in section
