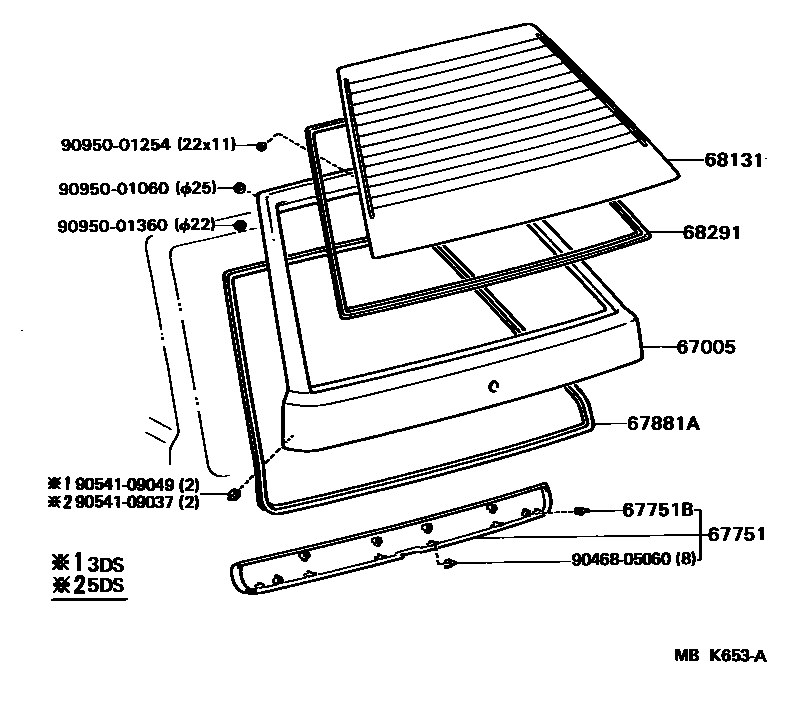

BACK DOOR PANEL & GLASS

67005PANEL SUB-ASSY, BACK DOOR

main67005-16240iEL30..3DS..(CD,TX)198605-198805

main67005-16260iEL3#..3DS198605-198805

W/RR WIPER

main67005-16280iEL31..GP,SR198605-198805

W/RR WIPER & RR SPOILER

main67005-16290iEL30,NL30..5DS..TX198605-198805

main67005-16300iEL3#,NL30..5DS198605-198805

W/RR WIPER

67751BOARD, BACK DOOR TRIM

main67751-16050-01iEL3#..3DS..(GL,GP,LIM,SR,TX,ZX)198605-198805

BLACK,BLACK,TRIM2#

main67751-16050-04iEL3#..3DS198605-198805

BLUE,BLUE,TRIM8#

main67751-16050-05iEL3#..3DS..(GL,LIM,TX,ZX)198605-198805

BEIGE,DARK BEIGE,TRIM4#

main67751-16070-01iEL3#,NL30..5DS198605-198805

BLACK,BLACK,TRIM2#

main67751-16070-04iEL3#,NL30..5DS198605-198805

BLUE,BLUE,TRIM8#

main67751-16070-05iEL3#,NL30..5DS198605-198805

BEIGE,DARK BEIGE,TRIM4#

67751BRETAINER(FOR BACK DOOR TRIM BOARD)

main67771-16070×6iEL3#..3DS198605-198805

main67771-32010×4iEL3#,NL30..5DS198605-198805

67881AWEATHERSTRIP, BACK DOOR

main67881-16060iEL3#..3DS198605-198805

main67881-16080iEL3#,NL30..5DS198605-198802

main67881-16081iEL3#,NL30..5DS198802-198805

68131GLASS, BACK DOOR

main68131-16210iEL30..CD198605-198805

main68131-16230iEL30..3DS..TX198611-198805

main68131-16250iEL30..3DS..TX198605-198805

main68131-16260iEL3#..3DS..(GL,GP,LIM,SR,TX,ZX)198605-198805

main68131-16290iEL3#,NL30..5DS198605-198805

main68131-16300iEL30,NL30..5DS..TX198605-198805

main68131-16370iEL30..5DS..TX198611-198805

68291WEATHERSTRIP, BACK DOOR GLASS

main68291-16030iEL3#..3DS198605-198805

main68291-16040iEL3#,NL30..5DS198605-198805

9046805060

main90468-05060

9054109037

main90541-09037

9054109049

main90541-09049

9095001060

main90950-01060

9095001254

main90950-01254

9095001360

main90950-01360

12 parts on this diagram · 1 diagram in section
